MX-GT91R
1-12
Prior to performing the following procedure, remove
the metal cover, the CD changer mechanism
assembly and the rear panel.
Remove the tie band attaching the wire to the
voltage board.
Disconnect the wires from connector CN218 on the
power supply board.
Disconnect the wires from connector CN220 on the
transformer board.
Disconnect the wire from connector CN204 on the
regulator board.
Remove the four screws K attaching the transformer
assembly.
1.
2.
3.
4.
5.

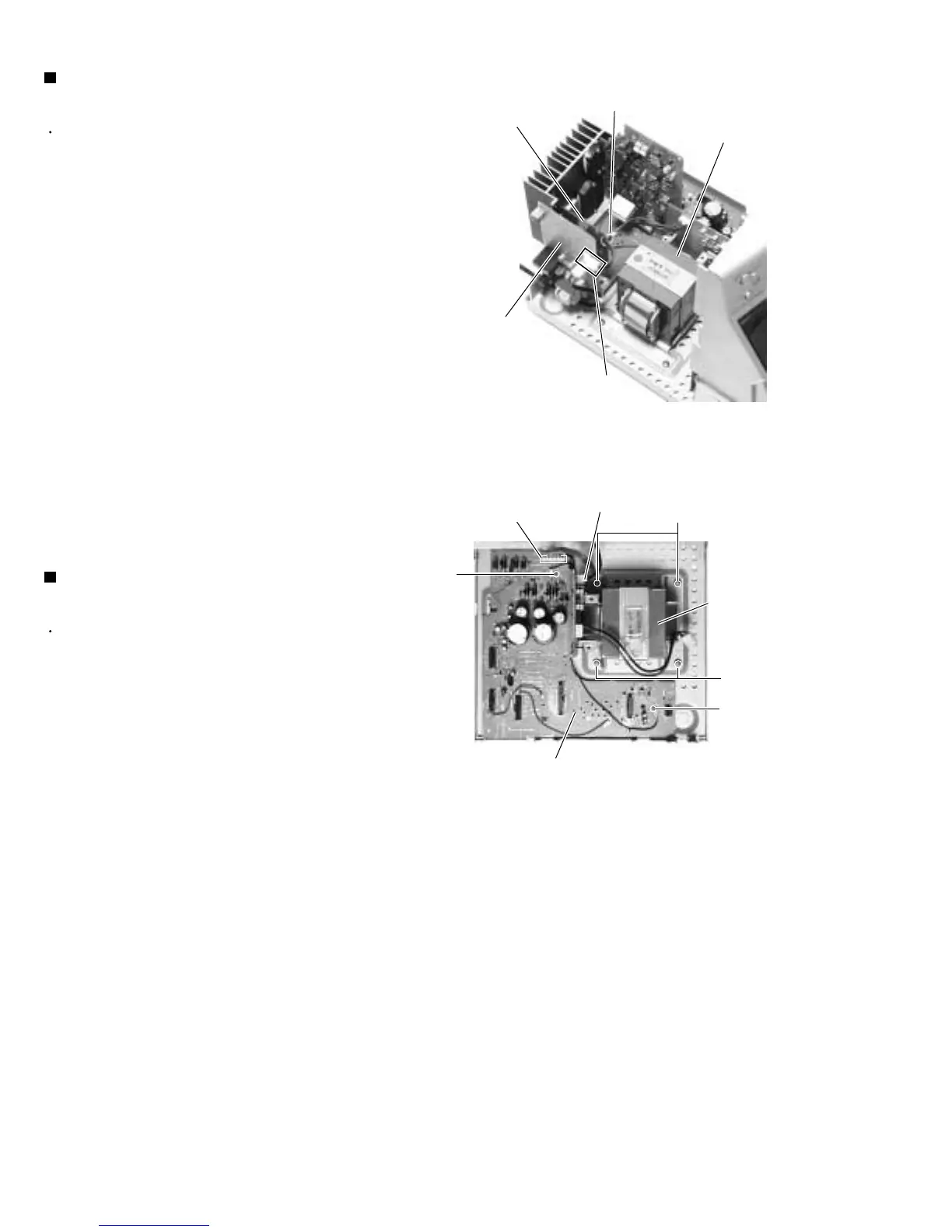

Removing the power transformer
assembly (See Fig.22 and 23)
Prior to performing the following procedure, remove
metal cover, CD changer mechanism assembly, rear
panel, tuner board, main board, amplifier board,
voltage board and speaker board.
Disconnect the wire from connector CN204 on the
regulator board.
Remove the two screws L attaching the regulator
board.
1.
2.
Removing the regulator board
(See Fig.23)
Fig.22
Fig.23
Power transformer
assembly
CN204
Transformer board
CN220
K
K
L
L
Regulator board
Tie band
Voltage board
CN218
Power transformer
assembly
Power supply
board
