JVC MX-GT91R User Manual

MX-GT91R
1-14
Prior to performing the following procedure, remove
the display system control board.
Pull out the preset knob on the front panel.
Remove the five screws Q attaching the preset /
tuning switch board.
1.
2.
Removing the preset / tuning switch
board (See Fig.29 and 30)
Prior to performing the following procedure, remove
the display system control board and the preset /
tuning switch board.
Pull out the volume knob on the front panel and
remove the nut. Pull out the sound mode knob and
the subwoofer level knob toward the front.
Remove the thirteen screws R attaching the
operation switch board.
Remove the wire clamp.
Remove the screw R' attaching the earth terminal
extending from the switch board.
Release each tab of the seven joints g retaining the
operation switch board.
1.
2.
3.
4.
5.
Removing the operation switch board
(See Fig.30 and 31)

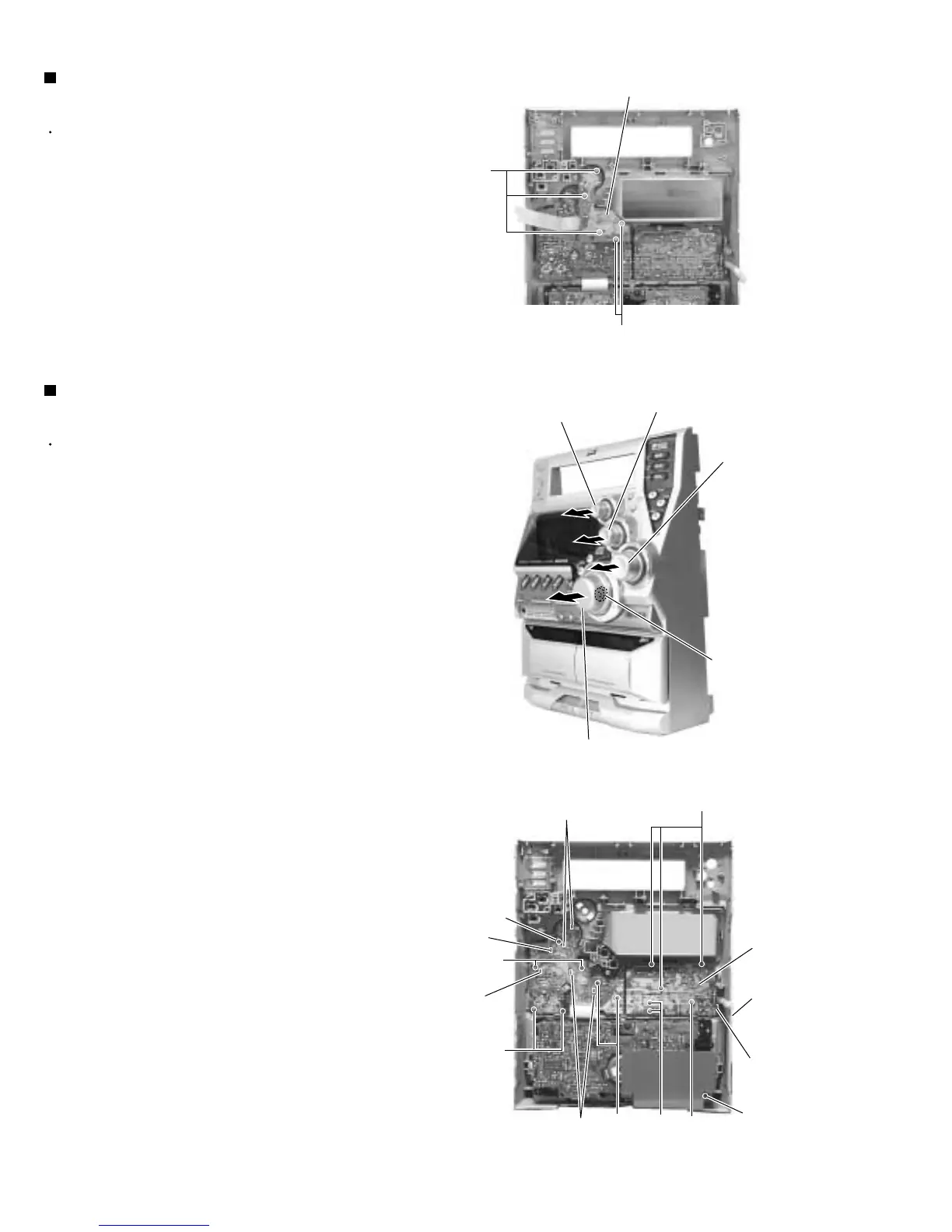

Fig.29
Fig.30
Fig.31
Preset / tuning switch board
Q
Q
Volume knob
Nut
Subwoofer
level knob
Sound mode knob
Preset knob
R
R
R'
R
R
R
R
R
Joint g
Joint g
Joint g
Joints g
Joints g
Operation
switch board
Wire clamp
