MX-J30/MX-J330/MX-J35R
A Metal cover
Disassembly method
< Main body >

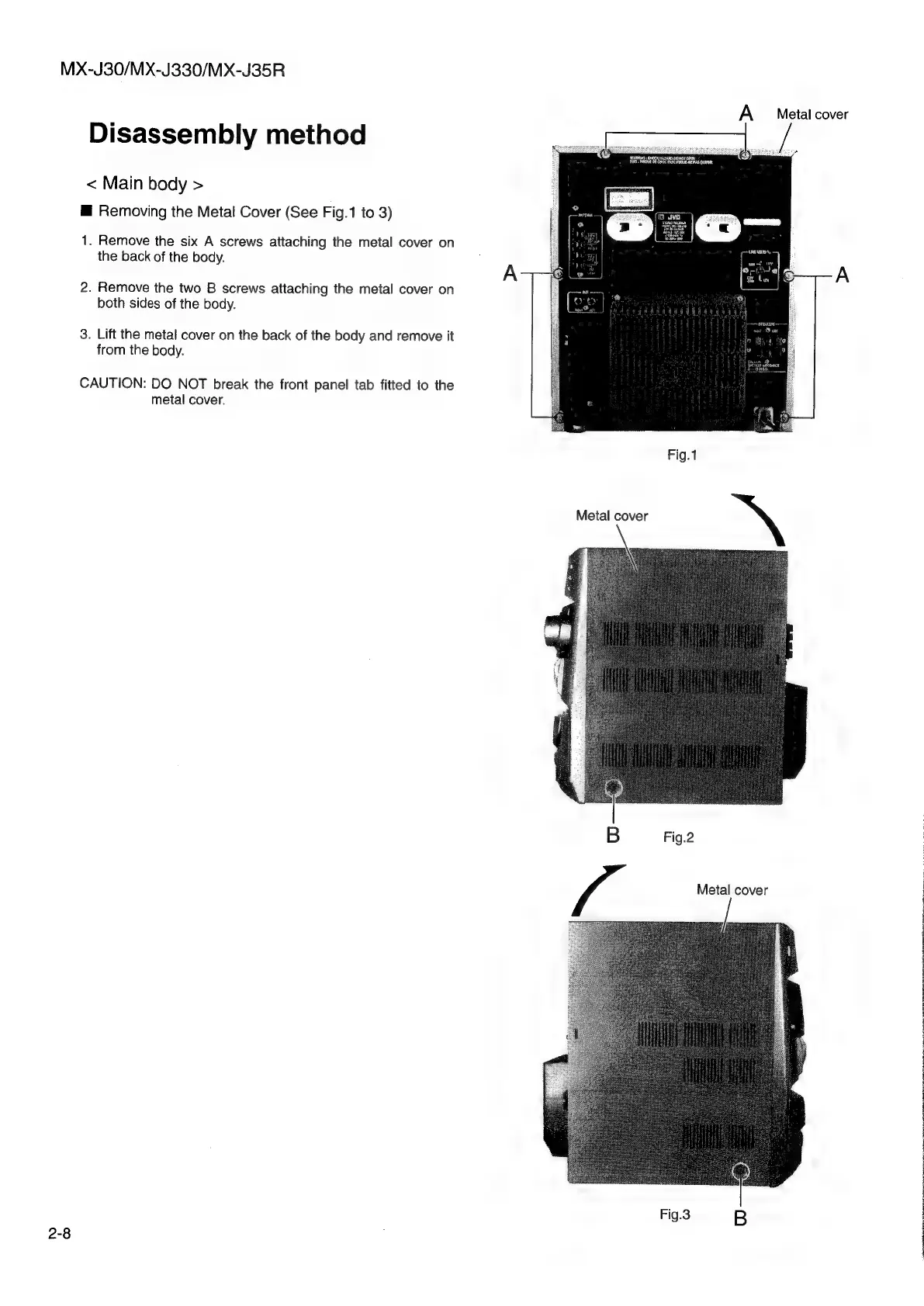

@ Removing the Metal Cover (See Fig.1 to 3)
1. Remove the six A screws attaching the metal cover on
the back of the body.
2. Remove the two B screws attaching the metal cover on
both sides of the body.
3. Lift the metal cover on the back of the body and remove it
from the body.
CAUTION: DO NOT break the front panel tab fitted to the
metal cover.
Fig.1
Metal cover
B Fig.2
Metal cover
Fig.3 B
