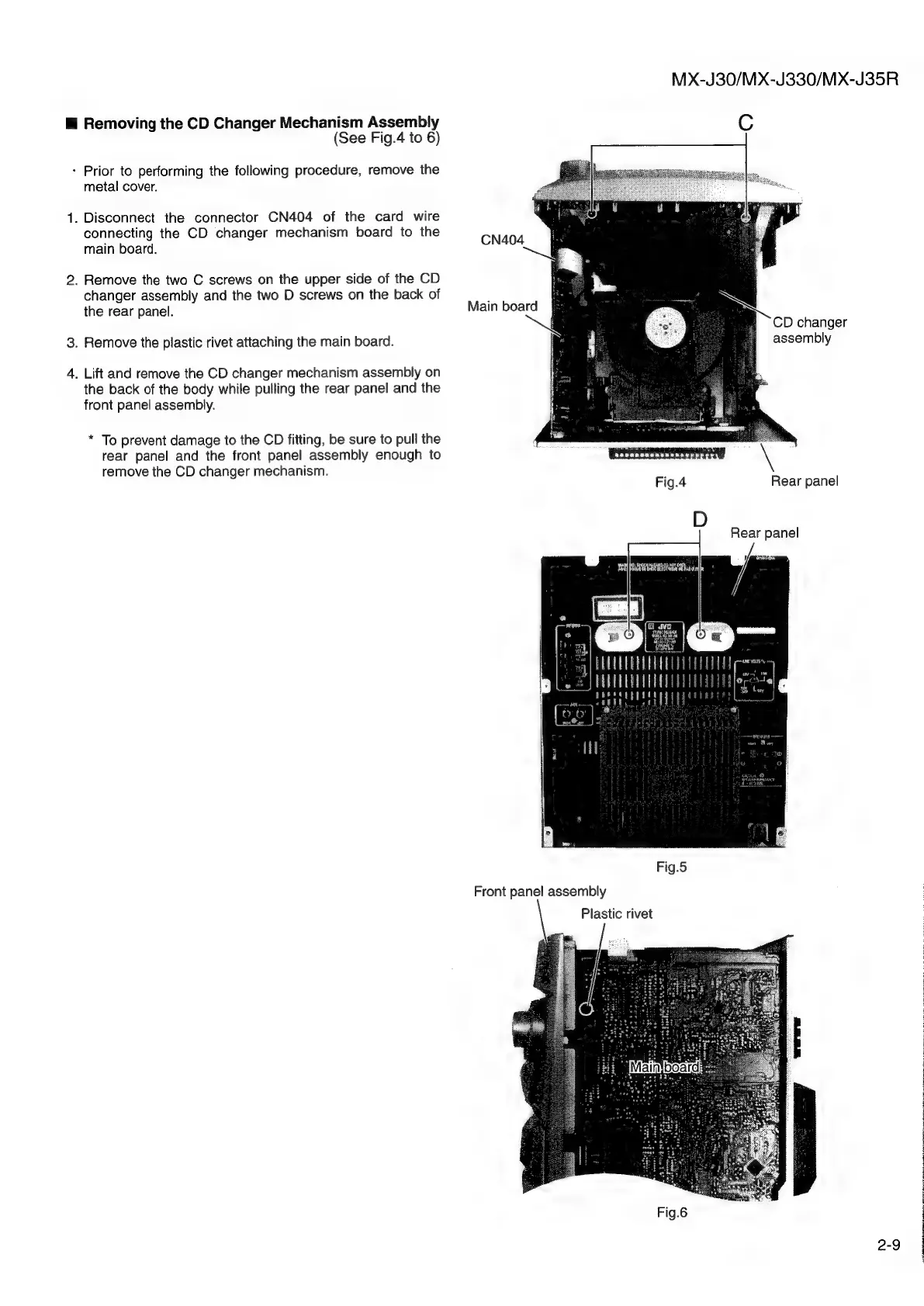

@ Removing the CD Changer Mechanism Assembly
(See Fig.4 to 6)
: Prior to performing the following procedure, remove the
metal cover.
1. Disconnect the connector CN404 of the card wire
connecting the CD changer mechanism board to the
main board.
2. Remove the two C screws on the upper side of the CD
changer assembly and the two D screws on the back of
the rear panel.
3. Remove the plastic rivet attaching the main board.
4. Lift and remove the CD changer mechanism assembly on
the back of the body while pulling the rear panel and the
front panel assembly.
* To prevent damage to the CD fitting, be sure to pull the
rear panel and the front panel assembly enough to
remove the CD changer mechanism.
MX-J30/MX-J330/MX-J35R
CN404
Main board '
“o CD changer
“—S assembly
————
Fig.4 Rear panel
Rear panel
FELLER TTT
HETTEE HT
Fig.5
Front panel assembly
Plastic rivet
Mainiboard
Fig.6
2-9
