MX-J30/MX-J330/MX-J35R
< Front Assembly >

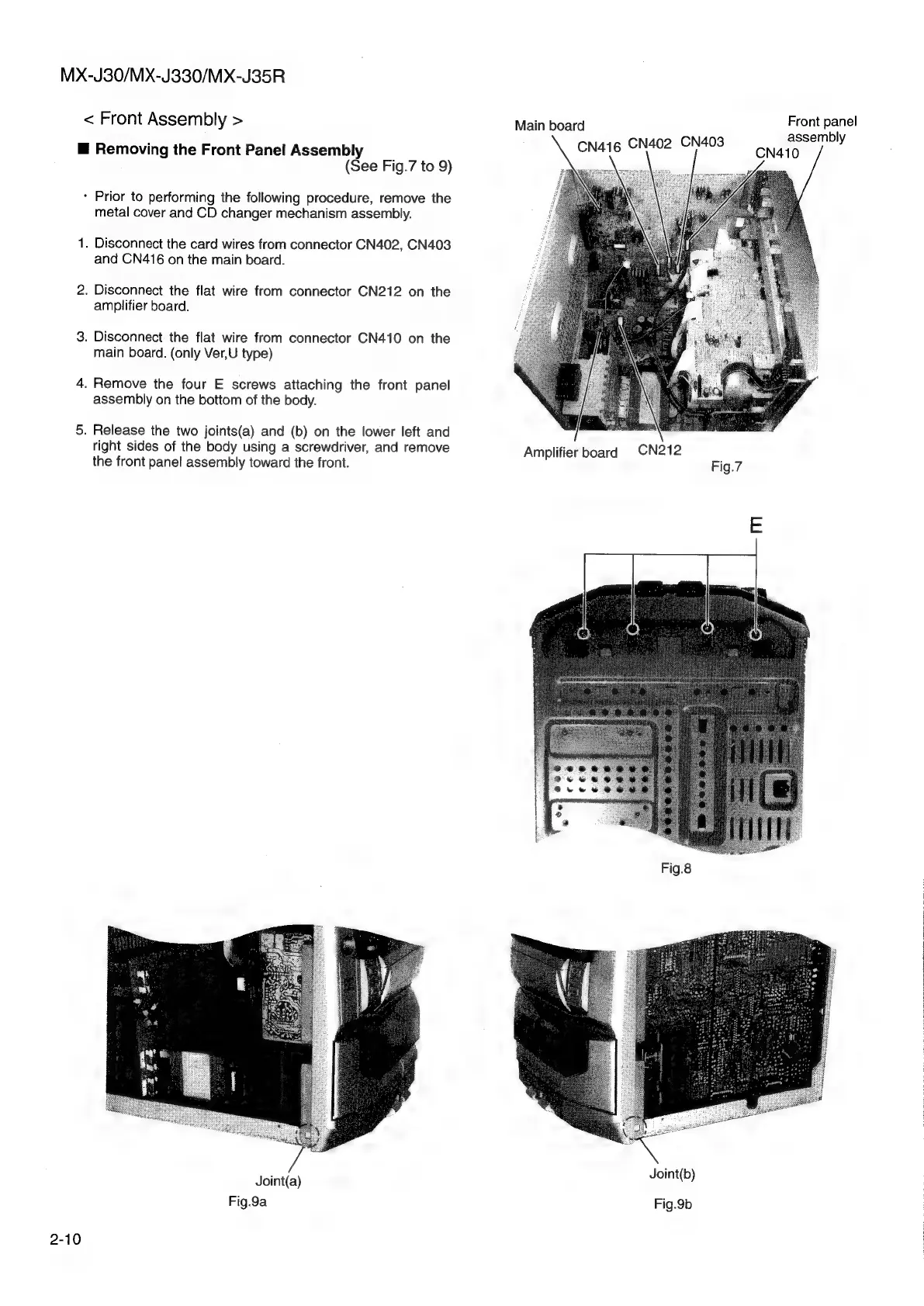

@ Removing the Front Panel Assembly
(See Fig.7 to 9)
* Prior to performing the following procedure, remove the
2-10
metal cover and CD changer mechanism assembly.
. Disconnect the card wires from connector CN402, CN403
and CN416 on the main board.
. Disconnect the flat wire from connector CN212 on the
amplifier board.
. Disconnect the flat wire from connector CN410 on the
main board. (only Ver,U type)
. Remove the four E screws attaching the front panel
assembly on the bottom of the body.
. Release the two joints(a) and (b) on the lower left and
right sides of the body using a screwdriver, and remove
the front panel assembly toward the front.
Joint(a)
Fig.9a
Main board
CN416 CN402 CN403
Amplifier board
CN212
Front panel
assembly
CN410
Fig.7
Fig.8
Joint(b)
Fig.9b
|
!
|
