m@

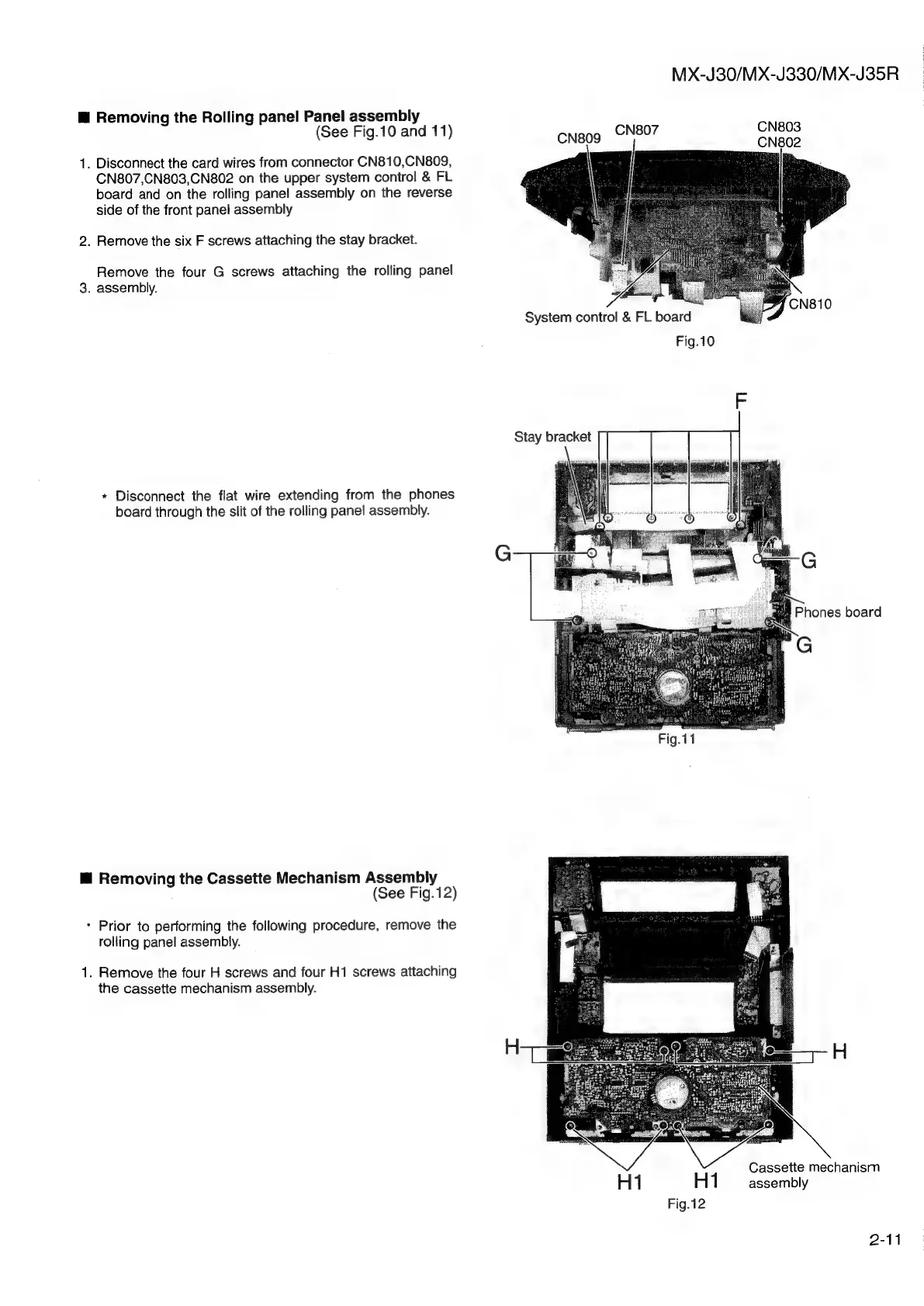

Removing
the
Rolling
panel
Panel
assembly
(See
Fig.10
and
11)
1.
Disconnect
the
card
wires
from
connector
CN810,CN809,
CN807,CN803,CN802
on
the
upper
system
control
&
FL
board
and
on
the
rolling
panel
assembly
on
the
reverse
side
of
the
front
panel
assembly
2.
Remove
the
six
F
screws
attaching
the
stay
bracket.
Remove
the
four
G
screws
attaching
the
rolling
panel
3.
assembly.
*
Disconnect
the
flat
wire
extending
from
the
phones
board
through
the
slit
of
the
rolling
pane!
assembly.
@
Removing
the
Cassette
Mechanism
Assembly
(See
Fig.12)
*
Prior
to
performing
the
following
procedure,
remove
the
rolling
panel
assembly.
1.
Remove
the
four
H
screws
and
four
H1
screws
attaching
the
cassette
mechanism
assembly.
MX-J30/MX-J330/MX-J35R
CN803
CN802
System
control
&
FL
board
Fig.10
Stay
bracket
Cassette
mechanism
H1
H1
assembly
Fig.12
2-11
