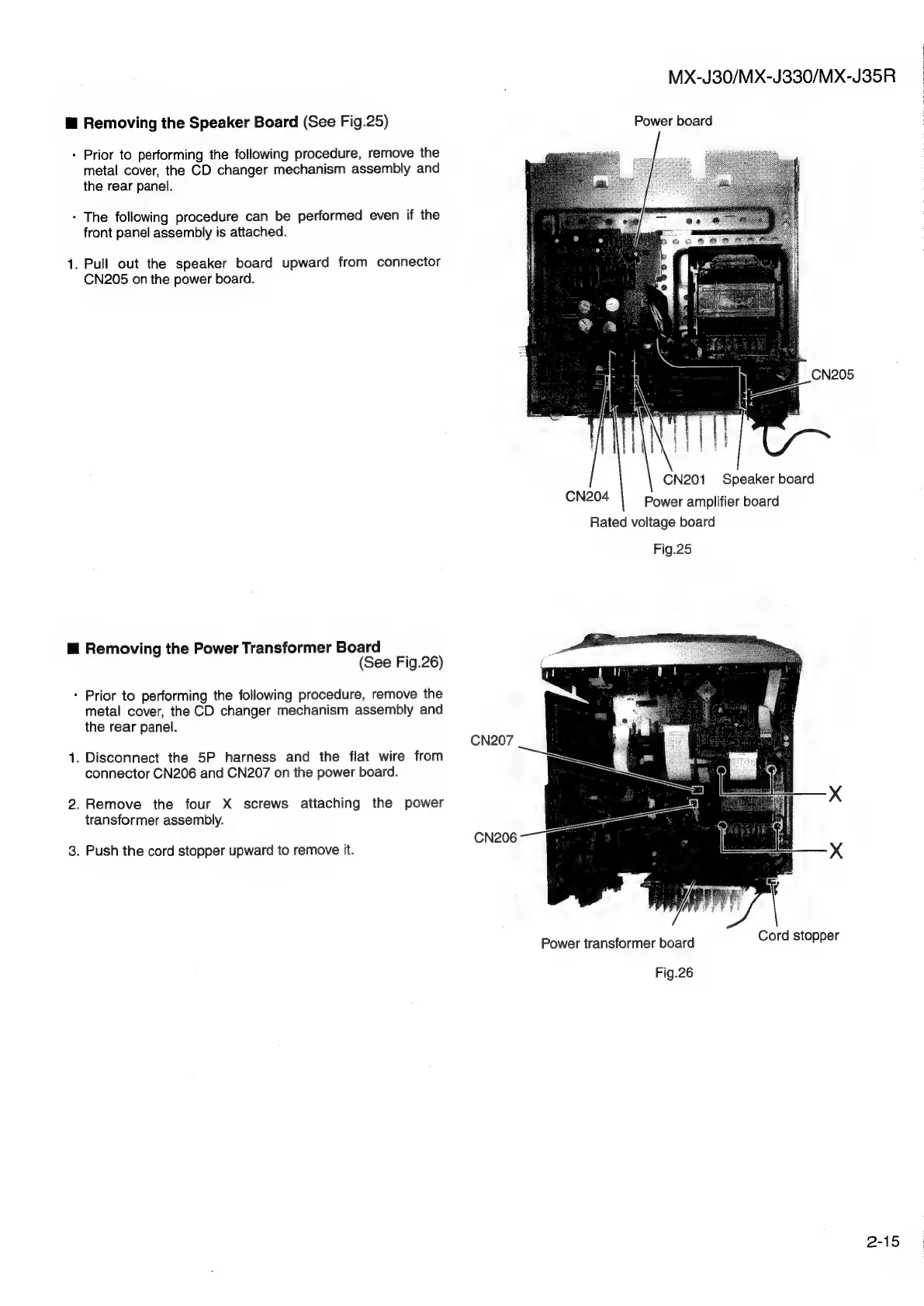

@ Removing the Speaker Board (See Fig.25)
- Prior to performing the following procedure, remove the
metal cover, the CD changer mechanism assembly and
the rear panel.
+ The following procedure can be performed even if the
front panel assembly is attached.
1. Pull out the speaker board upward from connector
CN205 on the power board.
m@ Removing the Power Transformer Board
(See Fig.26)
: Prior to performing the following procedure, remove the
metal cover, the CD changer mechanism assembly and
the rear panel.
1. Disconnect the 5P harness and the flat wire from
connector CN206 and CN207 on the power board.
2. Remove the four X screws attaching the power
transformer assembly.
3. Push the cord stopper upward to remove it.
MX-J30/MX-J330/MX-J35R
Power board
CN205
CN201 Speaker board
CN204 Power amplifier board
Rated voltage board
Fig.25
CN207
X
CN206
X
Power transformer board Cord stopper
Fig.26
