MX-J30/MX-J330/MX-J35R
Joint bracket B
2-16

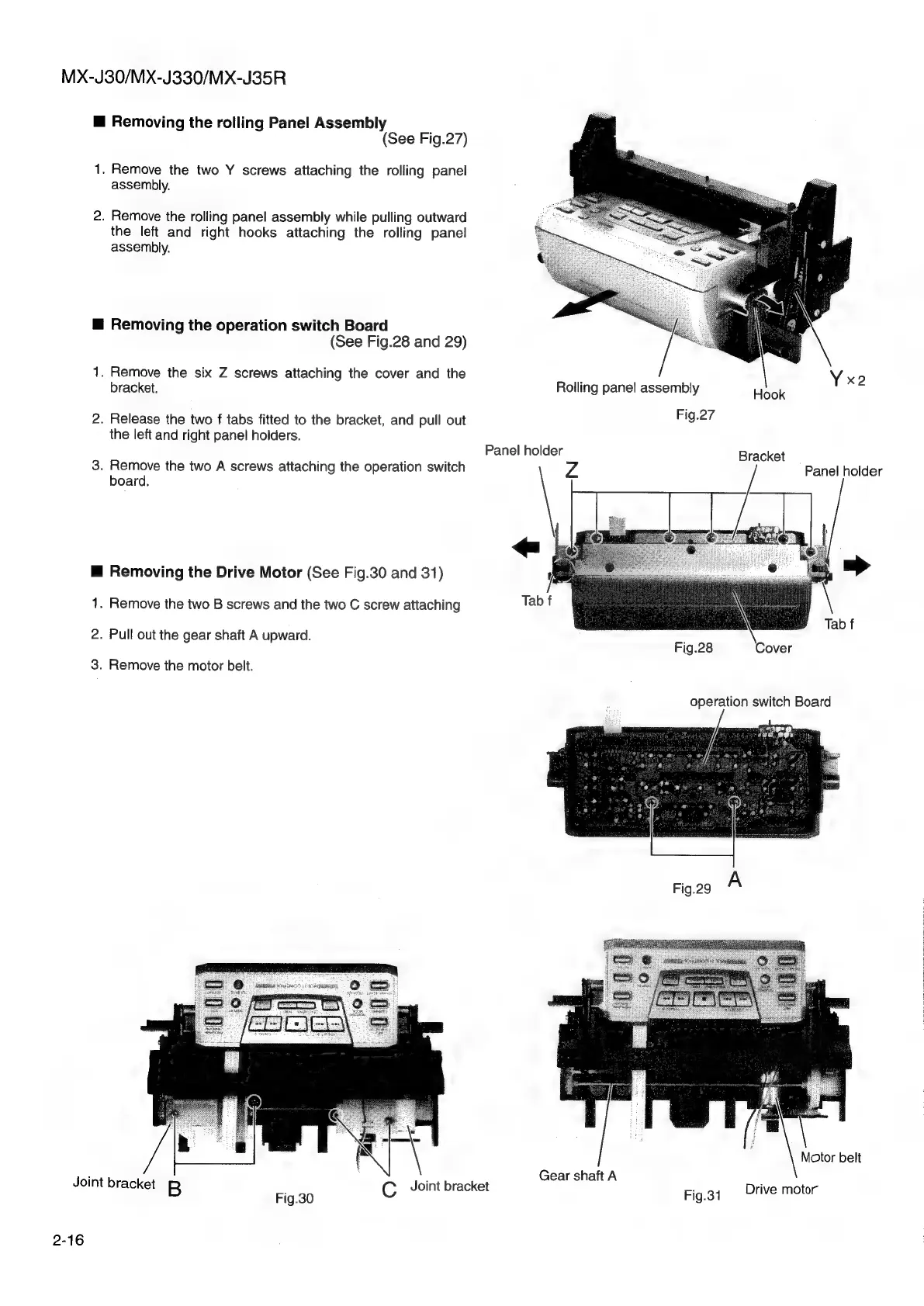

m@ Removing the rolling Panel Assembly
(See Fig.27)
1. Remove the two Y screws attaching the rolling panel
assembly.
2. Remove the rolling panel assembly while pulling outward
the left and right hooks attaching the rolling panel
assembly.
H Removing the operation switch Board
(See Fig.28 and 29)
1. Remove the six Z screws attaching the cover and the
bracket.
2. Release the two f tabs fitted to the bracket, and pull out
the left and right panel holders.
Rolling panel assembly
Fig.27
Panel holder
3. Remove the two A screws attaching the operation switch
board.
@ Removing the Drive Motor (See Fig.30 and 31)
1. Remove the two B screws and the two C screw attaching
2. Pull out the gear shaft A upward.
3. Remove the motor belt.
& Joint bracket
Fig.30
Z
Gear shaft A
Fig.28
Fig.31
operation switch Board
Y x2
Hook
Bracket
Panel holder
Cover
Motor belt
Drive motor
