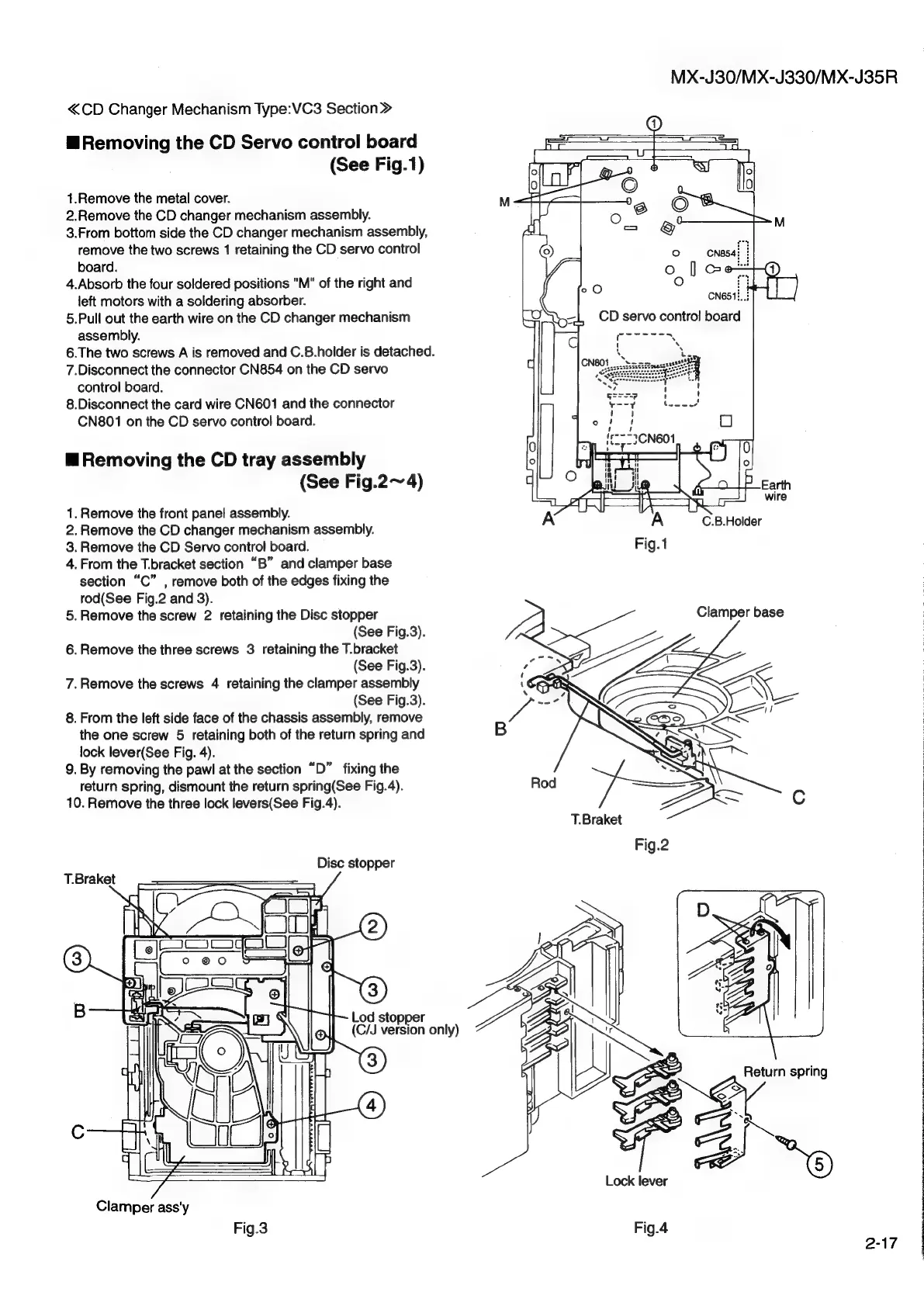

«CD Changer Mechanism Type:VC3 Section>
™@Removing the CD Servo control board
(See Fig.1)
1.Remove the metal cover.
2.Remove the CD changer mechanism assembly.
3.From bottom side the CD changer mechanism assembly,
remove the two screws 1 retaining the CD servo control
board.
4.Absorb the four soldered positions "M" of the right and
left motors with a soldering absorber.
5.Pull out the earth wire on the CD changer mechanism
assembly.
6.The two screws A is removed and C.B.holder is detached.
7.Disconnect the connector CN854 on the CD servo
control board.
8.Disconnect the card wire CN601 and the connector
CN801 on the CD servo control board.
lm Removing the CD tray assembly
(See Fig.2~ 4)
1. Remove the front panel assembly.
2. Remove the CD changer mechanism assembly.
3. Remove the CD Servo control board.
4. From the T.bracket section “B” and clamper base
section “C” , remove both of the edges fixing the
rod(See Fig.2 and 3).
5. Remove the screw 2 retaining the Disc stopper
(See Fig.3).
6. Remove the three screws 3 retaining the T.bracket
(See Fig.3).
7.Remove the screws 4 retaining the clamper assembly
(See Fig.3).
8. From the left side face of the chassis assembly, remove
the one screw 5 retaining both of the return spring and
lock lever(See Fig. 4).
9. By removing the pawl at the section “D” fixing the
return spring, dismount the return spring(See Fig.4).
10. Remove the three lock levers(See Fig.4).
Disc stopper
T.Braket
MX-J30/MX-J330/MX-J35R
Lock lever
Fig.4
