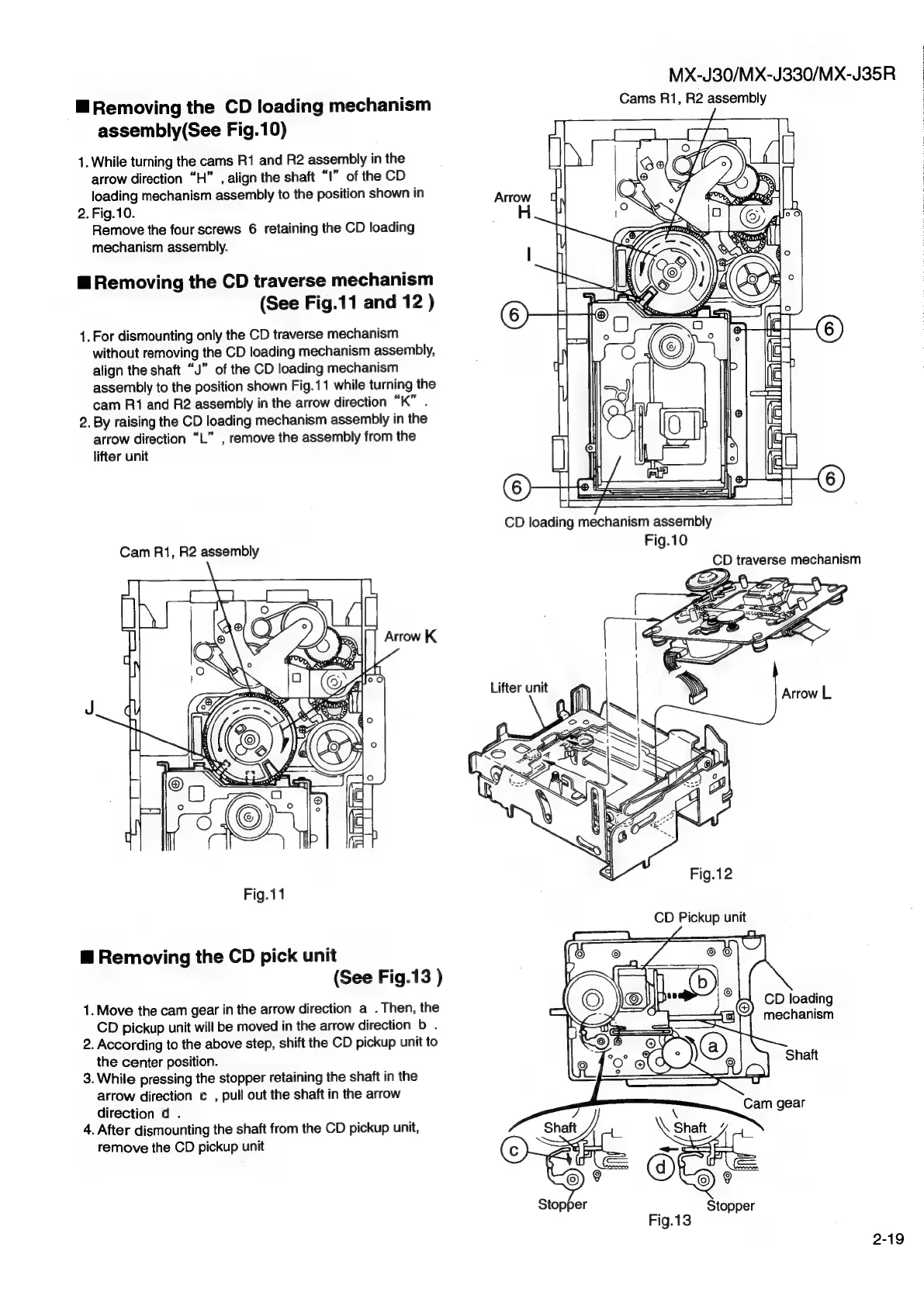

MX-J30/MX-J330/MX-J35R
™
Removing
the
CD
loading
mechanism
Cams
R1,
R2
assembly
assembly(See
Fig.10)
1.
While
turning
the
cams
R1
and
R2
assembly
in
the
arrow
direction
“H”
,
align
the
shaft
“I!”
of
the
CD
loading
mechanism
assembly
to
the
position
shown
in
2. Fig.10.
Remove
the
four
screws
6
retaining
the
CD
loading
mechanism
assembly.
&
Removing
the
CD
traverse
mechanism
(See
Fig.11
and
12
)
.
For
dismounting
only
the
CD
traverse
mechanism
without
removing
the
CD
loading
mechanism
assembly,
align
the
shaft
“J”
of
the
CD
loading
mechanism
assembly
to
the
position
shown
Fig.11
while
turning
the
cam
R1
and
R2
assembly
in
the
arrow
direction
“K”
.
2.
By
raising
the
CD
loading
mechanism
assembly
in
the
arrow
direction
“L”
,
remove
the
assembly
from
the
lifter unit
_—
CD loading mechanism assembly
Cam
R1,
R2
assembly
Fig.10
CD traverse mechanism
@ Removing the CD pick unit
(See Fig.13 )
1.
Move
the
cam
gear
in
the
arrow
direction
a
.
Then,
the
CD
pickup
unit
will
be
moved
in
the
arrow
direction
b
.
2. According to the above step, shift the CD pickup unit to
the center position.
3. While pressing the stopper retaining the shaft in the
arrow direction c_ , pull out the shaft in the arrow
direction d .
4. After dismounting the shaft from the CD pickup unit,
remove the CD pickup unit
CD loading
mechanism
Stopper Stopper
Fig.13
2-19
