MX-J30/MX-J330/MX-J35R

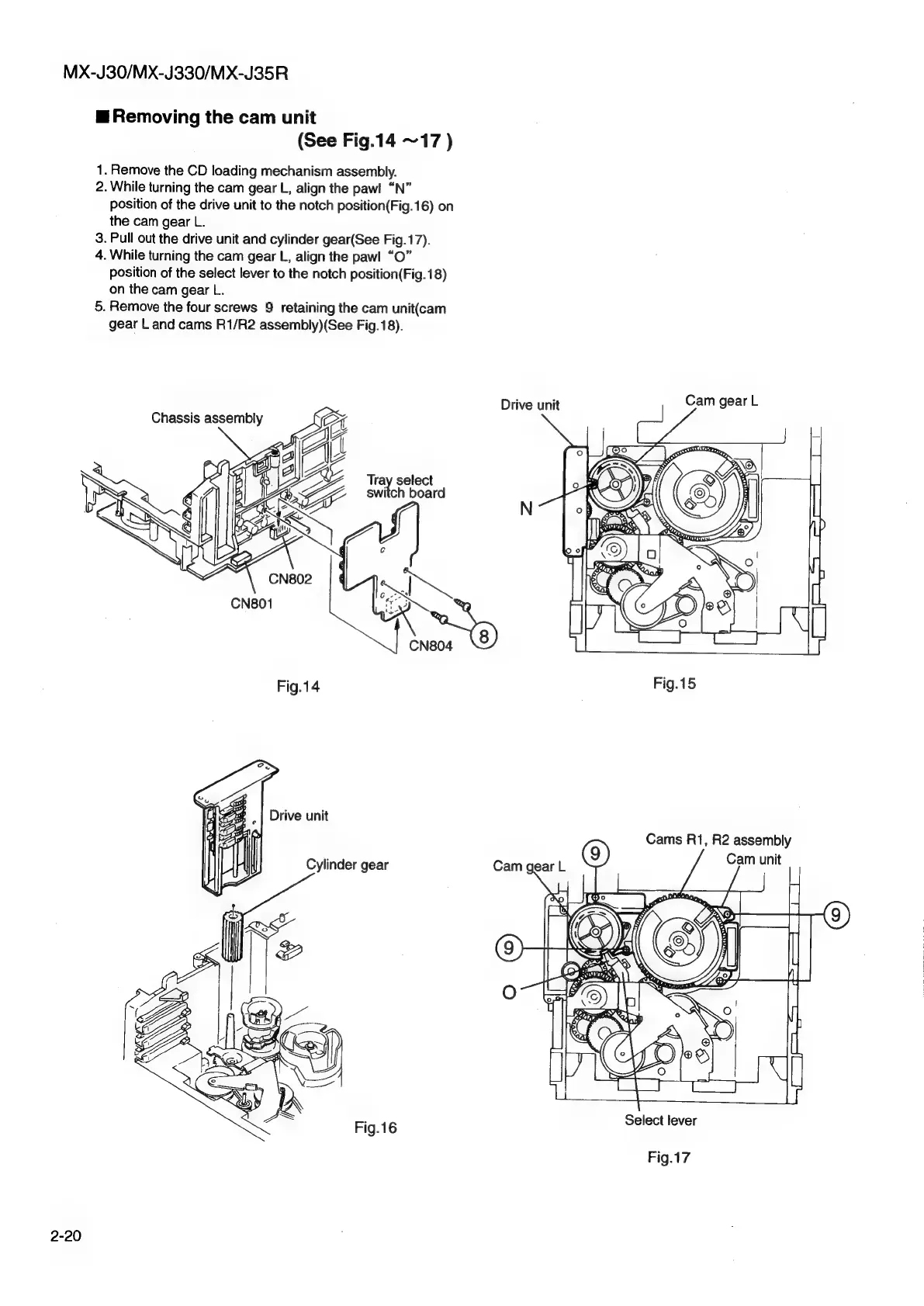

m Removing the cam unit
(See Fig.14 ~17 )
1. Remove the CD loading mechanism assembly.
2. While turning the cam gear L, align the pawl “N”
position of the drive unit to the notch position(Fig.16) on
the cam gear L.
3. Pull out the drive unit and cylinder gear(See Fig.17).
4. While turning the cam gear L, align the pawl “O”
position of the select lever to the notch position(Fig.18)
on the cam gear L.
5. Remove the four screws 9 retaining the cam unit(cam
gear L and cams R1/R2 assembly)(See Fig. 18).
Tray select
switch board
Fig.14
Drive unit
Cylinder gear
Fig.16
2-20
Drive
unit
Cam
gear
L
Cams R1, R2 assembly
Cam unit
Select lever
Fig.17
