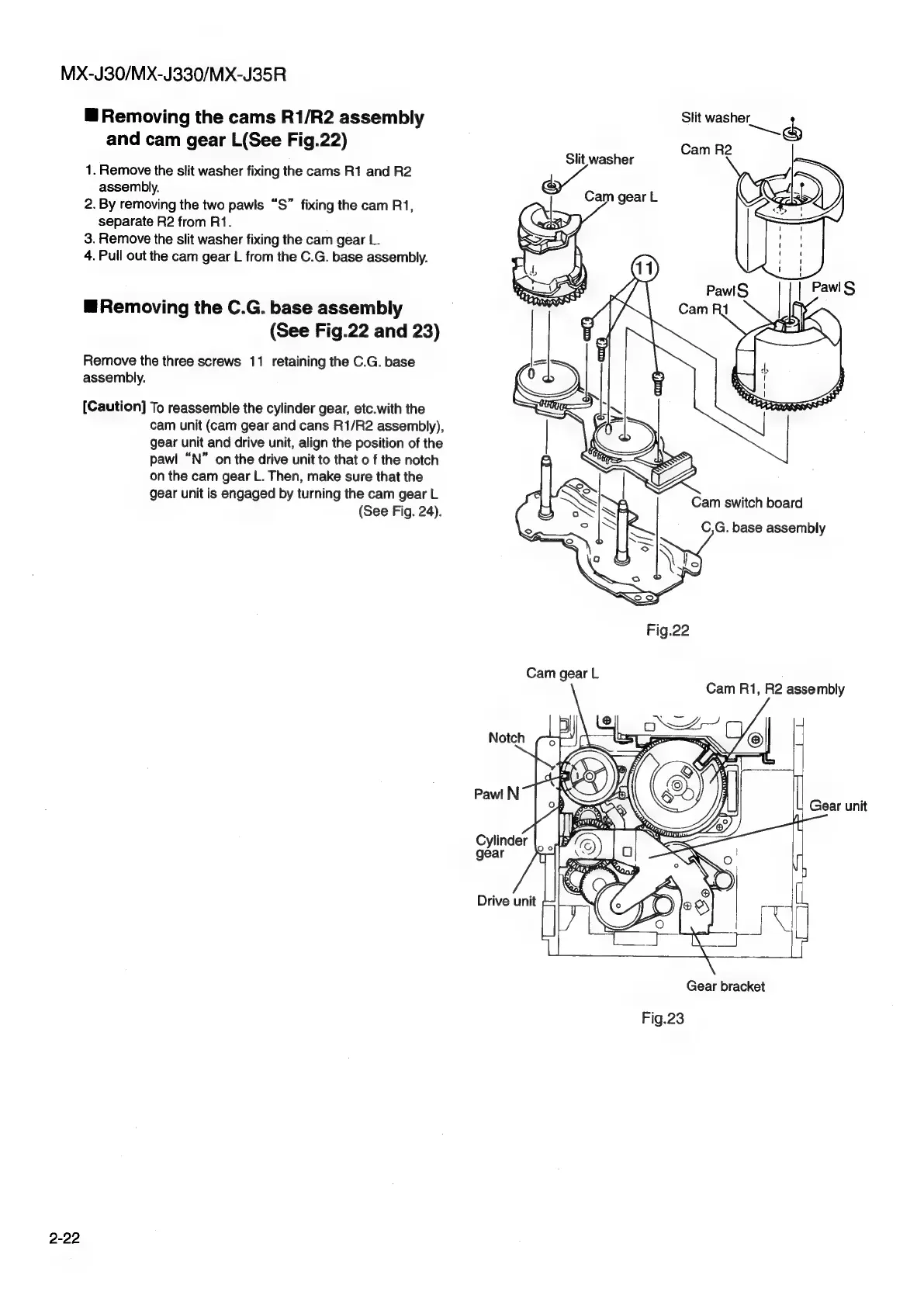

@ Removing the cams R1/R2 assembly Slitwasher_ ss
and cam gear L(See Fig.22)
1. Remove the slit washer fixing the cams R1 and R2
assembly.
2. By removing the two pawis “S” fixing the cam R1,
separate R2 from R1.
3. Remove the slit washer fixing the cam gear L.
4. Pull out the cam gear L from the C.G. base assembly.
mRemoving the C.G. base assembly
(See Fig.22 and 23)
Remove the three screws 11 retaining the C.G. base
assembly.
[Caution] To reassemble the cylinder gear, etc.with the
cam unit (cam gear and cans R1/R2 assembly),
gear unit and drive unit, align the position of the
pawl “N” on the drive unit to that o f the notch
on the cam gear L. Then, make sure that the
gear unit is engaged by turning the cam gear L
(See Fig. 24).
Cam switch board
C,G. base assembly
Gear unit
QUVtarg NON
Cylinder
gear
Drive unit
Gear bracket
Fig.23
