Removing
the
Capstan
Motor
(See
Fig
8)
C

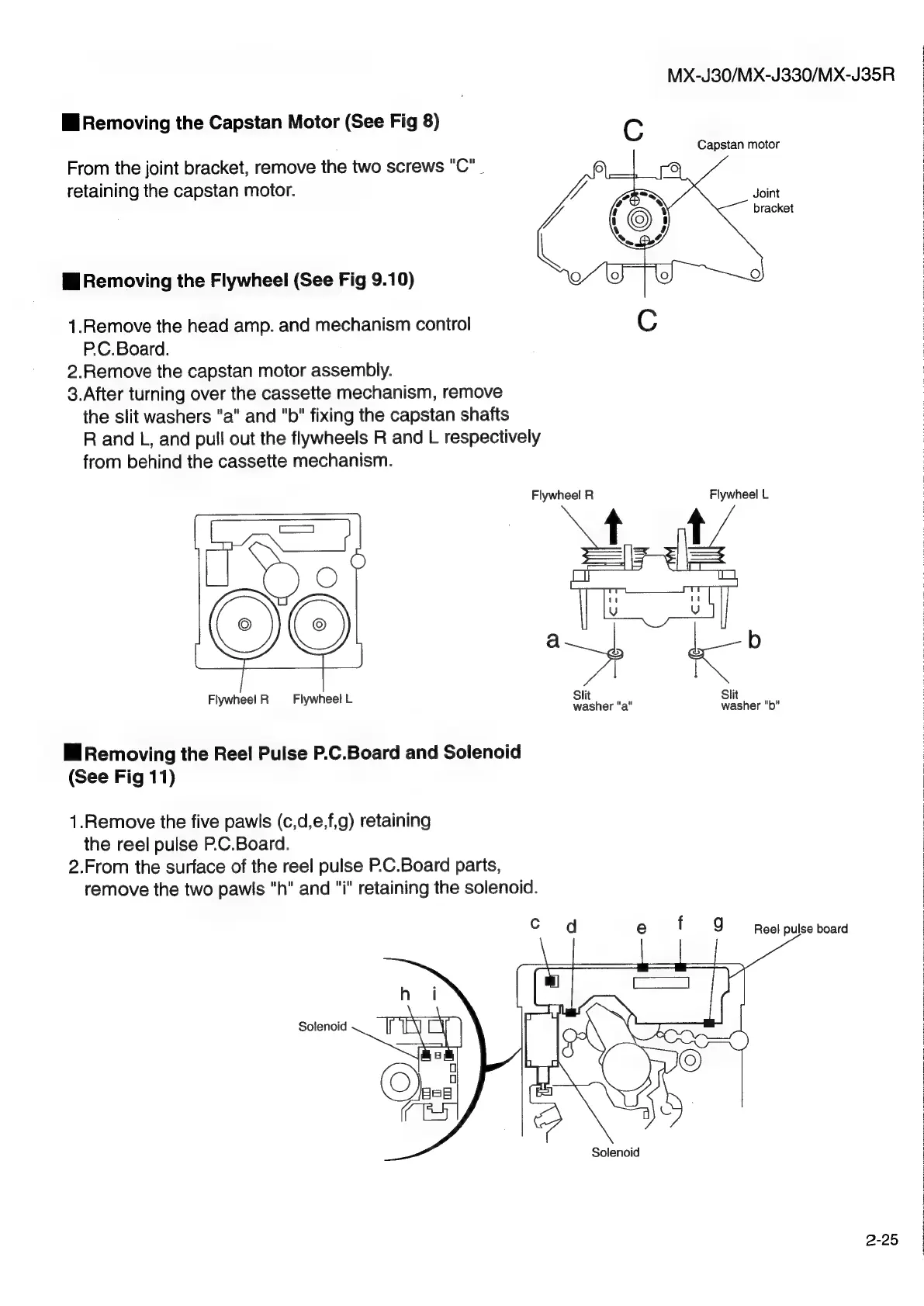

From the joint bracket, remove the two screws "C" |
retaining the capstan motor.
Wi Removing the Flywheel (See Fig 9.10)
1.Remove
the
head
amp.
and
mechanism
control
C
P.C.Board.
2.Remove the capstan motor assembly.
3.After turning over the cassette mechanism, remove
the slit washers "a" and "b" fixing the capstan shafts
R and L, and pull out the flywheels R and L respectively
from behind the cassette mechanism.
Flywheel R
MX-J30/MX-J330/MX-J35R
Capstan motor
Joint
bracket
Flywheel L
Ste ald
1
Slit
washer "a"
Flywheel R Flywheel L
li
Removing
the
Reel
Pulse
P.C.Board
and
Solenoid
(See
Fig
11)
1.Remove the five pawls (c,d,e,f,g) retaining
the reel pulse P.C.Board.
2.From the surface of the reel pulse P.C.Board parts,
remove the two pawils "h" and "i" retaining the solenoid.
Tey
i
Ss
washer "b"
f 9g
Solenoid
Solenoid
b
Reel pulse board
