4
English

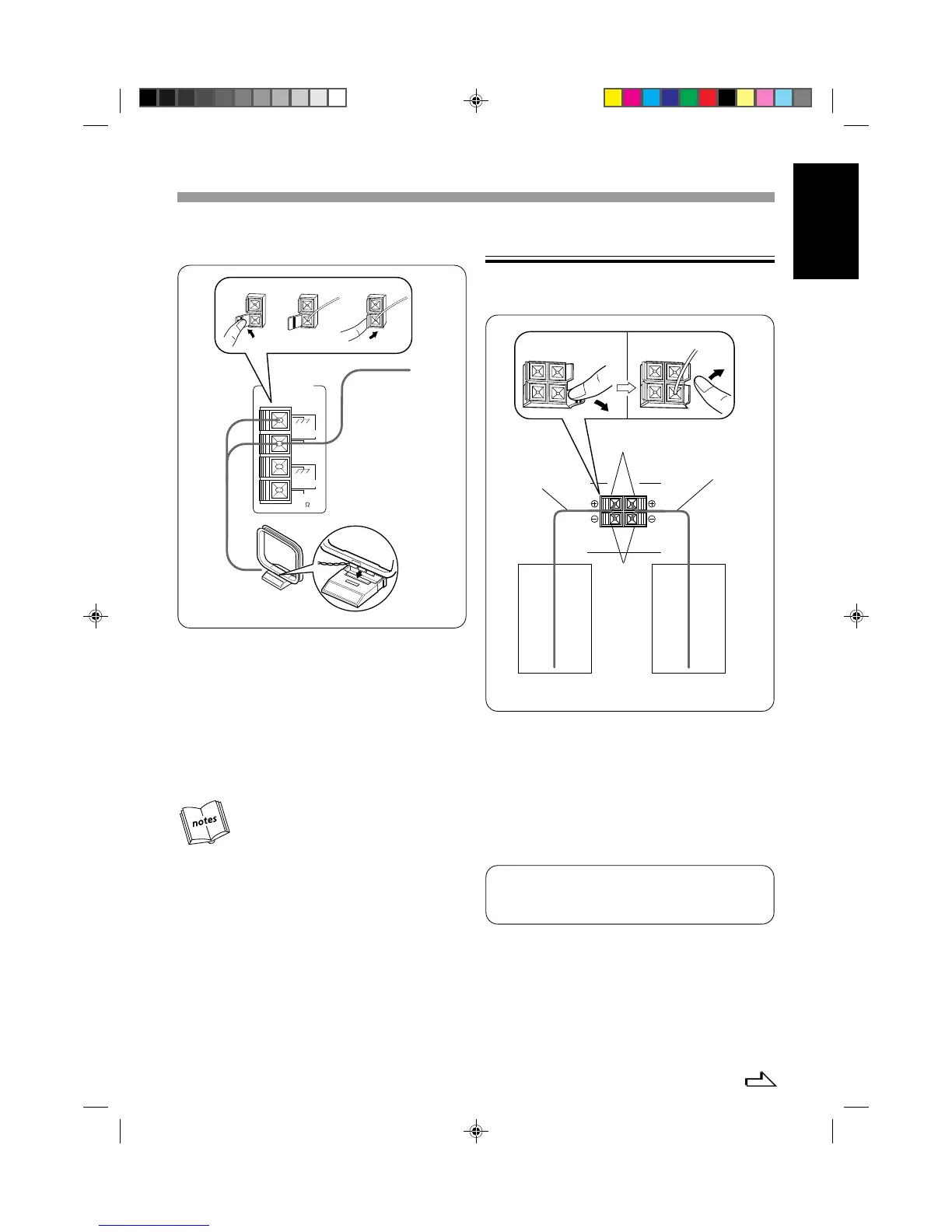

AM antenna
1 Connect the AM loop antenna to the AM LOOP
terminals as illustrated.
2 Turn the AM loop antenna until you have the best
reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire to the
AM EXT terminal and extend it horizontally. (The AM loop antenna
must remain connected.)
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
FM
(75 )
ANTENNA
AM LOOP
FM
AM EXT
231
Vinyl-covered wire
(not supplied)
AM loop antenna (supplied)
RIGHT LEFT
SPEAKERS
1
2, 3
Speaker cord
Speaker cord
Red
Black
Left
speaker
Right
speaker
1 Press and hold the clamp of the speaker terminal
on the rear of the unit.
2 Insert the end of the speaker cord into the terminal.
Match the polarity of the speaker terminals: Red (+)
to red (+) and black (–) to black (–).
3 Release the finger from the clamp.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the rear of
the unit.
Continued
Connecting Speakers
You can connect a pair of front speakers.
To connect front speakers
EN1-5;MX-J333V/PM6 6/30/99, 2:22 PM4
To Next Page
