JVC MX-J680V User Manual

MX-J570V/MX-J680V
1-8
Prior to performing the following procedure, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the card wire from connector CN865 on
the main board and pull out the earth wire on the
main board.
Disconnect the card wire from connector CN315 on
the input / output board.
Disconnect the harness from connector CN912 on
the input / output board.
Disconnect the harness from connectors CN900 and
CN901 on the relay board on the back of the front
panel assembly respectively.
Disconnect connector CN870 and CN871 on the
input/output board from the main board respectively.
Remove the four screws J attaching the front panel
assembly on the bottom of the body.
Release the two joints b and c on the lower part of
the sides using a screwdriver, and remove the front
panel assembly toward the front.
1.
2.
3.
4.
5.
6.
7.

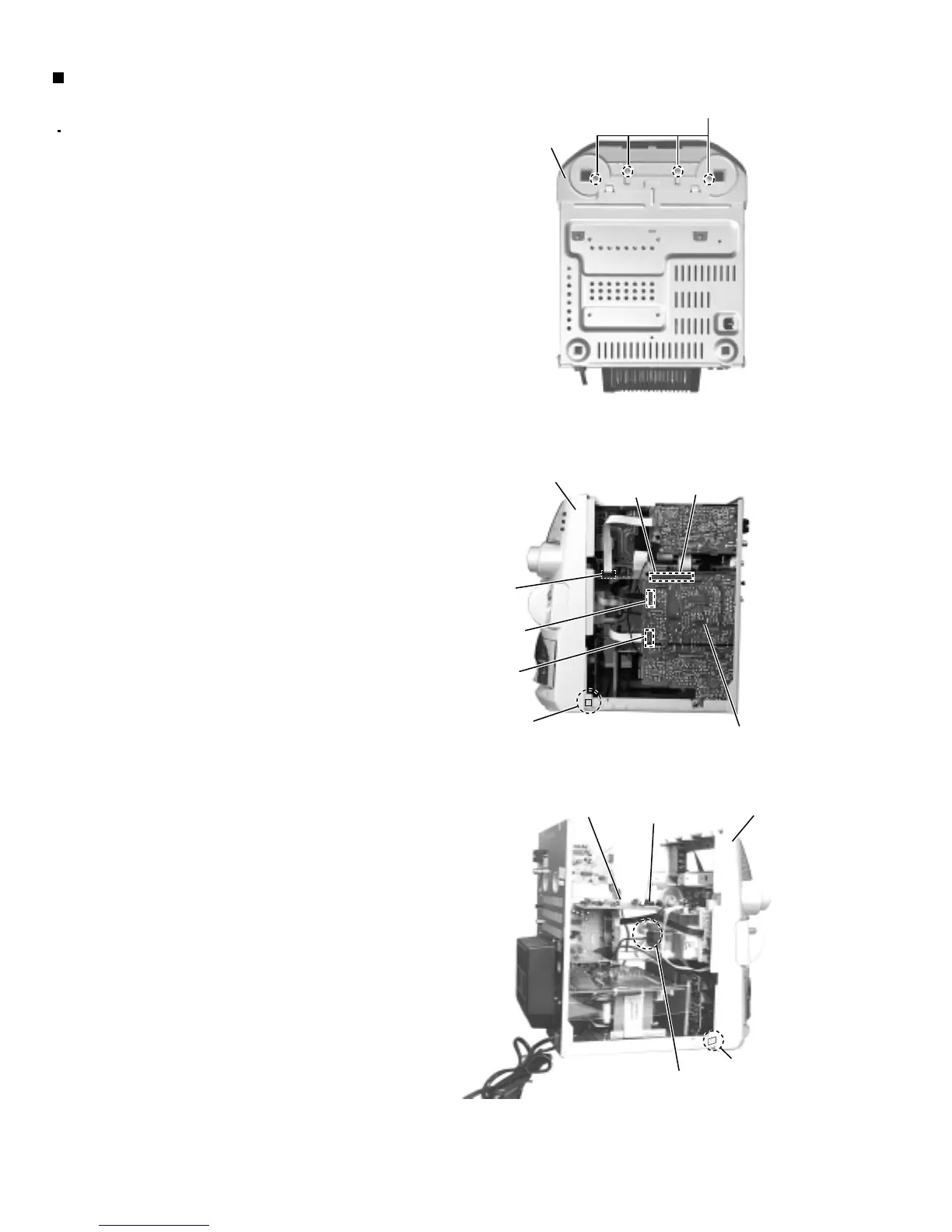

Removing the front panel assembly
(See Fig.8 to 10)
Front panel assembly
Input / output board
Main board
CN865
Joint b
CN315
CN912
CN871
CN870
Fig.9
Fig.10
Fig.8
Relay board
CN900
CN901
Joint c
Main board
CN865
Front panel assembly
Front panel assembly
J
Earth wire
