JVC MX-J800 - CD Mechanism Assembly and Parts List; Screw

MX-J800/MX-J850R
8
12
FG-87HS
FG-87HS
FG-87HS
Grease Point
FG-87HS
(Grease to apply have to be a little for the exchange.)

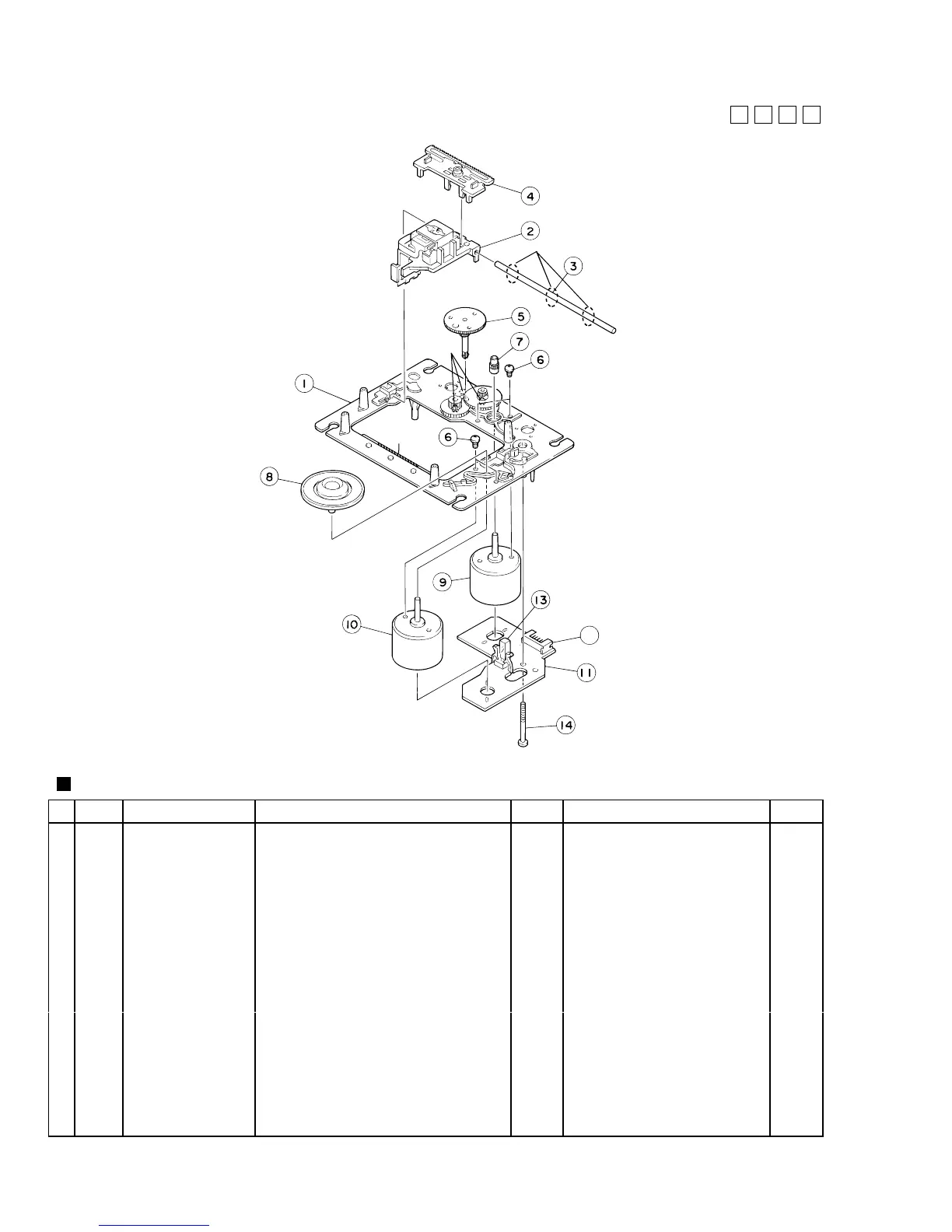

CD mechanism assembly and parts list
Block No.
M
M
M
3
EXL-M7TMB
EXL-M7MB
Item
Parts number Parts name
Area
A
Parts list ( CD mechanism )
Q'ty
Description
Block No. M3MM
1 E102731-221SM MECHA BASE 1
2 OPTIMA-7B OPTICAL PICK UP 1
3 E406777-002SM CD SHAFT 1
4 LV31002-001A CD RACK 1
5 E307745-441SM MECHA GEAR 1
6 QYSDSP2003N SCREW 4
7 E406750-442SM PINION GEAR 1
8 EPB-001PK TURN TABLE 1 SINGLE CD
EPB309173PKA TURN TABLE 1 CHANGER CD
9 E406784-001 FEED MOTOR 1
10 QAR0130-001 SPPINDLE MOTOR 1
11 EMW10190-441 P.C.BOARD 1
12 QGA2001F1-06 6P PLUG ASSY 1
13 QSW0506-001 LEAF SWITCH 1
14 E75832-221SS SPECIAL SCREW 1
