JVC MX-J800 - Direction Lever; Grease Point

MX-J800/MX-J850R
11
A
A

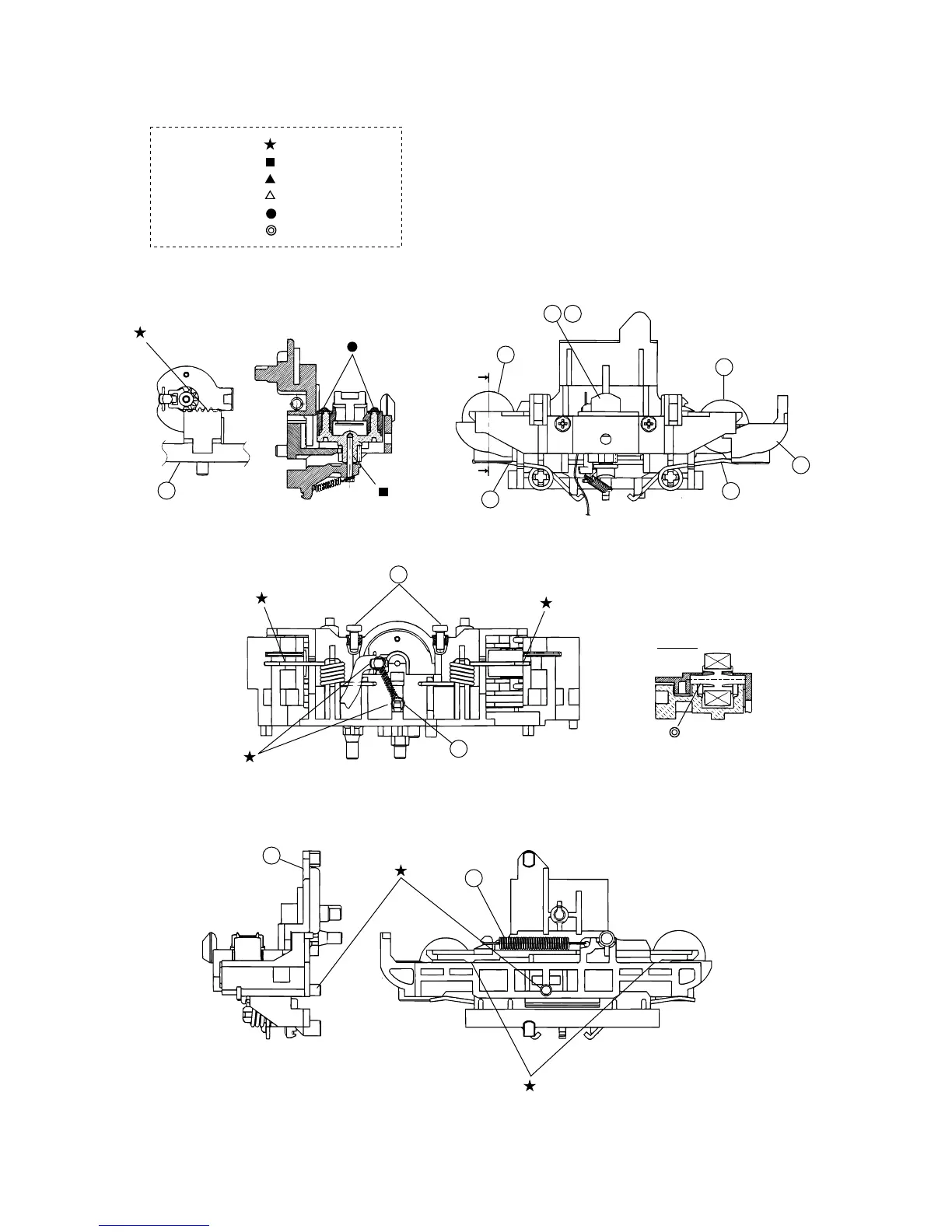

Grease point
=JC-525
=FL-7750
=UD-24
=UD-24H2
=LX-1349B
=MOBIL-1
Should be applied to the rack
of dir.lever fully.
27
21
22
32
26
28
27
24
23
Between head holder and spring's hook.
A - A
Apply oil to the shaft of pinch roller
on both sides before assembly.
Between direction lever and head mount base.
29
33
Between head holder
and shaft.
28
Grease
