(No.MB385)1-19
3.2 DVD mechanism section
• Remove the DVD mechanism assembly from the main body.
(See "3.1.6 Removing the DVD mechanism assembly".)

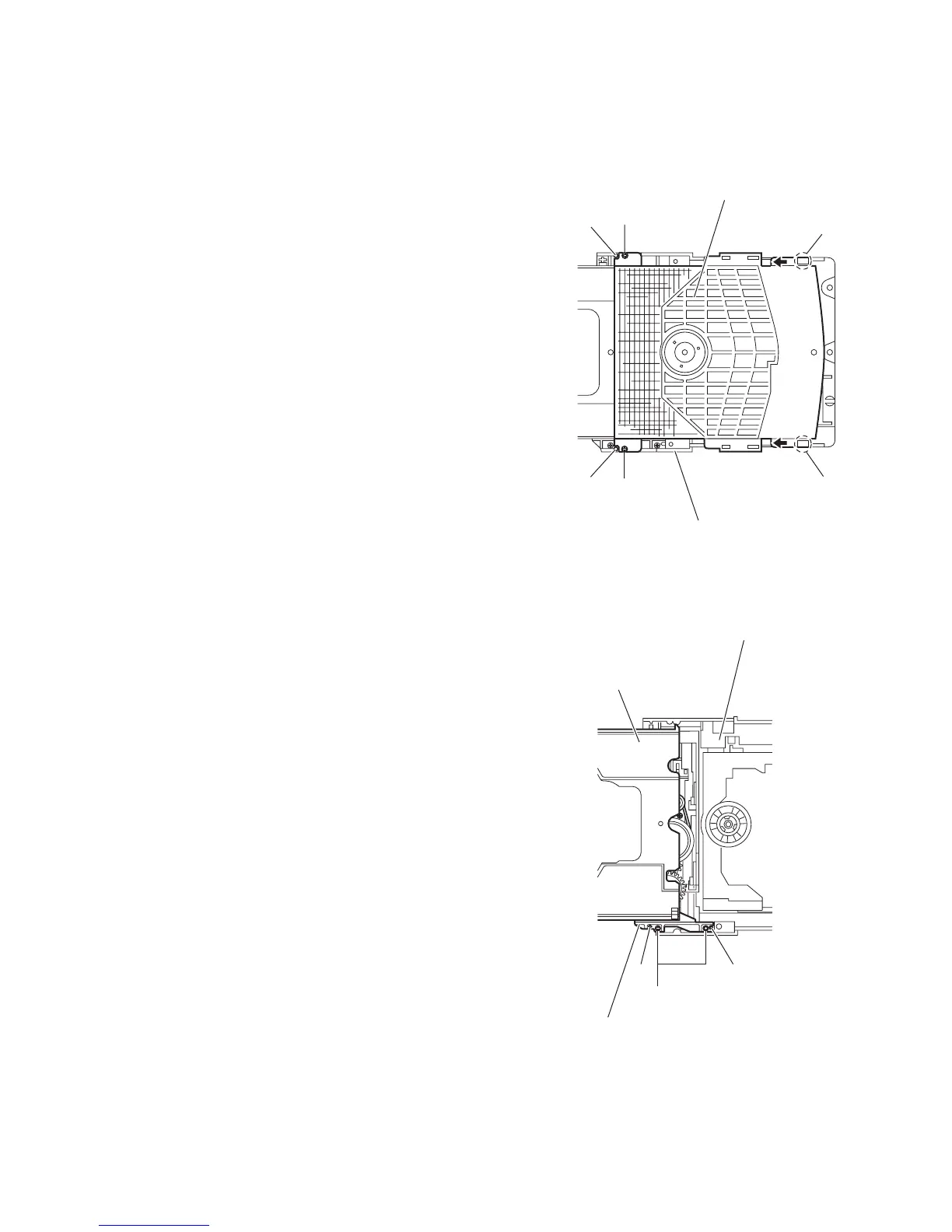

3.2.1 Removing the clamper base
(See Fig.1)
(1) From the top side of the DVD mechanism assembly, re-
move the two screws A attaching the clamper base.
(2) Lift the clamper base in an upward direction to remove it
from the projections a of the DVD mechanism assembly.
(3) Slide the clamper base in the direction of the arrow and re-
move it from the joints b.
Fig.1
3.2.2 Removing the tray assembly
(See Fig.2)
(1) From the top side of the DVD mechanism assembly, re-
move the two screws B attaching the shaft guide of the tray
assembly.
(2) Remove the tray assembly from the projections c of the
DVD mechanism assembly and take out the tray assem-
bly.
Fig.2
A
A
Clamper base
DVD mechanism assembly
a
a
b
b
Tray assembly
DVD mechanism assembly
B
cc
Shaft guide
To Next Page
