MX-K3
1-13
Prior to performing the following procedure, remove
the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.

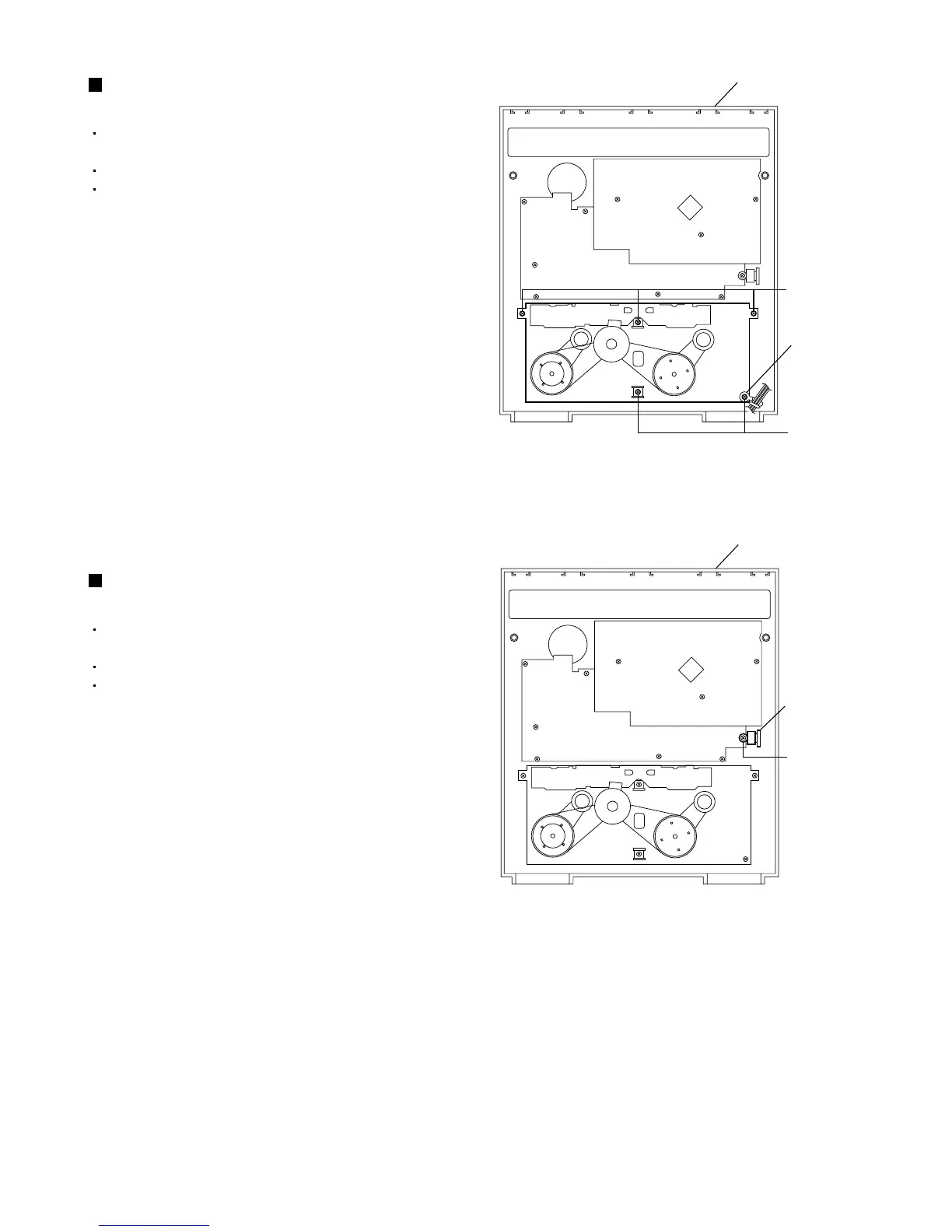

1.Remove the five screws "P" retaining the cassette
deck mechanism and then remove the wire clamp
lug "h" that comes from the back of the front panel
assembly.
Removing the cassette deck mechanism
(See Fig.22)
Prior to performing the following procedure, remove
the top cover
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
Remove the screw with the washer, "Q" that retains
the earphone jack board from the back of the front
panel assembly.
Removing the earphone jack board
(See Fig.23)
P
P
Front panel
assembly
Wire clamp
lug "h"
Q
Front panel
assembly
Earphone jac
k
board
Fig.22
Fig.23
