Fig.18
Fig.19
Fig.20
Fig.21
Motor locker
Turn table motor
Obligue gear
Prior to performing the following procedures,
remove the top cover and both sides board.
Also remove the CD changer unit.
Also remove the CD changer mechanism
1.
2.
Widen the section "f ".
While keeping the section "f" wide open, push the
section "g" in the direction of the arrow to remove
the shaft, and then remove the CD pickup.

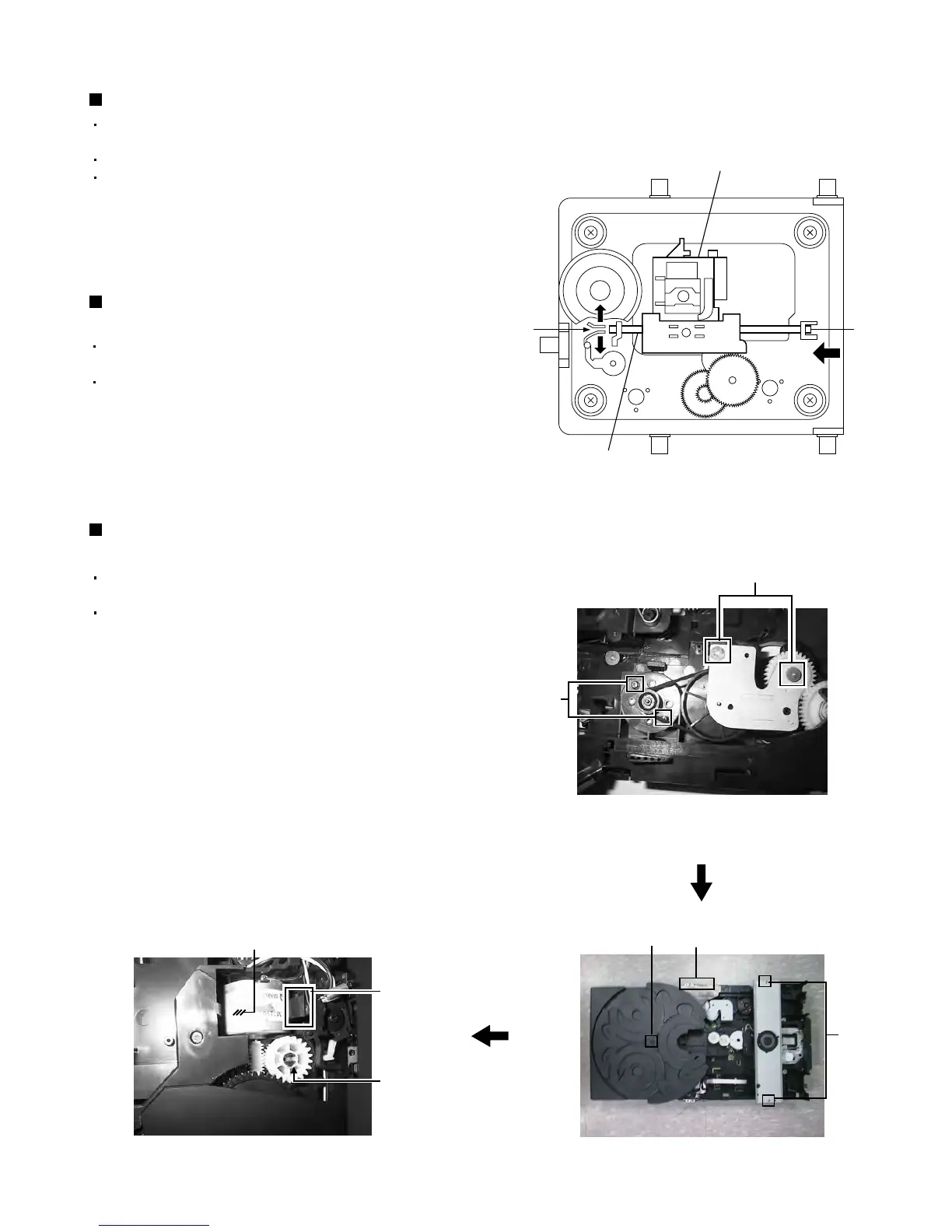

Removing the CD pickup (See Fig.18)
Prior to performing the following procedure,
remove the top cover.
1.
2.
Remove the two screws "L" retaining the CD
changer tray loading motor.
Remove the two screws "M' retaining the gear plate
and take it out, after remove the rotor belt from the
pulley.
Replacing the loading motor and rotor
blet of the CD changer (See Fig .19)
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
1. Remove the one screws "N" retaining the CD (Turn table).
2. Remove the two screws "O" retaining the stopper brackets
on both sides of the CD changer unit.
3. Remove the stopper brackets from both sides of the CD
changer unit.
4. Pull out the CD tray from the CD changer unit, all the way
and lift the tray (u/~ ward) to remove.
5. Remove the gear and after push out the tray motor locker
and pull out the tray motor from the CD tray.
, and then remove the CD tray
.
Replacing the CD turn table and removing
the motor (See Fig. 20 and 21)
Also open the CD changer tray.
g
M
L
f
CD pickup
Shaft
d
N O
