JVC MX-K30 Service Manual

1-13
Prior to performing the following procedure, remove
the top cover and both sides board.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.Remove the five screws "Z" retaining the cassette
deck mechanism.
Removing the cassette deck mechanism
(See Fig.22)
Prior to performing the following procedure, remove
the top cover and both sides board.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
Remove the screw with the washer, "P" that retains
the earphone jack PCB.
Removing the earphone jack PCB
(See Fig.23)
Prior to performing the following procedure, remove
the top cover and both sides board.
Also remove the CD changer unit.
Also remove the CD changer unit.
Also remove the CD changer unit.
1.Remove the three screws "Q" that retain the
control/FL PCB from the back of the front panel
unit.
Removing the control/FL PCB
(See Fig.24)

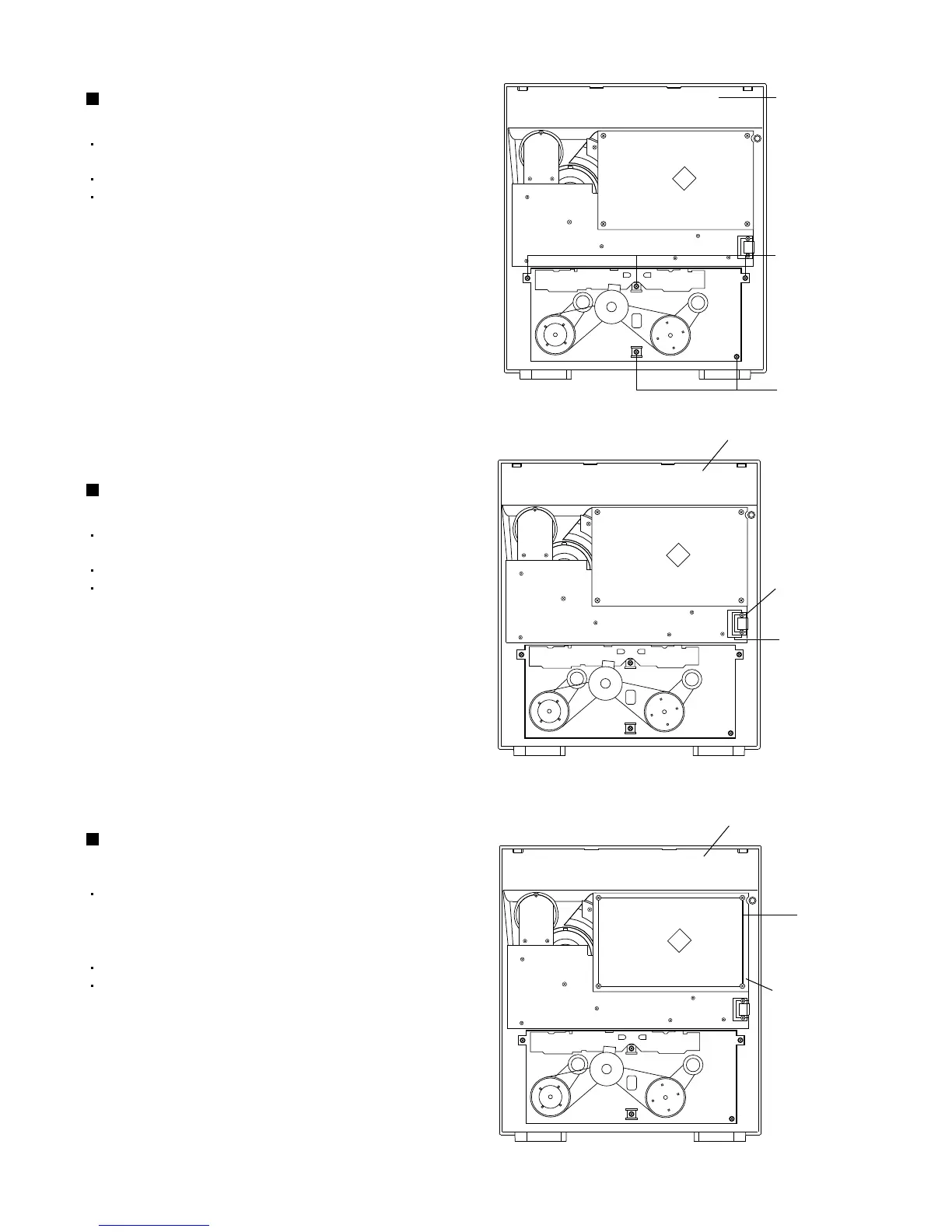

Fig.22
Fig.23
Z
Z
Front panel
assembly
P
Front panel
assembly
Earphone jack
PCB
Front panel
assembly
Q
Control/FL
PCB
Fig.24
