(No.MB196)1-9

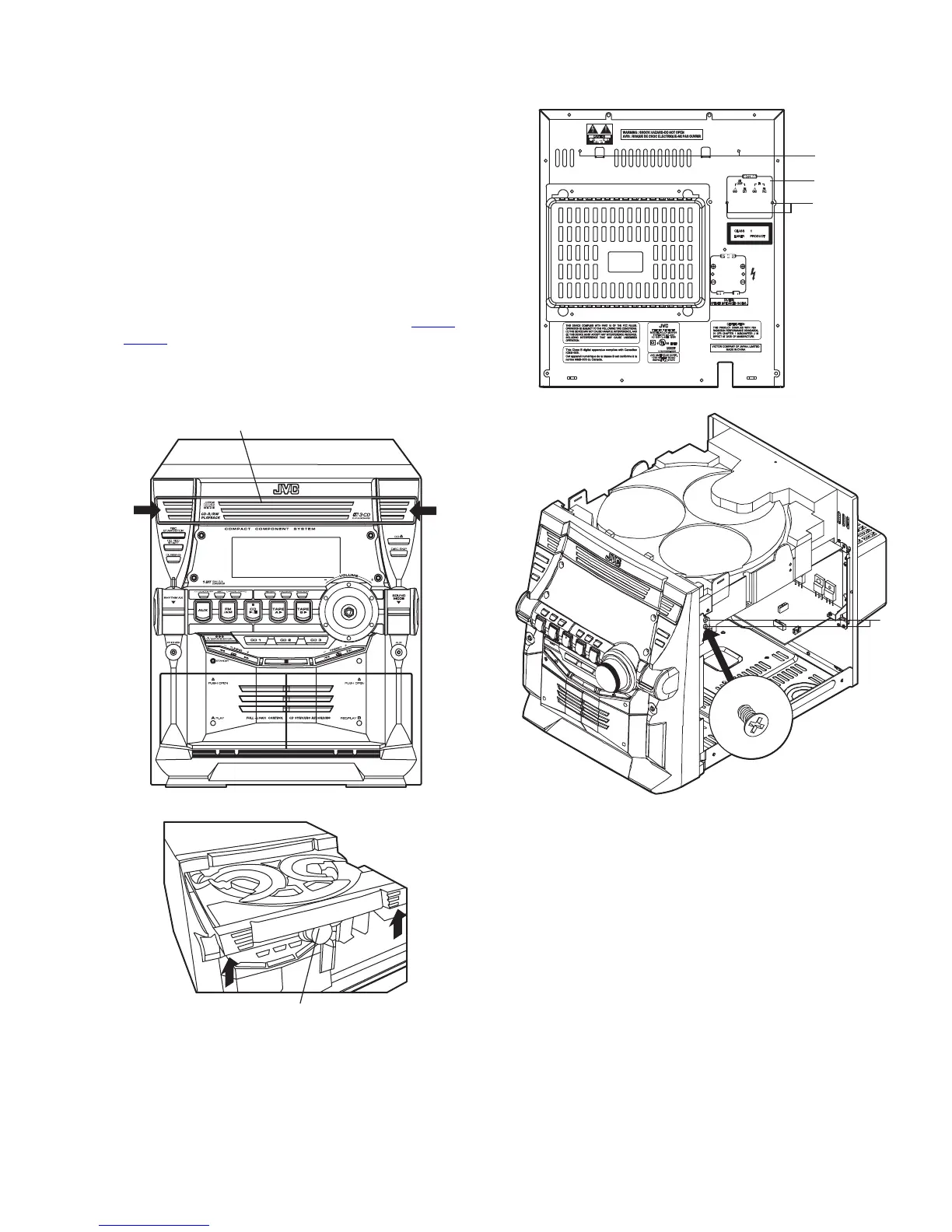

3.1.5 Removing the CD changer unit
(See Fig.6 to 9)
• Prior to performing the following procedures, remove the top
cover.
Caution:
Although the CD mechanism unit can be removed without re-
moving the CD tray panel, it is still recommended to remove it
in order to prevent damage.
a. From the front panel side of this set, push in the sections
marked with arrows and pull out the CD tray toward the
front.
b. Remove the CD tray panel by pushing both of its extremi-
ties upward in the direction of the arrows.
c. Push the CD tray deep into the set.
(1) Disconnect the cord wires from the CD board CN703
and
CN203
.
(2) From the rear of the set, remove two screws E, two screws
F and four screws G on the front panel left and right side.
(3) Handle the CD changer unit rear, take out the unit.
Fig.6
Fig.7
Fig.8
Fig.9
CD tray panel
CD tray panel
F
Antenna
terminal
E
G
To Next Page
