(No.MB207)1-11

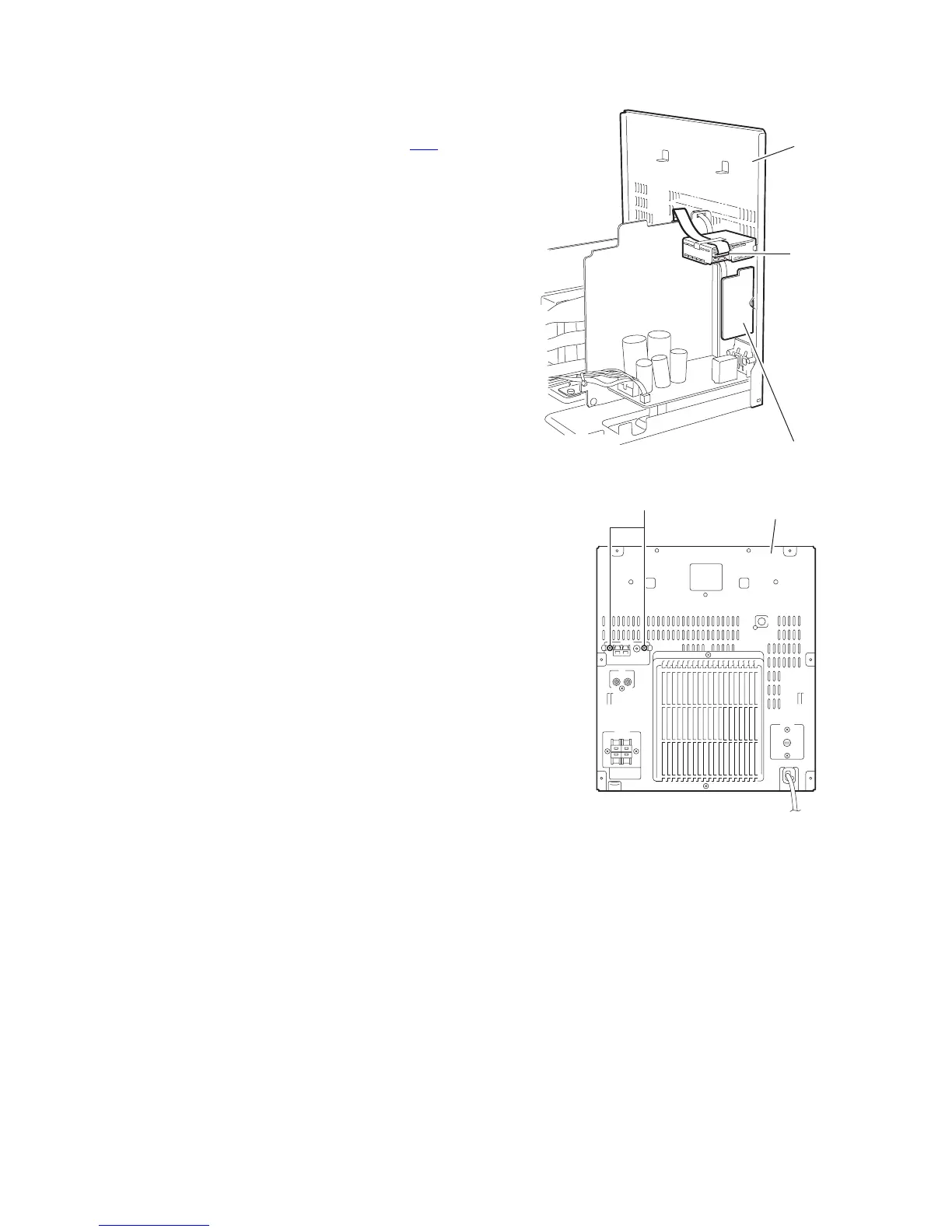

3.1.7 Removing the tuner pack assembly
(See Fig.17~18)
• Prior to performing the following procedure, remove the metal
cover and the CD changer unit.
(1) Disconnect the card wire from the connector CN1
on the
tuner pack assembly on the right side of the body.
(2) Remove the two screws H on the rear panel on the back
of the body.
Fig.17
Fig.18
Tuner pack
(CN1)
AUX & surround board
Rear panel
H
Rear panel
To Next Page
