3.1.8 Removing the AUX & surround board

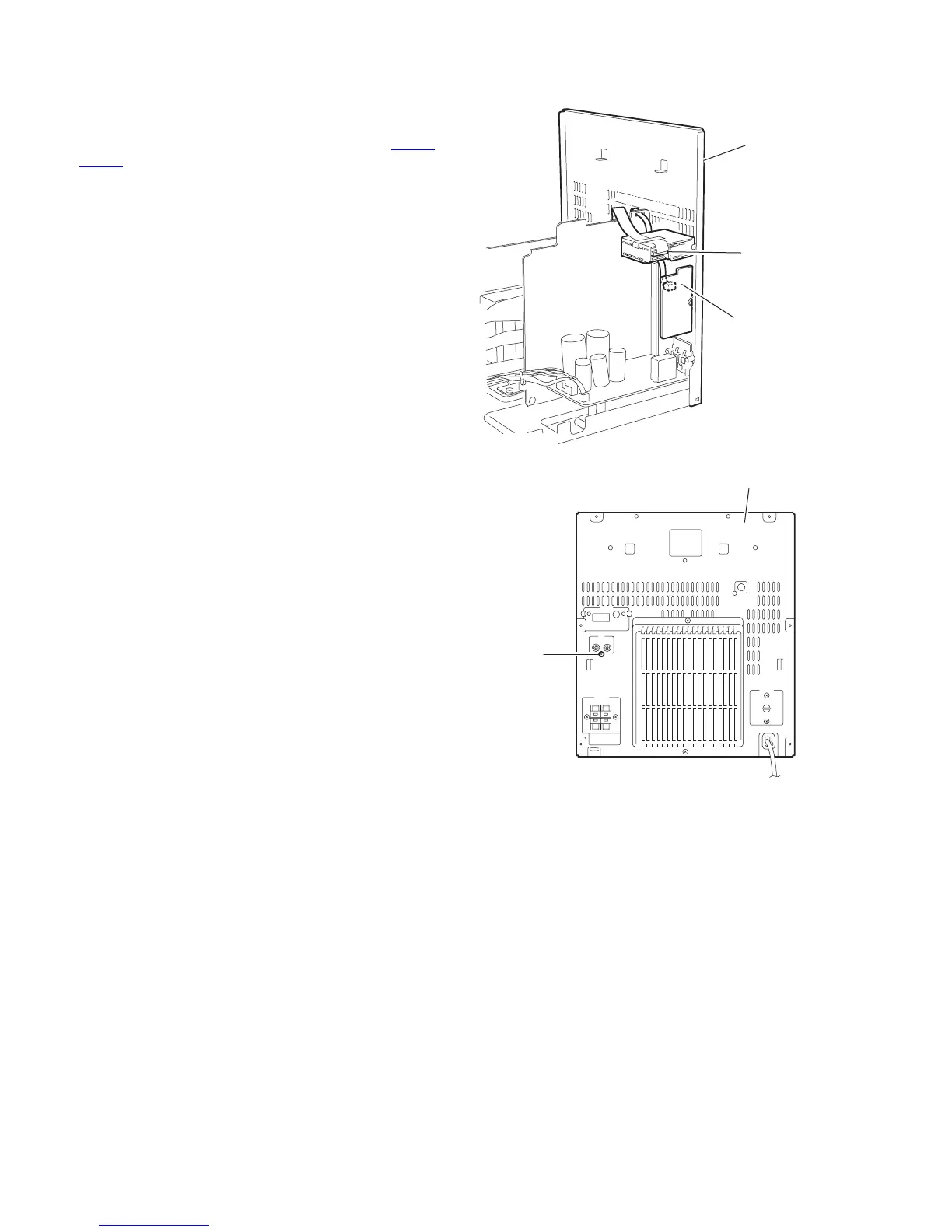

(See Fig.19, 20)
• Prior to performing the following procedure, remove the metal
cover and the CD changer unit.
(1) Disconnect the card wire from the connector CN411,
CN711
on the on the AUX & surround board on the right
side of the body.
(2) Remove the screw J on the rear panel on the back of the
body.
Fig.19
Fig.20
Tuner pack
AUX & surroud board
(CN411)
Rear panel
J
Rear panel
To Next Page
