JVC NX-MD1R

NX-MD1R/NX-MD1
1-14
Removing the MD mechanism
assembly (See Fig.17)
1.
2.
3.
4.
5.
Remove the screw AB attaching the earth plate
board.
Remove the card wire on the MD mechanism
assembly.
Disconnect the card wire from connector CN522 on
the MD servo board, then remove it.
Remove the four screws AC attaching the MD
bracket from left and right side of the MD
mechanism assembly.
Remove the MD bracket to the bottom side.

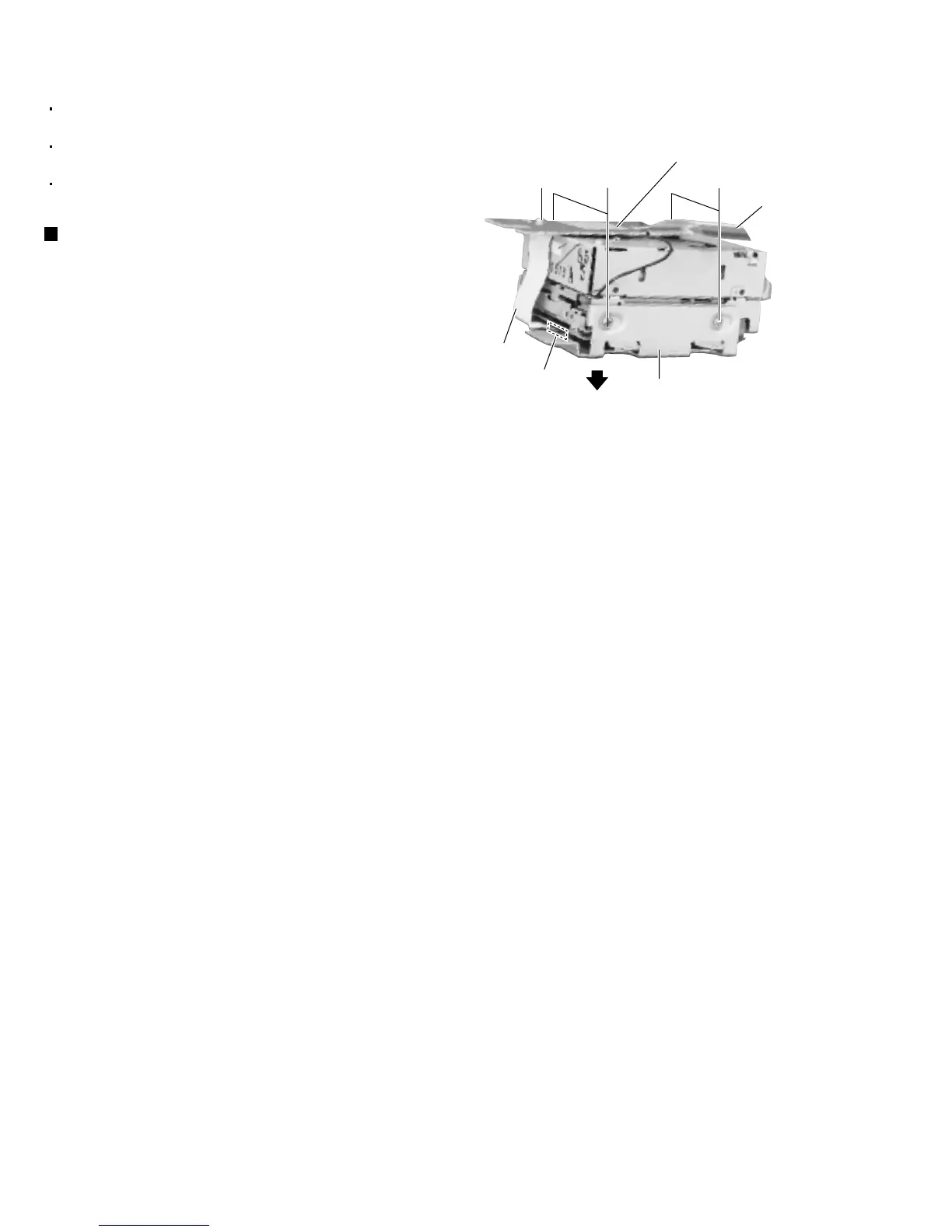

<MD mechanism assembly section>
Fig.17
Prior to performing the following procedure, remove
the top cover.
Prior to performing the following procedure, remove
the rear cover.
Prior to performing the following procedure, remove
the MD mechanism assembly.
CN522
MD bracket
Card wire
Card wire
Earth plate board
ACACAB
