NX-MD1R/NX-MD1
1-29
Reattach the eject bar to the UD base.
(Fig.15 and 21)
Reattach the slide bar to the loading mechanism
chassis while fitting the boss marked k to the eject
bar ditch k'. (Fig.21)
Slide the slide bar and the eject bar in the direction
of the arrow in Fig.21 and reattach the cartridge
holder assembly using the two screws J.
(Fig.21 and 22)
1.
2.
3.
<Reattaching the loading assembly>
Make sure the pin of the eject lever
marked m is fitted to the slot of the
eject bar marked n at the bottom of the
loading mechanism chassis after
moving the eject lever and the loading
slider of the cartridge holder assembly
in the direction of the arrow.
(Refer to Fig.22)
ATTENTION:

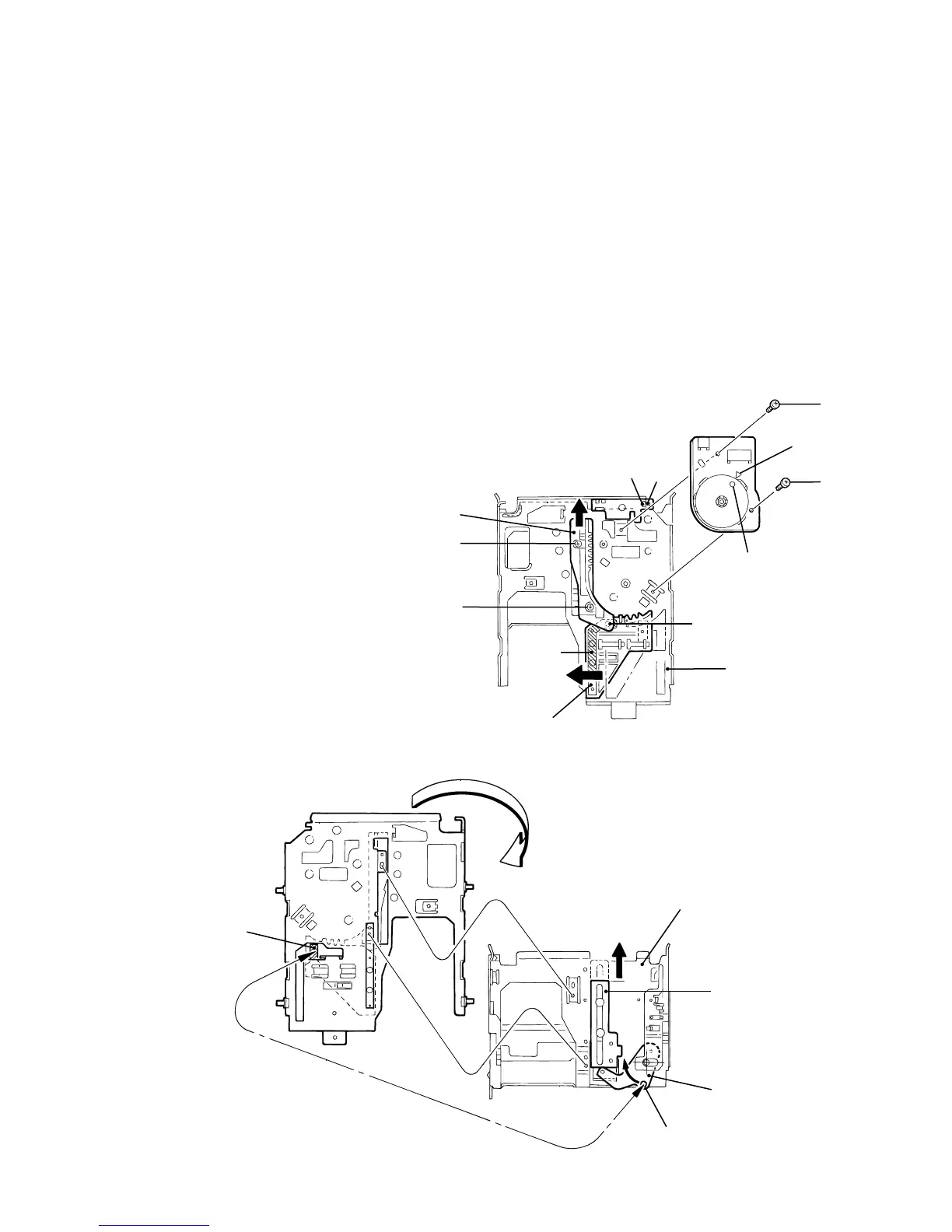

Fig.21
Fig.22
J
J
H
H
UD base
UD base (Bottom)
Ditch n
Cam switch board
Point marked
Ditch k'
Cam switch boss
Slide bar
Eject bar
Eject lever
m
Loading slider
Cartridge holder assembly
Boss k
r
q
