It is not necessary to remove the pickup unit.
For the white and black harnesses extending from
the feed motor assembly, unsolder the soldering i
on the traverse mechanism board.
Remove the two screws M attaching the feed motor
assembly.
Remove the two screws P attaching the feed motor
bracket.
1.
2.
3.
Removing the feed motor assembly
(See Fig.19, 20)
Prior to performing procedure, remove the feed
motor assembly.
For the red and black harnesses extending from the
spindle motor, unsolder the soldering j on the
traverse mechanism board.
Remove the screw N attaching the traverse
mechanism board.
1.
2.
Removing the traverse mechanism
board (See Fig.19)

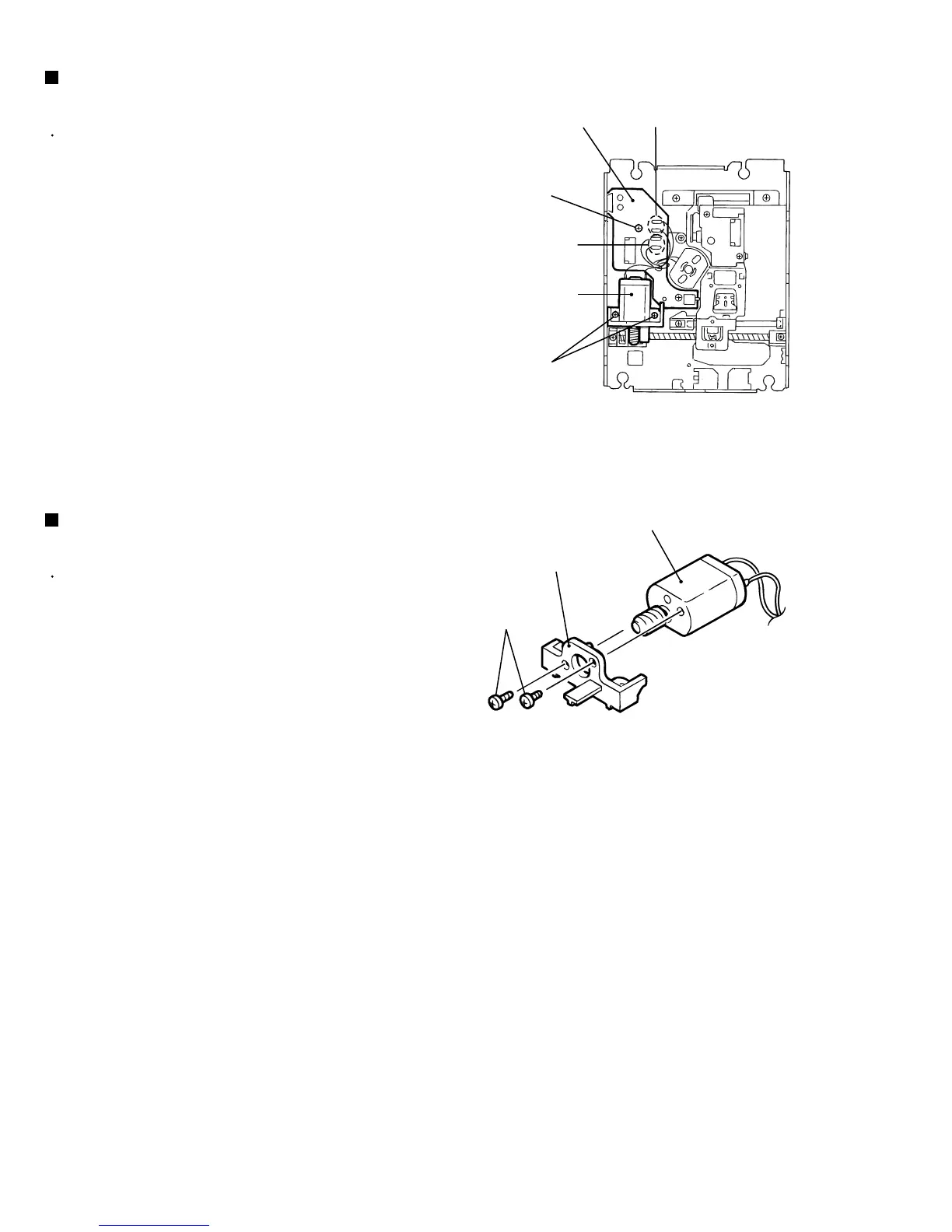

Fig.19
Fig.20
N
M
P
Feed motor assembly
Feed motor
Feed motor bracket
Traberse mechanism board Soldering j
Soldering i
