JVC NX-T10

1-10 (No.MB707<Rev.002>)

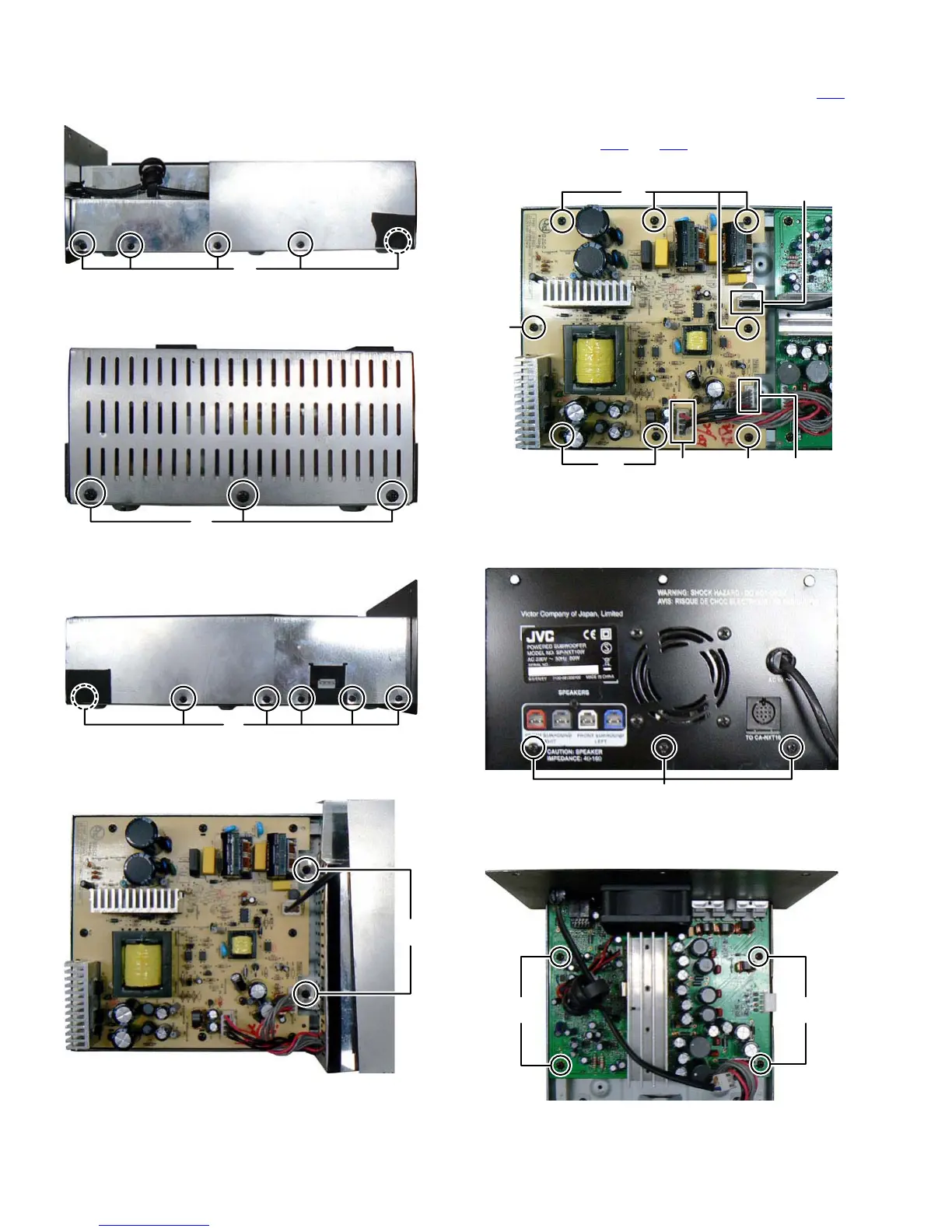

3.2.2 Removing the Power cover and Amp cover (See Fig.4,
5, 6, 7)
(1) Remove the five screws C attaching the Cover. (See Fig.4)
Fig.4
(2) Remove the three screws D attaching the Cover. (See
Fig.5)
Fig.5
(3) Remove the six screws E attaching the Cover. (See Fig.6)
Fig.6
(4) Lift up the Power cover; remove the two screws F attaching
the Amp cover. (See Fig.7)
Fig.7
3.2.3 Removing the Power board (See Fig.8)
(1) Disconnect the power cord connected to connector CN1
of
the Power board.
(2) Disconnect the connector wires from Amp board connect-
ed to connector CN2
and CN3 of the Power board.
(3) Remove the eight screws G attaching the Power board.
Fig.8
3.2.4 Removing the Amp board (See Fig.9, 10)
(1) Remove the three screws H attaching the Back plate. (See
Fig.9)
Fig.9
(2) Remove the four screws J attaching the Amp board. (see
Fig.10)
Fig.10
C
D
E
F
G
G
G
G
CN2 CN3
CN1
H
JJ
