ENGLISH
18
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

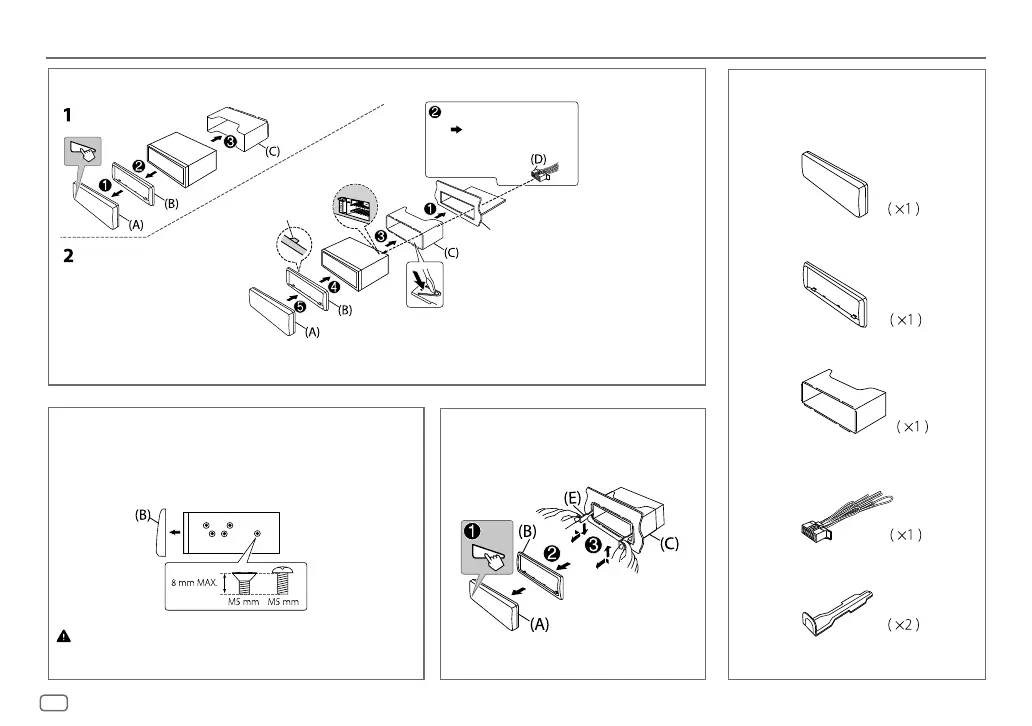

INSTALLATION/CONNECTION
How to remove the unit
When installing without the mounting sleeve
1
Remove the mounting sleeve and trim plate from the unit.
2
Align the holes in the unit (on both sides) with the vehicle
mounting bracket and secure the unit with screws (commercially
available).
Use only the specified screws. Using wrong screws might damage the
unit.
Installing the unit (in-dash mounting)
Do the required wiring.
( 19)
Bend the appropriate tabs to
hold the sleeve firmly in place.
Hook on the top side
Orientate the trim plate as
illustrated before fitting.
Dashboard of
your car
Part list for installation
(C)
Mounting sleeve
(B)
Trim plate
(D)
Wiring harness
(E)
Extraction key
(A)
Faceplate
JS_JVC_KD-X241_M_EN_1.indd 18JS_JVC_KD-X241_M_EN_1.indd 18 8/23/2016 11:30:46 AM8/23/2016 11:30:46 AM
