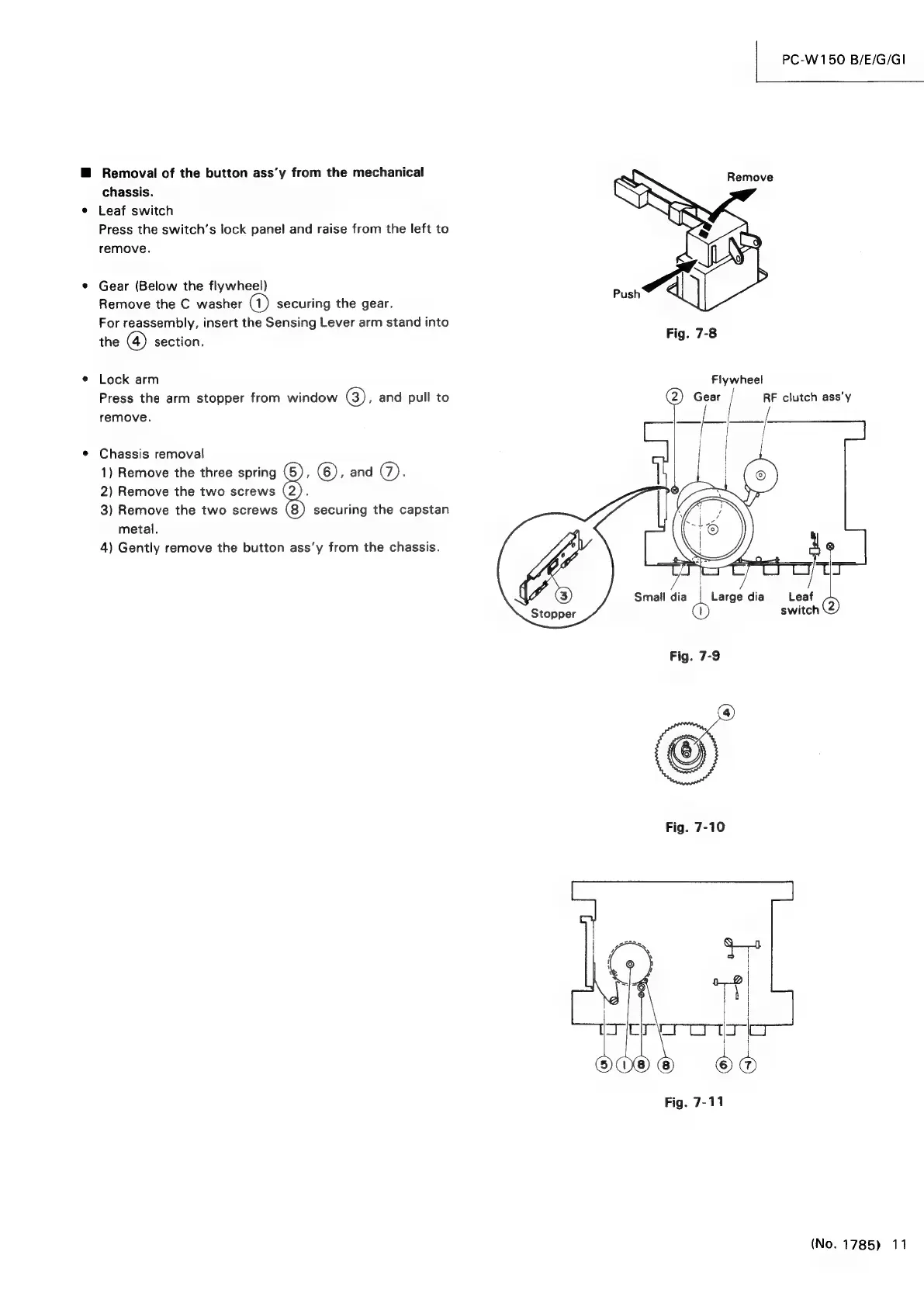

Removal of the button ass’y from the mechanical
chassis.
Leaf switch
Press the switch’s lock panel and raise from the left to
remove.
Gear (Below the flywheel)
Remove the C washer securing the gear.
For reassembly, insert the Sensing Lever arm stand into
the ) section.
Lock arm
Press the arm stopper from window GB), and pull to
remove.
Chassis removal
1) Remove the three spring (5), 6), and ).
2) Remove the two screws
3) Remove the two screws (8) securing the capstan
metal.
4) Gently remove the button ass’y from the chassis.
PC-W 150 B/E/G/GI
Remove
Flywheel
Gear | RF clutch ass’y
Small dia | Large dia Leaf
switch
Fig. 7-9
Fig. 7-10
(No. 1785) 11
