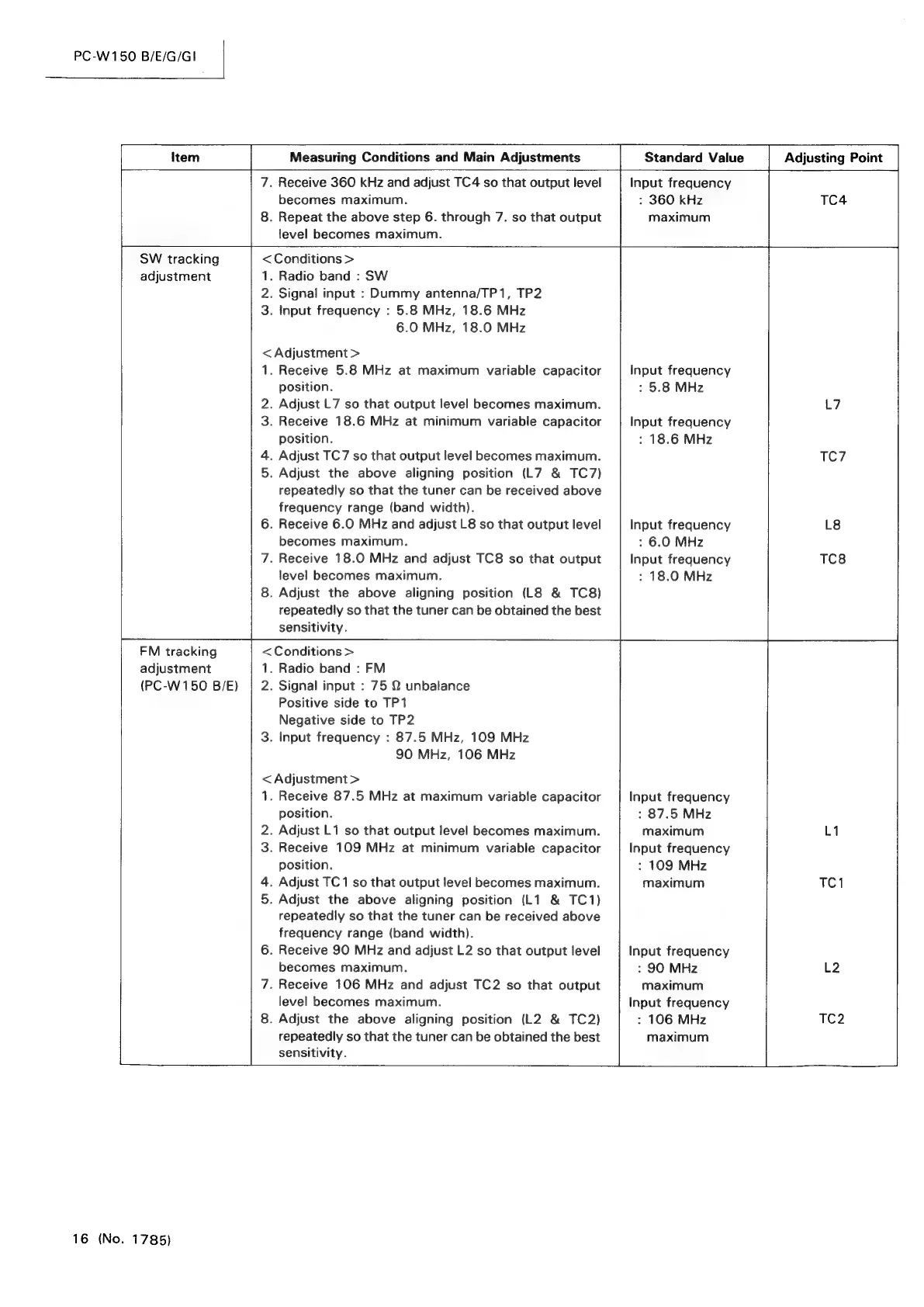

PC-W150
B/E/G/GI
|
Item
Measuring
Conditions
and
Main
Adjustments
7.
Receive
360
kHz
and
adjust
TC4
so
that
output
level
becomes
maximum.
8.
Repeat
the
above
step
6.
through
7.
so
that
output
level
becomes
maximum.
SW
tracking
adjustment
FM
tracking
adjustment
(PC-W150
B/E)
<
Conditions
>
1.
Radio
band
:
SW
2.
Signal
input
:
Dummy
antenna/TP1,
TP2
3.
Input
frequency
:
5.8
MHz,
18.6
MHz
6.0
MHz,
18.0
MHz
<
Adjustment
>
1.
Receive
5.8
MHz
at
maximum
variable
capacitor
position.
2.
Adjust
L7
so
that
output
level
becomes
maximum.
3.
Receive
18.6
MHz
at
minimum
variable
capacitor
position.
4.
Adjust
TC7
so
that
output
level
becomes
maximum.
5.
Adjust
the
above
aligning
position
(L7
&
TC7)
repeatedly
so
that
the
tuner
can
be
received
above
frequency
range
(band
width).
6.
Receive
6.0
MHz
and
adjust
L8
so
that
output
level
becomes
maximum.
7.
Receive
18.0
MHz
and
adjust
TC8
so
that
output
level
becomes
maximum.
8.
Adjust
the
above
aligning
position
(L8
&
TC8)
repeatedly
so
that
the
tuner
can
be
obtained
the
best
sensitivity.
<Conditions
>
1.
Radio
band
:
FM
2.
Signal
input
:
75
Q
unbalance
Positive
side
to
TP1
Negative
side
to
TP2
3.
Input
frequency
:
87.5
MHz,
109
MHz
90
MHz,
106
MHz
<
Adjustment
>
1.
Receive
87.5
MHz
at
maximum
variable
capacitor
position.
2.
Adjust
L1
so
that
output
level
becomes
maximum.
3.
Receive
109
MHz
at
minimum
variable
capacitor
position.
4.
Adjust
TC
1
so
that
output
level
becomes
maximum.
5.
Adjust
the
above
aligning
position
(L1
&
TC1)
repeatedly
so
that
the
tuner
can
be
received
above
frequency
range
(band
width).
6.
Receive
90
MHz
and
adjust
L2
so
that
output
level
becomes
maximum.
7.
Receive
106
MHz
and
adjust
TC2
so
that
output
level
becomes
maximum.
8.
Adjust
the
above
aligning
position
(L2
&
TC2)
repeatedly
so
that
the
tuner
can
be
obtained
the
best
sensitivity.
16
(No.
1785)
Standard
Value
Adjusting
Point
Input
frequency
:
360
kHz
TC4
maximum
Input
frequency
:
5.8
MHz
L7
Input
frequency
:
18.6
MHz
TC7
Input
frequency
L8
:
6.0
MHz
Input
frequency
TC8
:
18.0
MHz
Input
frequency
:
87.5
MHz
maximum
Input
frequency
:
109
MHz
maximum
L1
TC1
Input
frequency
:
90
MHz
maximum
Input
frequency
:
106
MHz
maximum
L2
TC2
