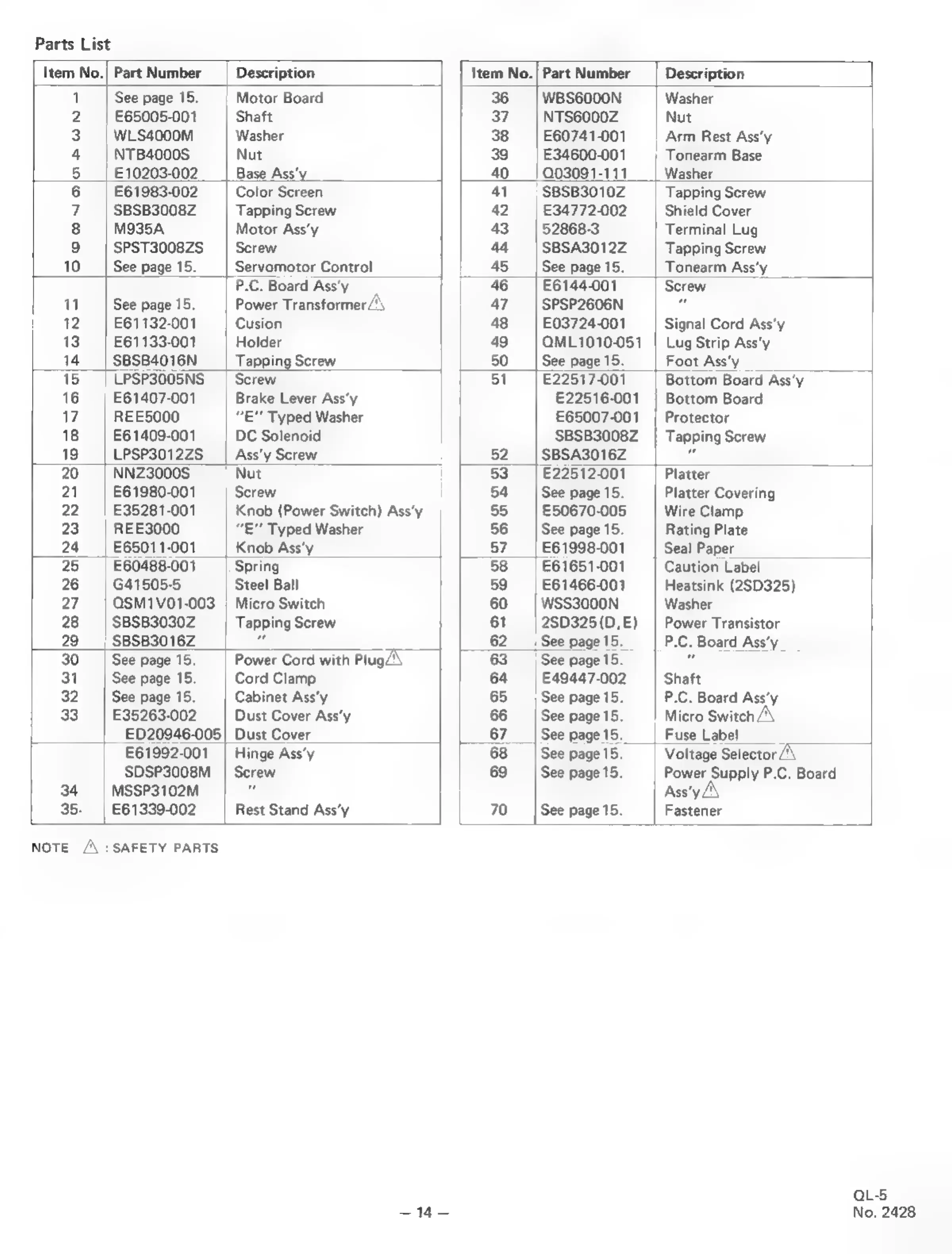

Parts List
Item No.| Part Number Description Item No.|Part Number | Description
1 See page 15. Motor Board 36 WBS6000N Washer
2 E65005-001 Shaft 37 NTS6000Z Nut
3 WLS4000M Washer 38 E60741-001 Arm Rest Ass‘y
4 | NTB4000S Nut 39 E34600-001 Tonearm Base
5 E10203-002 Base Ass'y 40 | Q03091-111 Washer
6 £61983-002 Color Screen 41 SBSB3010Z Tapping Screw
7 SBSB3008Z Tapping Screw 42 | E34772-002 Shield Cover
8 | M935A Motor Ass’y 43 | 52868-3 Terminal Lug
9 SPST3008ZS Screw 44 SBSA3012Z Tapping Screw
10 See page 15. Servomotor Control 45 See page 15. Tonearm Ass’y
7 P.C. Board Ass'y 46 | £6144-001 Screw -
11 | Seepage 15. | Power Transformer/\, 47 | SPSP2606N -
12 £61132-001 Cusion 48 £03724-001 Signal Cord Ass’y
13 E61133-001 Holder 49 QML1010-051 | Lug Strip Ass’y
14 SBSB4016N _| Tapping Screw 50 __| See page 15. Foot Ass’y "
15 LPSP3005NS Screw 51 £22517-001 Bottom Board Ass‘y
16 E61407-001 Brake Lever Ass’y £22516-001 | Bottom Board
7 REESO0O | “E’ Typed Washer | £65007-001 | Protector
18 E61409-001 DC Solenoid SBSB3008Z | Tapping Screw
19 _| LPSP3012ZS _| Ass’y Screw 52__| SBSA3016Z *
20 | NNZ3000S Nut 53 [E22512-001 Platter
21 E61980-001 Screw 54 See page 15. Platter Covering
22 E35281-001 Knob (Power Switch) Ass’y 55 £50670-005 Wire Clamp
23 REE3000 “E” Typed Washer 56 | See page 15. Rating Plate
24 E65011-001 Knob Ass’y 57 £61998-001 Seal Paper
25 £60488-001 |. Spring 58 £61651-001 Caution Label
26 | G41505-5 Steel Ball 59 | £61466-001 Heatsink (25D325)
27 | QSM1V01-003 | Micro Switch 60 | WSS3000N Washer
28 SBSB3030Z | Tapping Screw 61 2SD325(D,E) | Power Transistor
29 SBSB3016Z pera 5 ne ae os 62 __ See page 15. P.C. Board Ass’y
30 See page 15. Power Cord with Plug" 63 See page 15. wn
31 See page 15. Cord Clamp 64 £49447-002 Shaft
32 See page 15. Cabinet Ass‘y 65 See page 15. P.C. Board Assy
33 E35263-002 Dust Cover Ass’y 66 =| See page 15. Micro Switch
|__ED20946-005| Dust Cover _67 See page15. | Fuse Label
| E£61992-001 | Hinge Ass’y 68 See page 15. Voltage Selector / y
SDSP3008M | Screw 69 See page 15. Power Supply P.C. Board
34 | MSSP3102M M | Ass‘y
35. | £61339-002 Rest Stand Ass’y | 70 See page 15. Fastener
