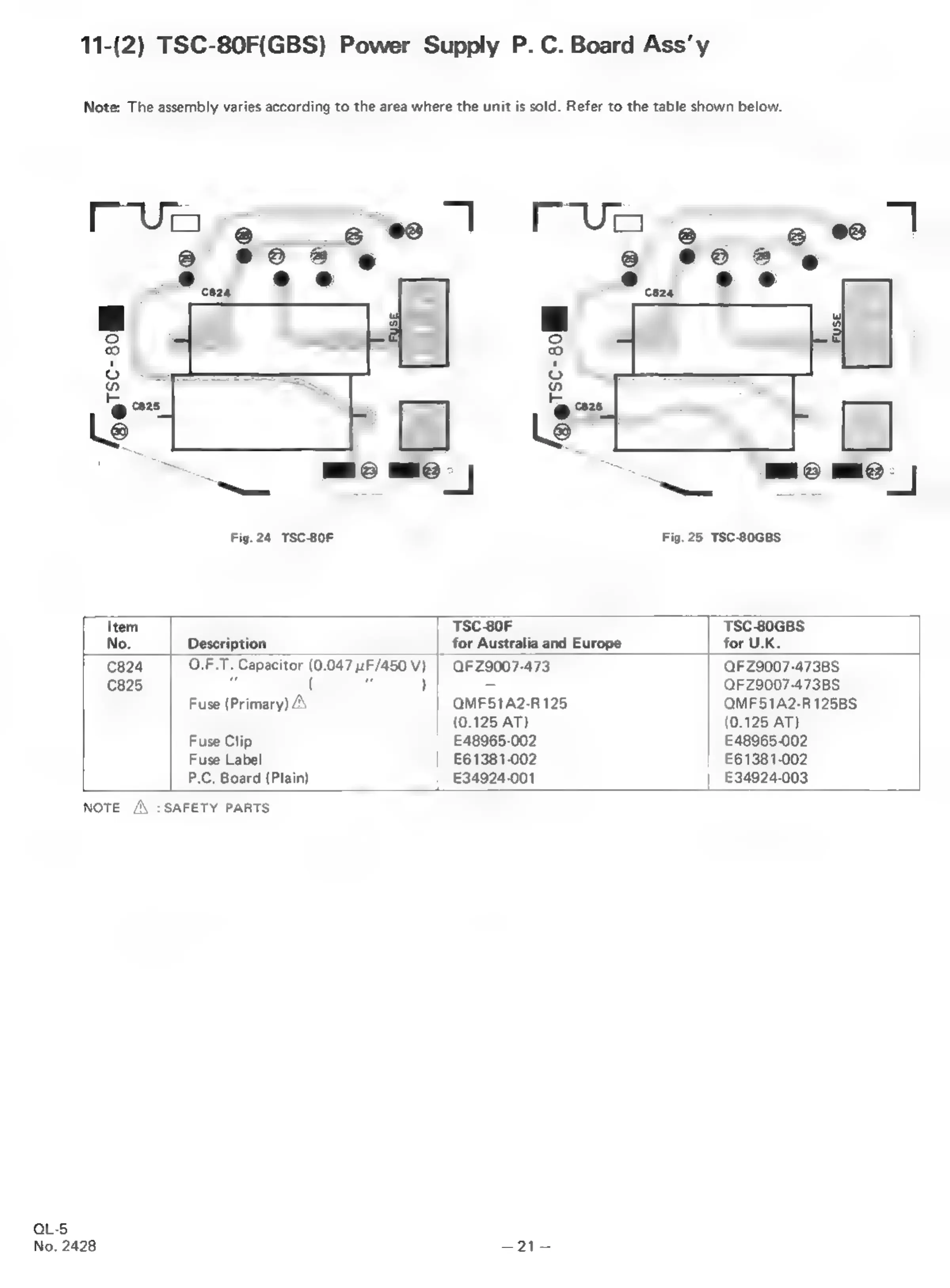

11-(2) TSC-80F(GBS) Power Supply P. C. Board Ass’y
Note: The assembly varies according to the area where the unit is sold. Refer to the table shown below.
caza
Fig. 24 TSC-80F
L_|
mS Gee: |
ee
Fig. 25 TSC-80GBS
Item | 7 | TSC-80F TSC-80GBS
| No. Description | for Australia and Europe | for U.K.
824 | O.F.T. Capacitor (0.047 uF/450V) | QFZ9007-473 QFZ9007-4738S
825 | u ( fe ) - QFZ9007-4738S
Fuse (Primary) A\ QMF51A2-R125 QMF51A2-R 1258S
| (0.125 AT) | (0.125 AT)
Fuse Clip £48965-002 £48965.002
Fuse Label £61381-002 £61381.002
P.C, Board (Plain) £34924.001 £34924.003
NOTE /\ : SAFETY PARTS
QL-5
No. 2428
=4c
