JVC RC-QC7 User Manual

RC-QC7 B/E/EN/G |

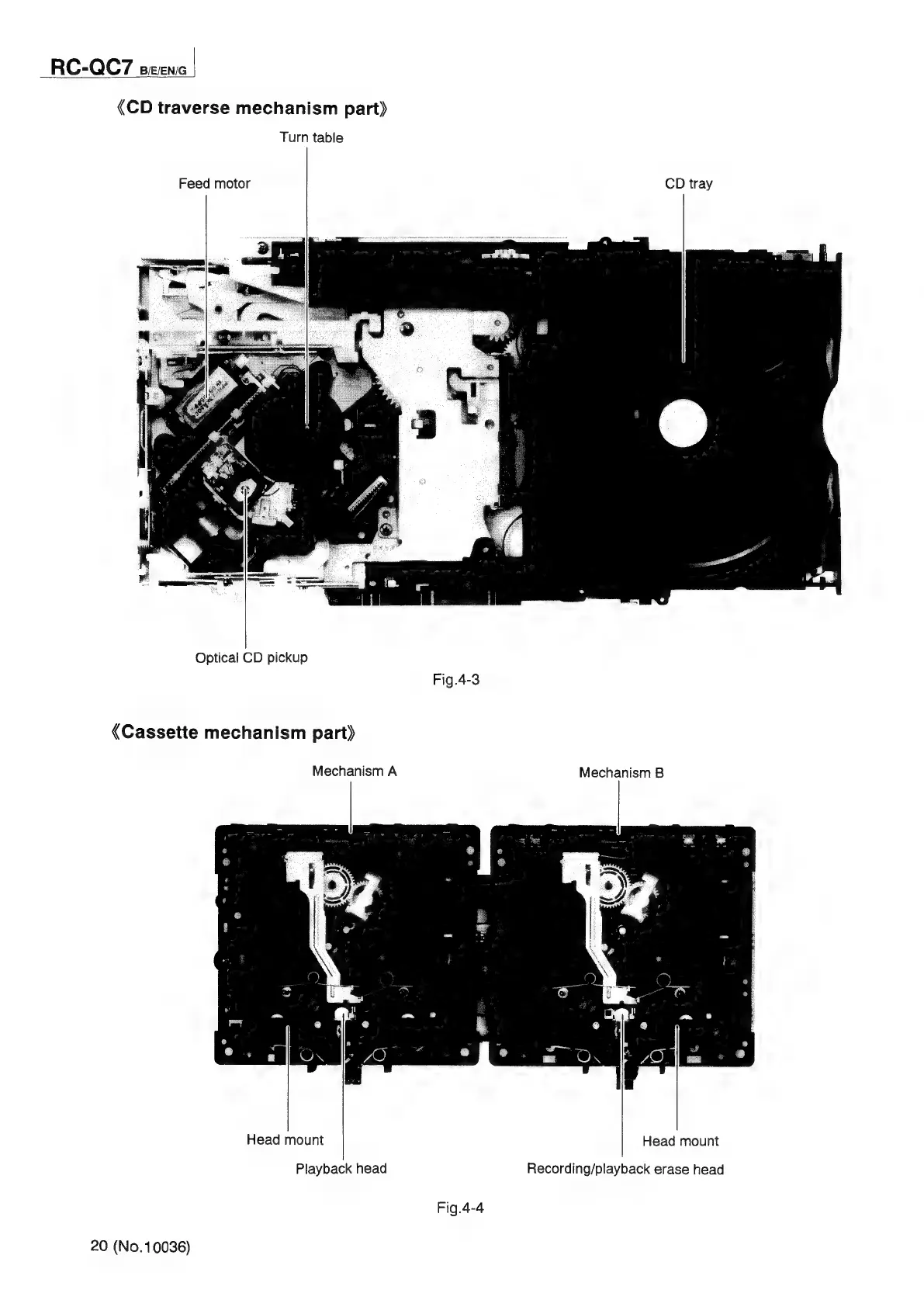

«CD traverse mechanism part)
Turn table
Feed motor CD tray
Optical CD pickup
Fig.4-3
«Cassette mechanism part)
Mechanism A Mechanism B
Head mount Head mount
Playback head Recording/playback erase head
Fig.4-4
20 (No.10036)
