RC-QC7 seenc

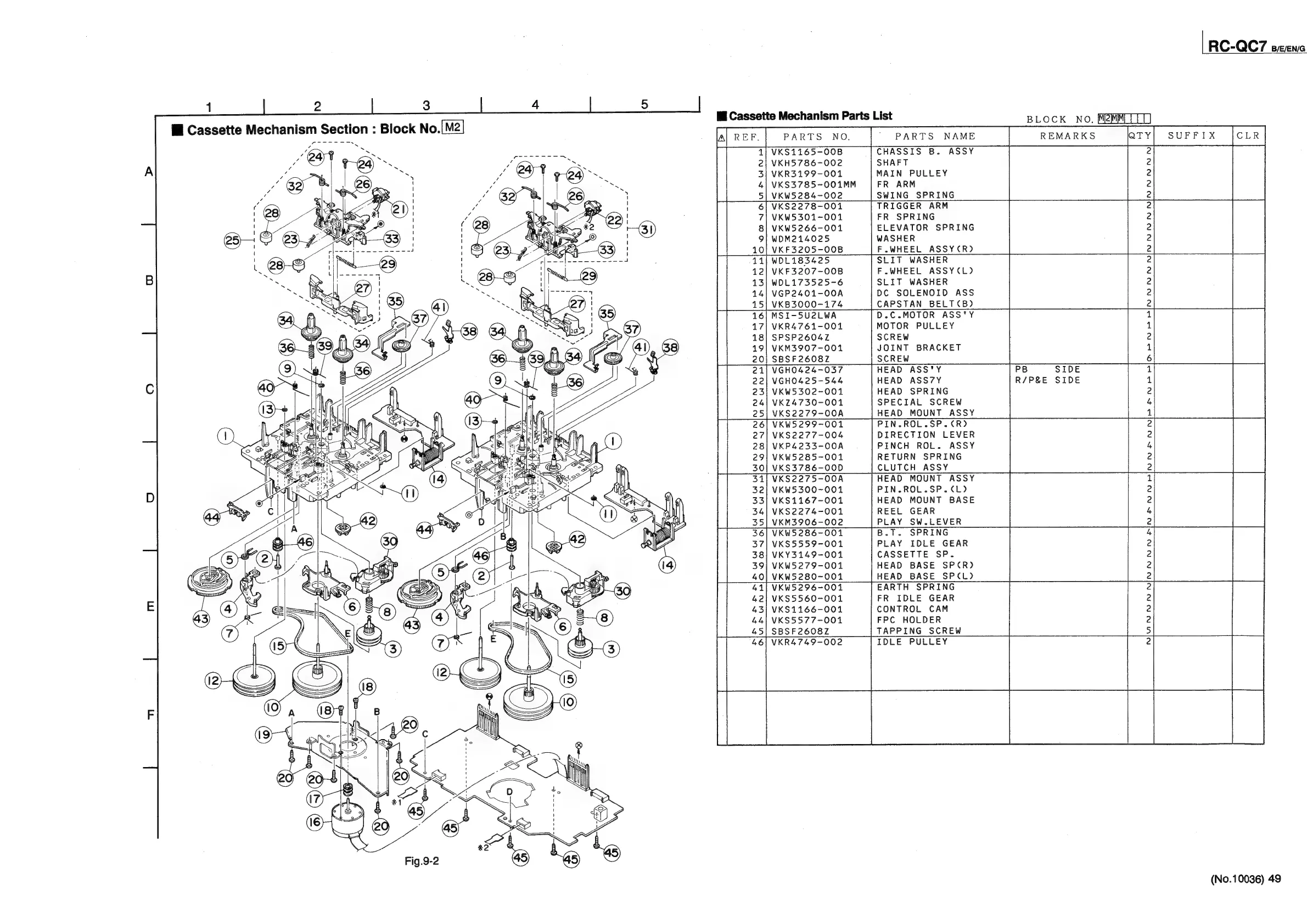

i Cassette Mechanism Parts List BLOCK NO, MeMMTL
pera
;
Al
REF.
|
PARTS
NO.
~
PARTS
NAME
REMARKS
SUFFIX
VKS1165-00B CHASSIS B. ASSY
VKH5786-002 SHAFT
VKR3199-001 MAIN PULLEY
VKS3785-001MM FR ARM
VKW5284-002 SWING SPRING
VKS2278-001 TRIGGER ARM
VKW5301-001 FR SPRING
VKW5266-001 ELEVATOR SPRING
WDM214025 WASHER
VKF3205-00B F.WHEEL ASSY(CR)
WDL183425 SLIT WASHER
VKF3207-00B F.WHEEL ASSY(L)
WDL173525-6 SLIT WASHER
VGP2401-00A DC SOLENOID ASS
VKB3000-174 CAPSTAN BELT(B)
MSI-SU2LWA D.C.MOTOR ASS'Y
VKR4761-001 MOTOR PULLEY
SPSP2604Z SCREW
VKM3907-001 JOINT BRACKET
SBSF26082Z SCREW
VGHO424-037 HEAD ASS'Y
VGHO425-544 HEAD ASS7Y
VKW5302-001 HEAD SPRING
VKZ4730-001 SPECIAL SCREW
VKS2279-00A HEAD MOUNT ASSY
VKW5299-001 PIN.ROL.SP.CR)
VKS2277-004 DIRECTION LEVER
VKP4233-00A PINCH ROL. ASSY
VKW5285-001 RETURN SPRING
VKS3786-00D CLUTCH ASSY
VKS2275-00A HEAD MOUNT ASSY
VKW5300-001 PIN.ROL.SP.(L)
VKS1167-001 HEAD MOUNT BASE
VKS2274-001 REEL GEAR
VKM3906-002 PLAY SW.LEVER
VKW5286-001 B.T. SPRING
VKS5559-001 PLAY IDLE GEAR
VKY3149-001 CASSETTE SP.
VKW5279-001 HEAD BASE SPCR)
VKW5280-001 HEAD BASE SP(L)
VKW5296-001 EARTH SPRING
VKS5560-001 FR IDLE GEAR
VKS1166-001 CONTROL CAM
VKS5577-001 FPC HOLDER
SBSF2608Z TAPPING SCREW
— — 4 Pf
foe SSN
PB SIDE
R/P&E SIDE
NIYMNMNNMNINMNNM AINA MNMPIMNME MNP RNP PIB PNP PINNMNNMNINNMMN MIM NM NN MY
(No.10036) 49
