JVC RC-QC7 - Page 8

(9€001°ON) g
C. Operation on car battery (DC 12 VY)
Optional exciusive car adapter (JVC model CA-R120E)
First connect the car adapter to the DC IN 12 V jack, not the cigarette
lighter socket, because shorting of a plug on the car may cause the
fuse to blow out. In addition, be careful not to make a short-circuit
between the plugs.
@ When using a car battery, be sure to use the specified car adapter
{JVC mode! CA-R120E) to prevent mishaps or damage resulting
from different polarity design.

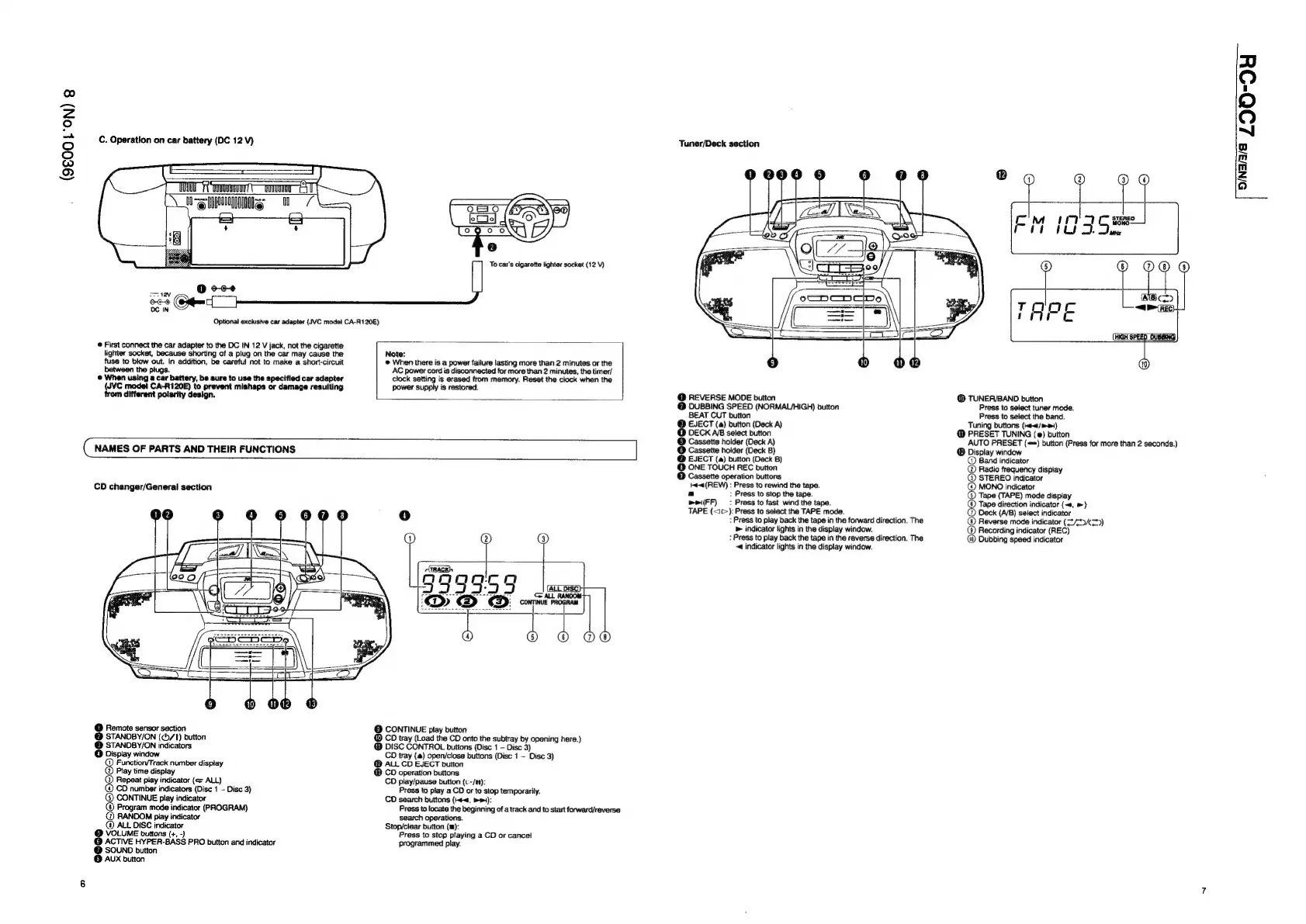

NAMES OF PARTS AND THEIR FUNCTIONS
CD changer/General section
To car's cigarette lighter socket (12 V)
Note:
@ When there is a power failure lasting more than 2 minutes or the
AC power cord is disconnected for more than 2 minutes, the timer/
clock setting is erased from memory. Reset the clock when the
power supply is restored.
@ Remote sensor section
@ STANDBY/ON (<b/1) button
@ STANDBY/ON indicators
© Display window
@ Function/Track number display
@ Play time display
@ Repeat play indicator (= ALL)
@ CO number indicators (Disc 1 — Disc 3)
@ CONTINUE play indicator
@ Program mode indicator (PROGRAM)
@) RANDOM play indicator
@ ALL DISC indicator
@ VOLUME buttons (+, -)
@ ACTIVE HYPER-BASS PRO button and indicator
@ SOUND button
@ AUX button
®
@ CONTINUE play button
@ CD tray (Load the CD onto the subtray by opening here.)
@ DISC CONTROL buttons (Disc 1 - Disc 3)
CD tray (#) open/close buttons (Disc 1 ~ Disc 3)
@ ALL CD EJECT button
® CO operation buttons
CD play/pause button (u>/t):
Press to play a CD or to stop temporarily.
CO search buttons (-e<, me):
Press to locate the beginning of a track and to start forward/reverse
search operations.
Stop/clear button (m):
Press to stop playing a CD or cancel
programmed play.
Tuner/Deck section
@ REVERSE MODE button
@ DUBBING SPEED (NORMAL/HIGH) button
BEAT CUT button
@ EJECT (a) button (Deck A)
@ DECK AVB select button
© Cassette holder (Deck A)
© Cassette holder (Deck B)
@ EJECT (a) button (Deck B)
@ ONE TOUCH REC button
© Cassette operation buttons
xt (REW) : Press to rewind the tape.
a : Press to stop the tape.
mPi(FF) : Press to fast wind the tape.
TAPE (-<1c>): Press to select the TAPE mode.
: Press to play back the tape in the forward direction. The
> indicator lights in the display window.
: Press to play back the tape in the reverse direction. The
~4 indicator lights in the display window.
i
m3
5
Bone
ul.
y
@ TUNEA/BAND button
Press to select tuner mode.
Press to select the band.
Tuning buttons (He-</ ps1)
@ PRESET TUNING (@) button
AUTO PRESET (=) button (Press for more than 2 seconds.)
@® Display window
@ Band indicator
@ Radio frequency display
@ STEREO indicator
MONO indicator
Tape (TAPE) mode display
Tape direction indicator (<«, »)
Deck (A/B) select indicator
(8) Reverse mode indicator (*/)77)
@ Recording indicator (REC)
Dubbing speed indicator
