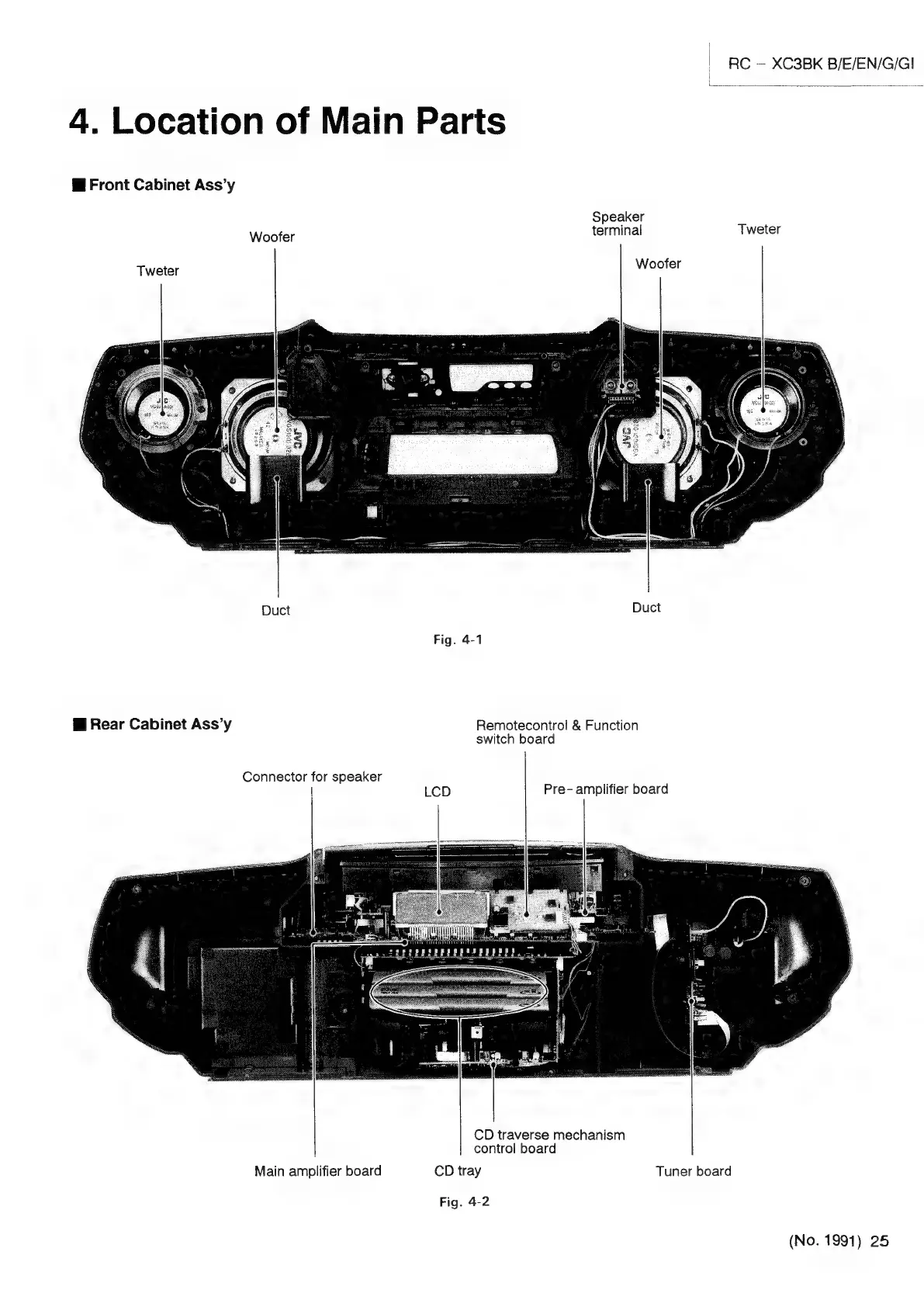

4. Location of Main Parts
@ Front Cabinet Ass’y
Speaker
Woofer
terminal
Tweter
Woofer
Tweter
Duct
Duct
Fig. 4-1
W@ Rear Cabinet Ass’y Remotecontro! & Function
switch board
Connector for speaker
| LCD
Pre- amplifier board
CD traverse mechanism
control board
Main amplifier board CD tray Tuner board
Fig. 4-2
