JVC RC-XC3BK

a
RC — XC3BK B/E/EN/G/GI

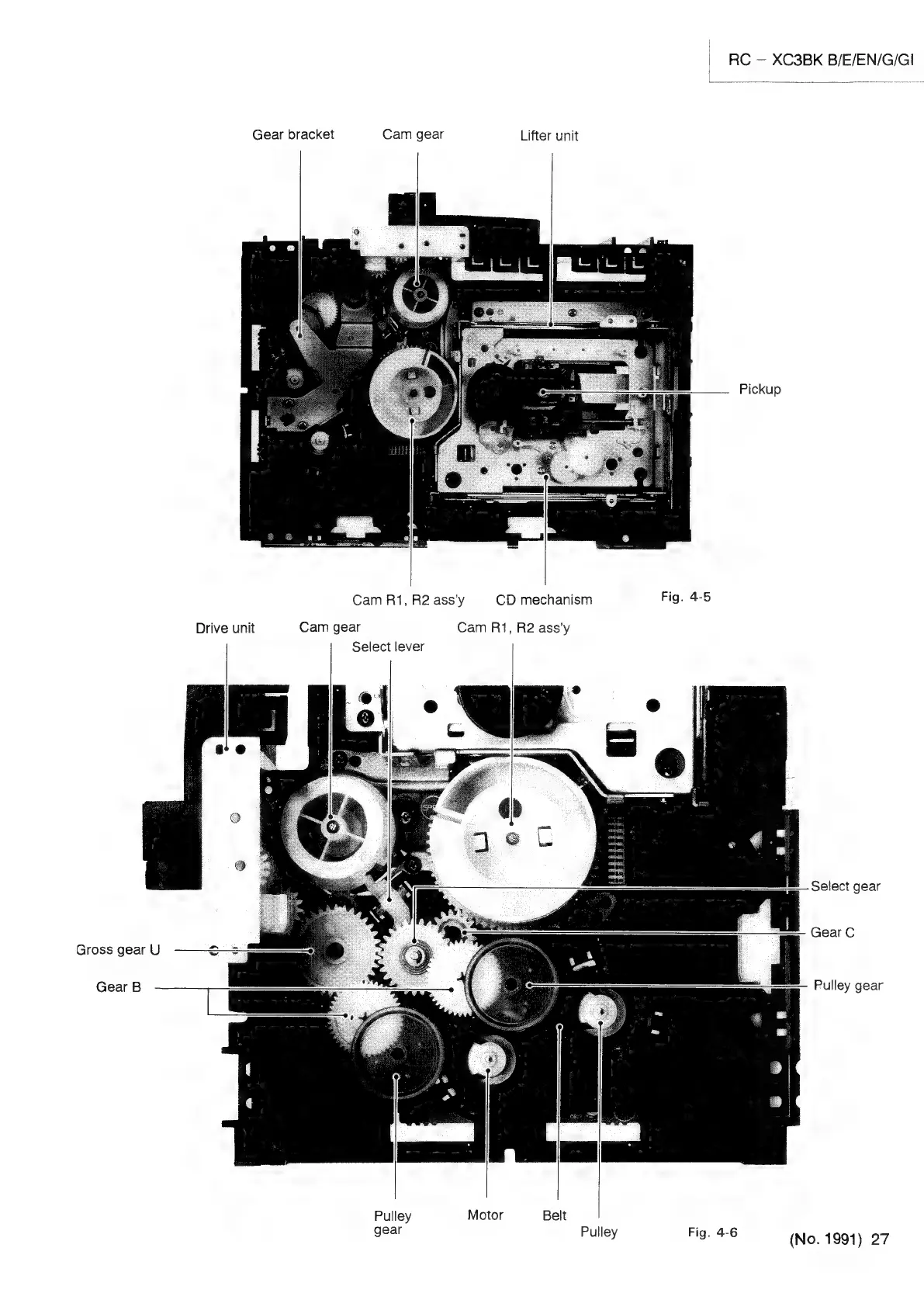

Gear bracket Cam gear Lifter unit
|
Cam R1, R2 ass’y CD mechanism Fig. 4-5
Drive unit Cam gear Cam R1, R2 ass’y
Select lever
I 3!
Select gear
Gear C
Gross gear U
Gear B Pulley gear
Pulley Motor Belt
gear Pulley Fig. 4-6 (No. 1991) 27
