JVC RC-XC3BK User Manual

RC — XC3BK B/E/EN/G/GI
M

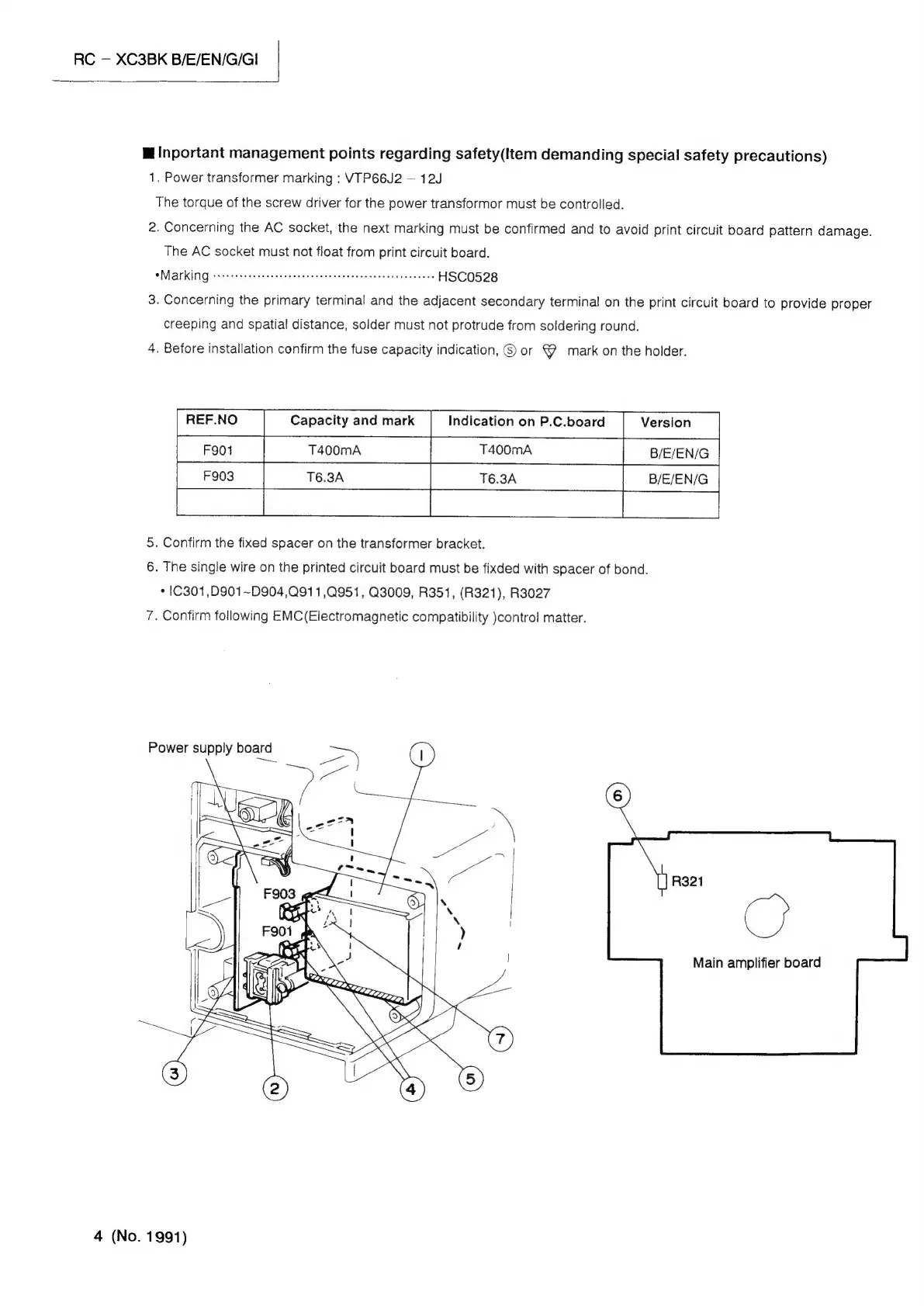

Inportant
management
points
regarding
safety(Item
demanding
special
safety
precautions)
1. Power transformer marking : VTP66J2 — 12J
The torque of the screw driver for the power transformor must be controlled.
2.
Concerning
the
AC
socket,
the
next
marking
must
be
confirmed
and
to
avoid
print
circuit
board
pattern
damage.
The AC socket must not float from print circuit board.
*Marking HSC0528
3.
Concerning
the
primary
terminal
and
the
adjacent
secondary
terminal
on
the
print
circuit
board
to
provide
proper
creeping and spatial distance, solder must not protrude from soldering round.
4.
Before
installation
confirm
the
fuse
capacity
indication,
©
or
Y
mark
on
the
holder.
Indication on P.C.board Version
T400mA B/E/EN/G
T6.3A B/E/EN/G
5. Confirm the fixed spacer on the transformer bracket.
6.
The
single
wire
on
the
printed
circuit
board
must
be
fixded
with
spacer
of
bond.
* 1C301,D901~D904,Q911,Q951, Q3009, R351, (R321), R3027
7. Confirm following EMC(Electromagnetic compatibility )contro! matter.
Capacity and mark
T400mA
Power supply board = Ci)
©;
Main amplifier board
4 (No. 1991)

JVC RC-XC3BK Specifications

General

Brand	JVC
Model	RC-XC3BK
Category	CD Player
Language	English
