RC — XC3BK B/E/EN/G/GI |
Error - identified
times
|
48 (No. 1991)

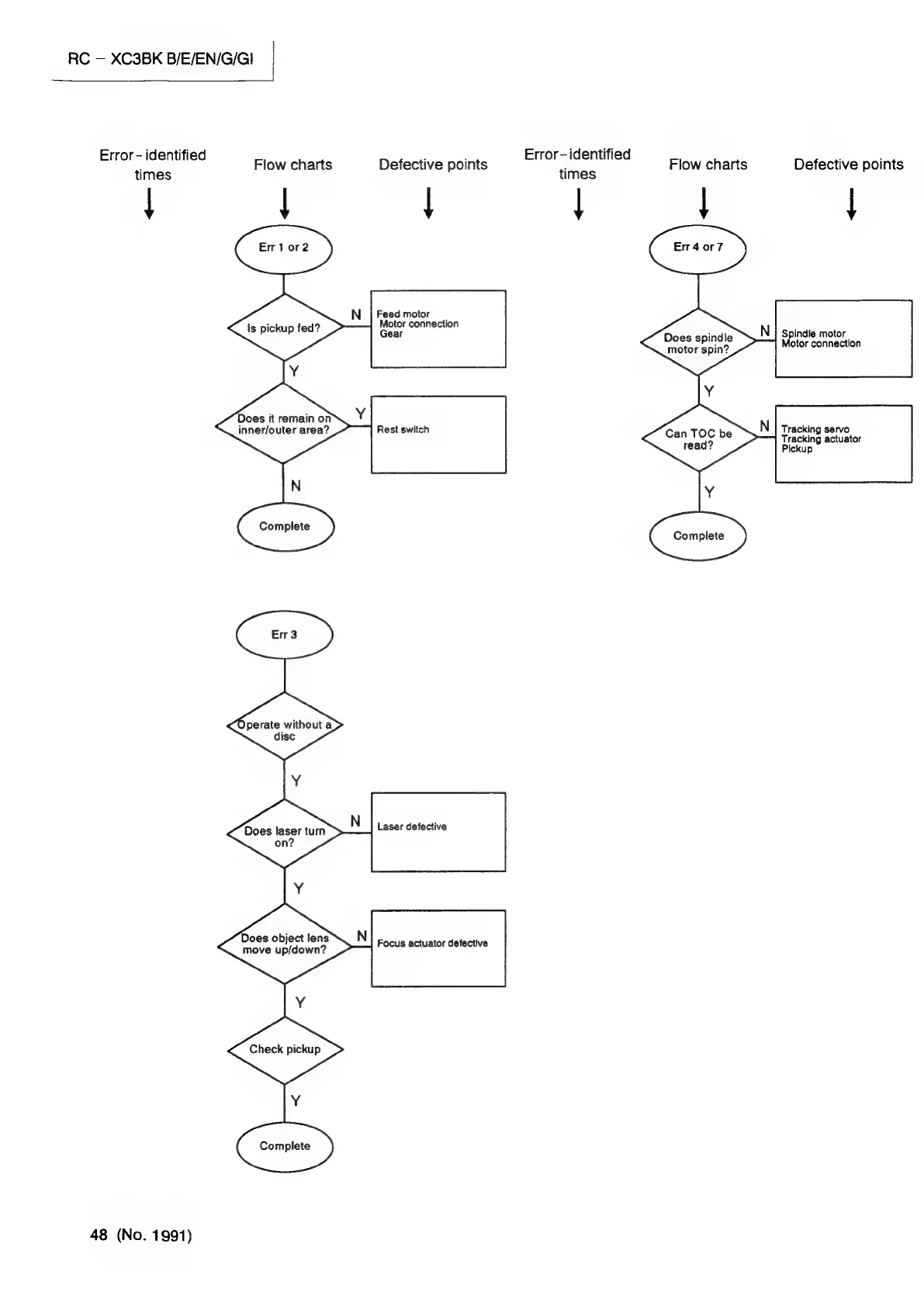

Flow charts Defective points eels Flow charts Defective points
! | | | |
Feed motor
Motor connection
Gear
Spindle motor
Motor connection
Does spindle
motor spin?
Does it remain on
inner/outer area? Rest switch Tracking servo
Tracking actuator
Pickup
Can TOC be
read?
Complete
Operate without a
disc
Laser defective
Does laser turn
on?
Does object lens
move up/down? Focus actuator defective
Complete
