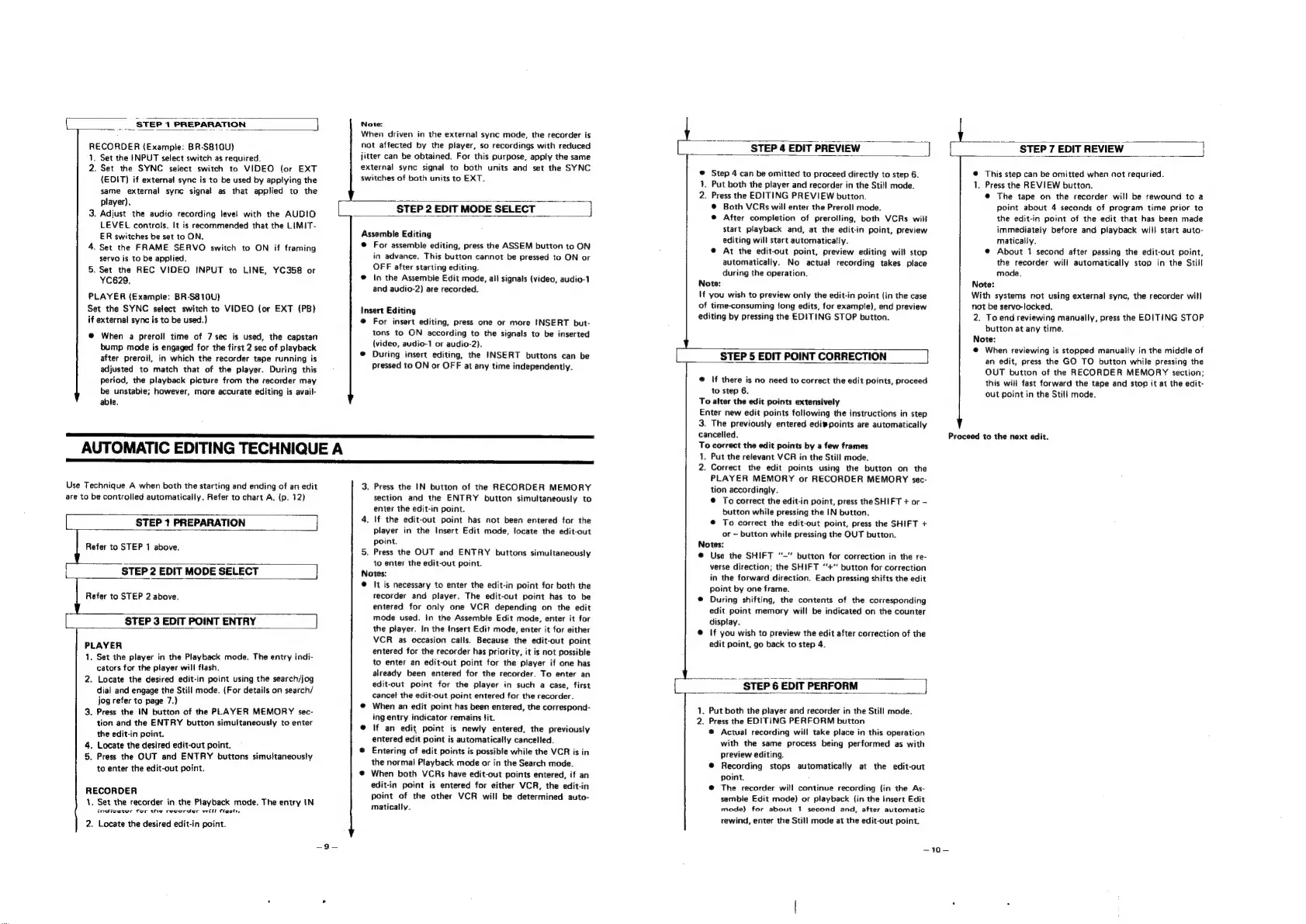

STEP 1 PREPARATION
RECORDER (Example: BR-S810U)
1, Set the INPUT select switch as required.
2. Set the SYNC select switch to VIDEO (or EXT
(EDIT) if external sync is to be used by applying the
same external sync signal as that applied to the
player).
3. Adjust the audio recording level with the AUDIO
LEVEL controls. It is recommended that the LIMIT-
ER switches be set to ON.
4. Set the FRAME SERVO switch to ON if framing
servo is to be applied.
5. Set the REC VIDEO INPUT to LINE, YC358 or
YC629.
PLAYER (Example: BR-S810U)
Set the SYNC select switch to VIDEO (or EXT (PB)
if external sync is to be used.)
@ When a preroll time of 7 sec is used, the capstan
bump mode is engaged for the first 2 sec of playback
after preroil, in which the recorder tape running is
adjusted to match that of the player. During this
period, the playback picture from the recorder may
be unstable; however, more accurate editing is avail-
able.
Note:
When driven in the external sync mode, the recorder is
not affected by the player, so recordings with reduced
jitter can be obtained. For this purpose, apply the same
external sync signal to both units and set the SYNC
switches of both units to EXT.
STEP 4 EDIT PREVIEW
STEP 7 EDIT REVIEW
STEP 2 EDIT MODE SELECT ]
Assemble Editing
@ For assemble editing, press the ASSEM button to ON
in advance. This button cannot be pressed to ON or
OFF after starting editing.
@ In the Assemble Edit mode, all signals (video, audio-1
and audio-2) are recorded.
Insert Editing
For insert editing, press one or more INSERT but-
tons to ON according to the signals to be inserted
(video, audio-1 or audio-2).
During insert editing, the INSERT buttons can be
pressed to ON or OFF at any time independently.
SS,
AUTOMATIC EDITING TECHNIQUE A
Use Technique A when both the starting and ending of an edit
are to be controlled automatically. Refer to chart A. (p. 12)
STEP 1 PREPARATION |
Refer to STEP 1 above.
STEP 2 EDIT MODE SELECT
Refer to STEP 2 above.
STEP 3 EDIT POINT ENTRY
PLAYER
1. Set the player in the Playback mode. The entry indi-
cators for the player will fiash.
2. Locate the desired edit-in point using the search/jog
dial and engage the Still mode. (For details on search/
jog refer to page 7.)
3. Press the IN button of the PLAYER MEMORY sec-
tion and the ENTRY button simultaneously to enter
the edit-in point.
4. Locate the desired edit-out point.
5. Press the OUT and ENTRY buttons simultaneously
to enter the edit-out point.
RECORDER
1. Set the recorder in the Playback mode. The entry IN
insisater fer the reverder will tasty,
2. Locate the desired edit-in point.
3.
5.
Press the IN button of the RECORDER MEMORY
section and the ENTRY button simultaneously to
enter the edit-in point.
. If the edit-out point has not been entered for the
player in the Insert Edit mode, locate the edit-out
point.
Press the OUT and ENTRY buttons simultaneously
to enter the edit-out point.
Notes:
It is necessary to enter the edit-in point for both the
recorder and player. The edit-out point has to be
entered for only one VCR depending on the edit
mode used. in the Assembie Edit mode, enter it for
the player. In the Insert Edit mode, enter it for either
VCR as occasion calls. Because the edit-out point
entered for the recorder has priority, it is not possible
to enter an edit-out point for the player if one has
already been entered for the recorder. To enter an
edit-out point for the player in such a case, first
cancel the edit-out point entered for the recorder.
When an edit point has been entered, the correspond-
ing entry indicator remains fit.
If an edit point is newly entered, the previously
entered edit point is automatically cancelled.
Entering of edit points is possible while the VCR is in
the normal Playback mode or in the Search mode.
When both VCRs have edit-out points entered, if an
edit-in point is entered for either VCR, the edit-in
point of the other VCR will be determined auto-
matically.
@ Step 4 can be omitted to proceed directly to step 6.
. Put both the player and recorder in the Still mode.
2. Press the EDITING PREVIEW button.
© Both VCRs will enter the Preroll mode.
® After completion of prerolling, both VCRs wilt
start playback and, at the edit-in point, preview
editing will start automatically.
@ At the edit-out point, preview editing will stop
automatically. No actual recording takes place
during the operation.
Note:
If you wish to preview only the edit-in point (in the case
of time-consuming !ong edits, for example), end preview
editing by pressing the EDITING STOP button.
—
STEP 5 EDIT POINT CORRECTION
@ if there is no need to correct the edit points, proceed
to step 6.
To alter the edit points extensively
Enter new edit points following the instructions in step
3. The previously entered edi® points are automatically
cancelled.
To correct the edit points by a few frames
1. Put the relevant VCR in the Still mode.
2. Correct the edit points using the button on the
PLAYER MEMORY or RECORDER MEMORY sec-
tion accordingly.
® To correct the edit-in point, press the SHIFT + or -
button while pressing the IN button.
®@ To correct the edit-out point, press the SHIFT +
or ~ button while pressing the OUT button.
Notes:
@ Use the SHIFT ‘’-"’ button for correction in the re-
verse direction; the SHIFT “+” button for correction
in the forward direction. Each pressing shifts the edit
point by one frame.
® During shifting, the contents of the corresponding
edit point memory will be indicated on the counter
disptay.
@ (tf you wish to preview the edit after correction of the
edit point, go back to step 4.
@ This step can be omitted when not requried.
1. Press the REVIEW button.
@ The tape on the recorder will be rewound to a
point about 4 seconds of program time prior to
the edit-in point of the edit that has been made
immediately before and playback will start auto-
matically.
@ About 1 second after passing the edit-out point,
the recorder will automatically stop in the Still
mode,
Note:
With systems not using external sync, the recorder will
not be servo-locked.
1. Put both the player and recorder in the Still mode.
2. Press the EDITING PERFORM button
@ Actual recording will take place in this operation
with the same process being performed as with
preview editing.
@ Recording stops automatically at the edit-out
point.
@ The recorder will continue recording (in the As-
sembie Edit mode) or playback (in the insert Edit
mode) for about 1 second and, after automatic
rewind, enter the Still mode at the edit-out point.
-—10—
STEP 6 EDIT PERFORM ; ]
2. To end reviewing manually, press the EDITING STOP
button at any time.
Note:
@ When reviewing is stopped manually in the middle of
an edit, press the GO TO button while pressing the
OUT button of the RECORDER MEMORY section;
this will fast forward the tape and stop it at the edit-
out point in the Still mode.
Proceed to the next edit.
