RX-SO8VBK
RX-509VTN
Selecting o Program
Selecting o Center
Channel Mode
CENTER MODE
Page 22
1-24 (No. 20376)

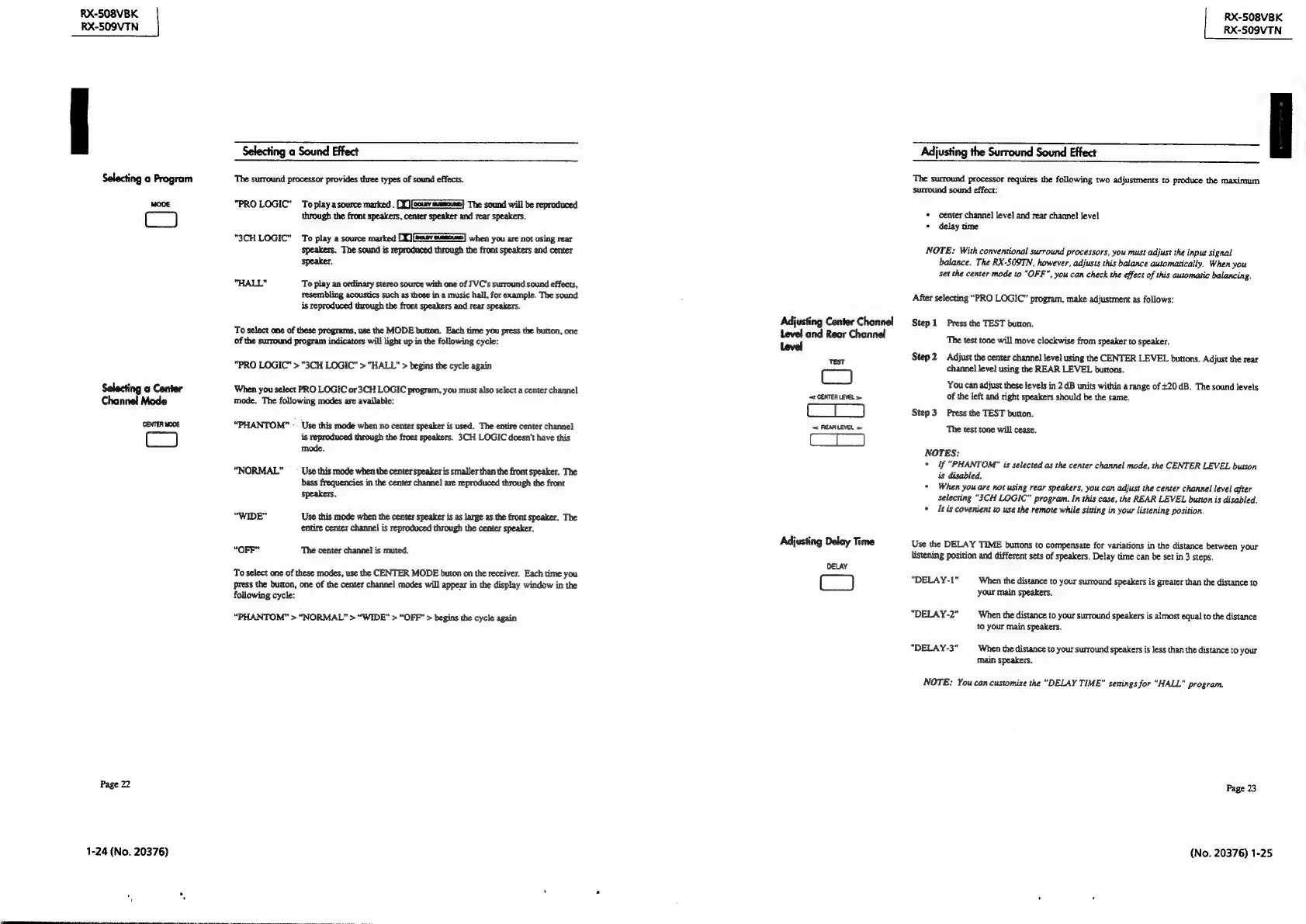

Selecting a Sound Effect
The surround processor provides three types of sound effects.
"PRO LOGIC" Toplay asource marked . [X)[oouy sumo} The sound will be reproduced
through the front speakers, center speaker and rear speakers.
"3CH LOGIC” To play a source marked [IX] [bas¥ suancies)] when you are not using rear
speakers. The sound is reproduced through the front speakers and center
speaker.
To play an ordinary stereo source with one of JVC's surround sound effects,
resembling acoustics such as those in a music hall, for example. The sound
is reproduced through the front speakers and rear speakers.
;
To select one of these programs, use the MODE button. Each time you press the button, one
of the surround program indicators will light up in the following cycle:
“PRO LOGIC" > "3CH LOGIC” > "HALL" > begins the cycle again
When you select PRO LOGIC or 3CH LOGIC program, you must also select a center channel
mode. The following modes are available:
“PHANTOM” _ Use this mode when no center speaker is used. The entire center channel
is reproduced through the front speakers. 3CH LOGIC doesn't have this
mode.
“NORMAL” _ Use this mode when the center speaker is smaller than the front speaker. The
bass frequencies in the center channel are reproduced through the front
speakers.
“WIDE” Use this mode when the center speaker is as large as the front speaker. The
entire center channel is reproduced through the center speaker.
“OFF” The center channel is muted.
To select one of these modes, use the CENTER MODE buton on the receiver. Each time you
press the button, one of the center channel modes will appear in the display window in the
following cycle:
“PHANTOM” > “NORMAL” > “WIDE” > “OFF” > begins the cycle again
Adjusting Center Channel
Level and Rear Channel
Level
Test
C2)
~< CENTER LEVEL >
Cars
<< REARLEVEL >
eat ae
Adjusting Delay Time
DELAY
RX-SO8VBK
RX-SO9VTN
Adjusting the Surround Sound Effect
The surround processor requires the following two adjustments to produce the maximum
surround sound effect:
* center channel level and rear channel! level
¢ delay time
NOTE: With conventional surround processors, you must adjust the input signal
balance. The RX-SO9TN, however, adjusts this balance automatically. When you
Set the center mode to “OFF”, you can check the effect of this automatic balancing.
After selecting “PRO LOGIC” program, make adjustment as follows:
Step 1 Press the TEST button.
The test tone will move clockwise from speaker to speaker,
Step 2 Adjust the center channel level using the CENTER LEVEL buttons. Adjust the rear
channel level using the REAR LEVEL buttons.
You can adjust these levels in 2 dB units within a range of +20 dB. The sound levels
of the left and right speakers should be the same.
Step 3 Press the TEST button.
The test tone will cease.
NOTES:
* If “PHANTOM” is selected as the center channel mode, the CENTER LEVEL bution
is disabled.
* When you are not using rear speakers, you can adjust the center channel level after
selecting “3CH LOGIC" program. In this case, the REAR LEVEL button is disabled.
* It is covenient to use the remote while sitting in your listening position.
Use the DELAY TIME buttons to compensate for variations in the distance between your
listening position and different sets of speakers. Delay time can be set in 3 steps.
“DELAY-1"
When
the
distance
to
your
surround
speakers
is
greater
than
the
distance
to
your
main
speakers.
"DELAY-2" When the distance to your surround speakers is almost equal to the distance
to your main speakers.
"DELAY-3" When the distance to your surround speakers is less than the distance to your
main speakers.
NOTE: You can customize the “DELAY TIME” settings for “HALL” program.
