1-10 (No.MB105)
3.1.15 Removing the FL board
(See Fig.16)
• Prior to perform the following procedures, remove the top
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the six
screws V attaching the FL board.
(2) Disconnect the wire from the connector CN403
on the FL
board.
(3) Disconnect the connector CN404
on the FL board in an
upward direction.
3.1.16 Removing the volume board
(See Fig.16)
• Prior to perform the following procedures, remove the top
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove three
screws W attaching the volume board.
(2) Disconnect the wire from the connector CN403
on the FL
board.

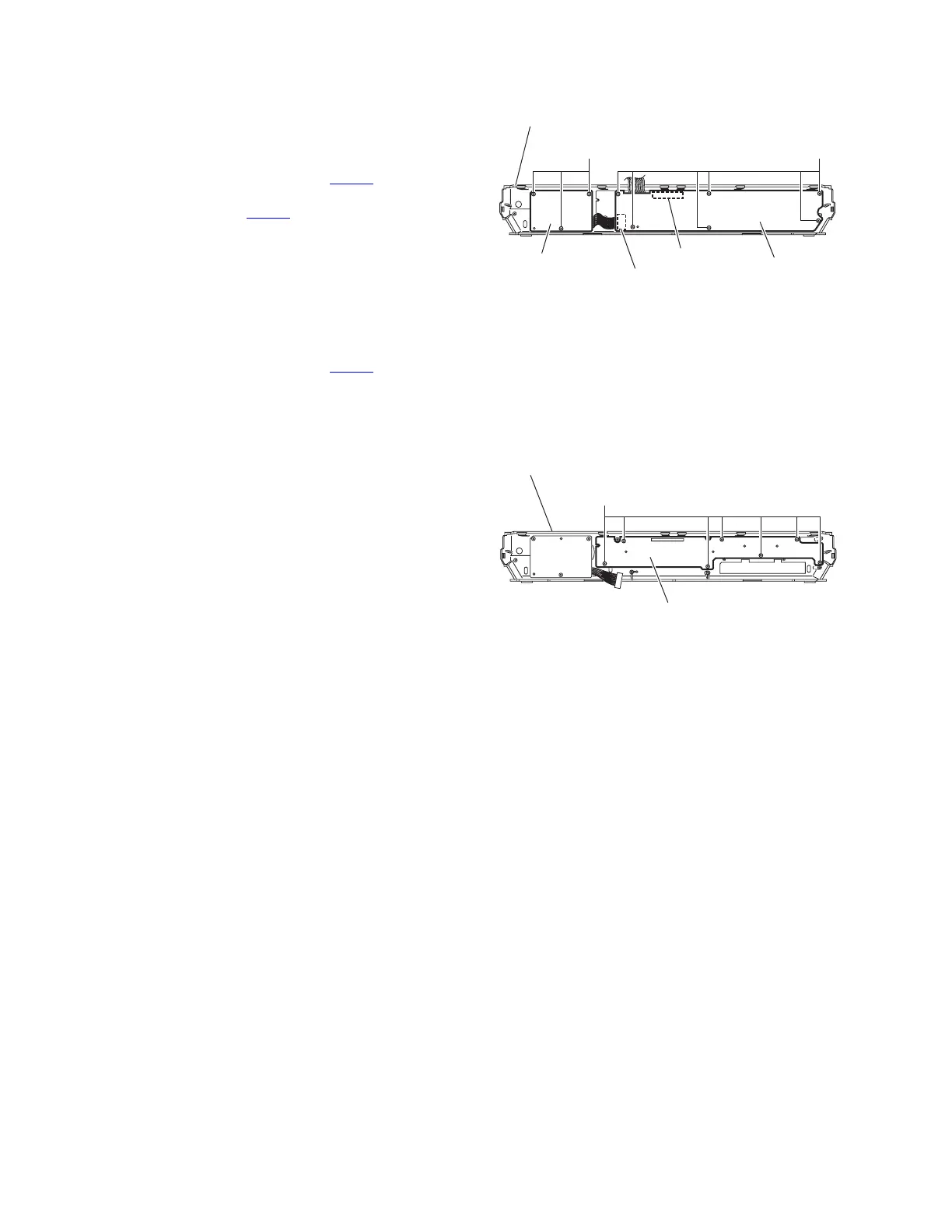

Fig.16
3.1.17 Removing the SW board
(See Fig.16)
• Prior to perform the following procedure, remove the top cover,
front panel assembly and FL board.
(1) From the inside of the front panel assembly, remove the
seven screws X attaching the SW board.
Fig.17
WV
Front panel assembly
FL board
Volume board
CN403
CN404
X
Front panel assembly
SW board
To Next Page
