JVC SP-DXU10W - Removing the REAR PANEL

(No.MB616<Rev.002>)1-13
3.1.7 Removing the REAR PANEL
(See Fig.15, 16)
(1) Remove the four screws J attaching the HEAT SINK by or-
der. (See Fig.15)
(2) Remove the five screws K attaching the REAR PANEL.
(See Fig.15)
(3) Disengage two hooks b engaged both side of the REAR
PANEL. (See Fig.16)

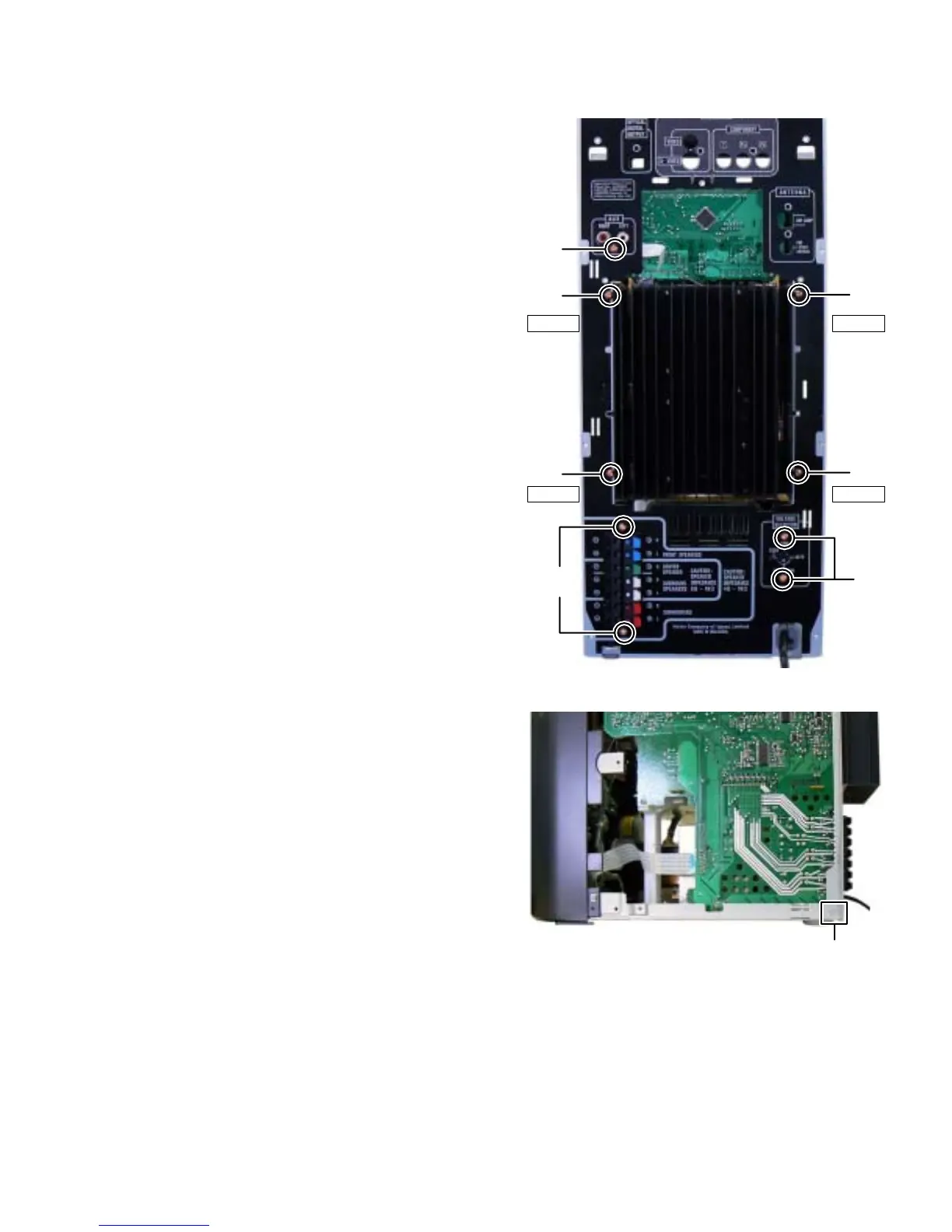

Fig.15
Fig.16
order 1 order 2
order 3 order 4
J
J
J
J
K
K
K
hook b
