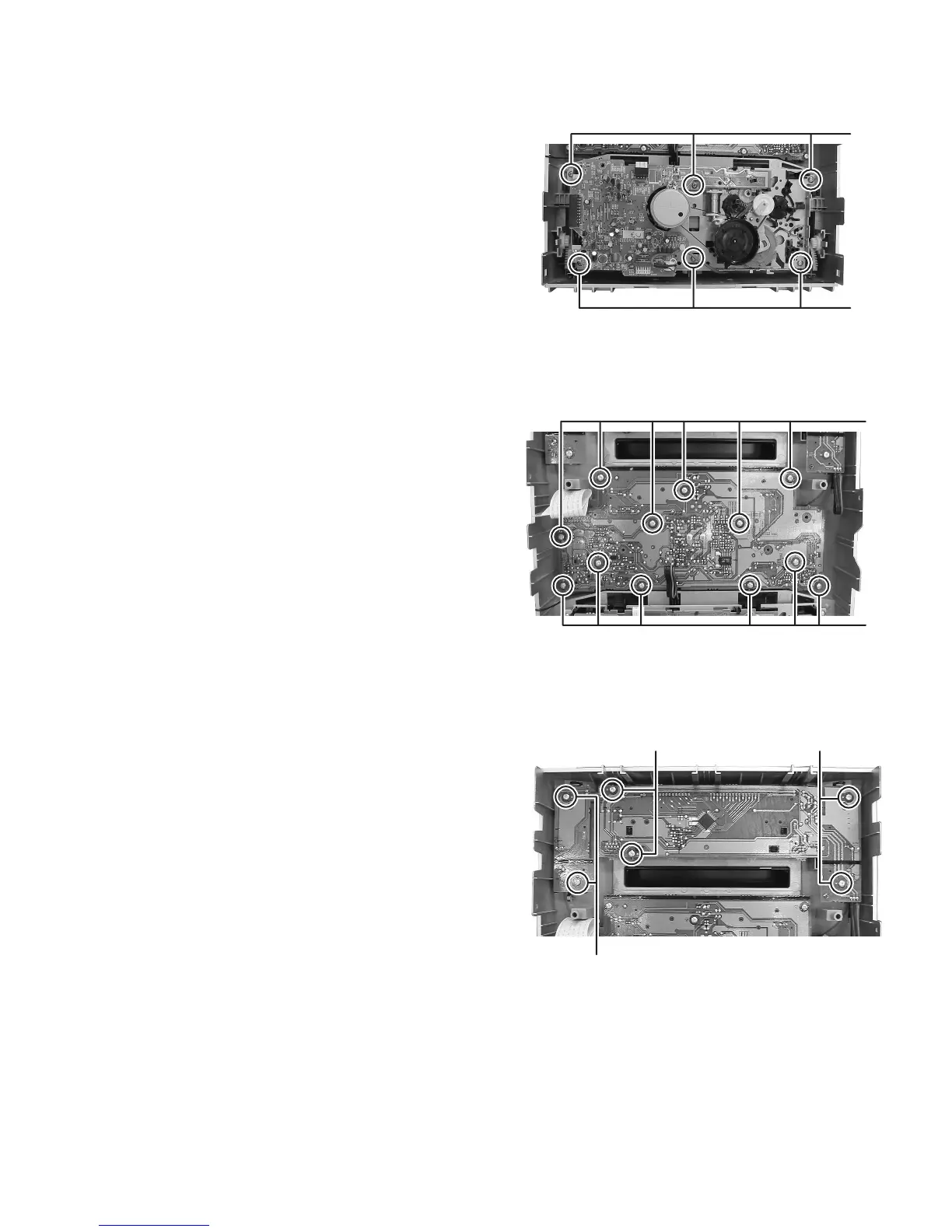

3.1.11 Removing the cassette mechanism assembly
(See Fig.13)
(1) Remove the six screws Q attaching the cassette mecha-
nism assembly.
Fig.13
3.1.12 Removing the switch board
(See Fig.14)
(1) Take out the volume knob.
(2) Remove the twelve screws R attaching the switch board.
Fig.14
3.1.13 Removing the FL board
(See Fig.15)
(1) Remove the four screws S attaching the FL board.
(2) Remove the two screws T attaching the open/close switch
board.
Fig.15
Q
Q
R
R
SS
T
