(No.MB515)1-9
3.1.2

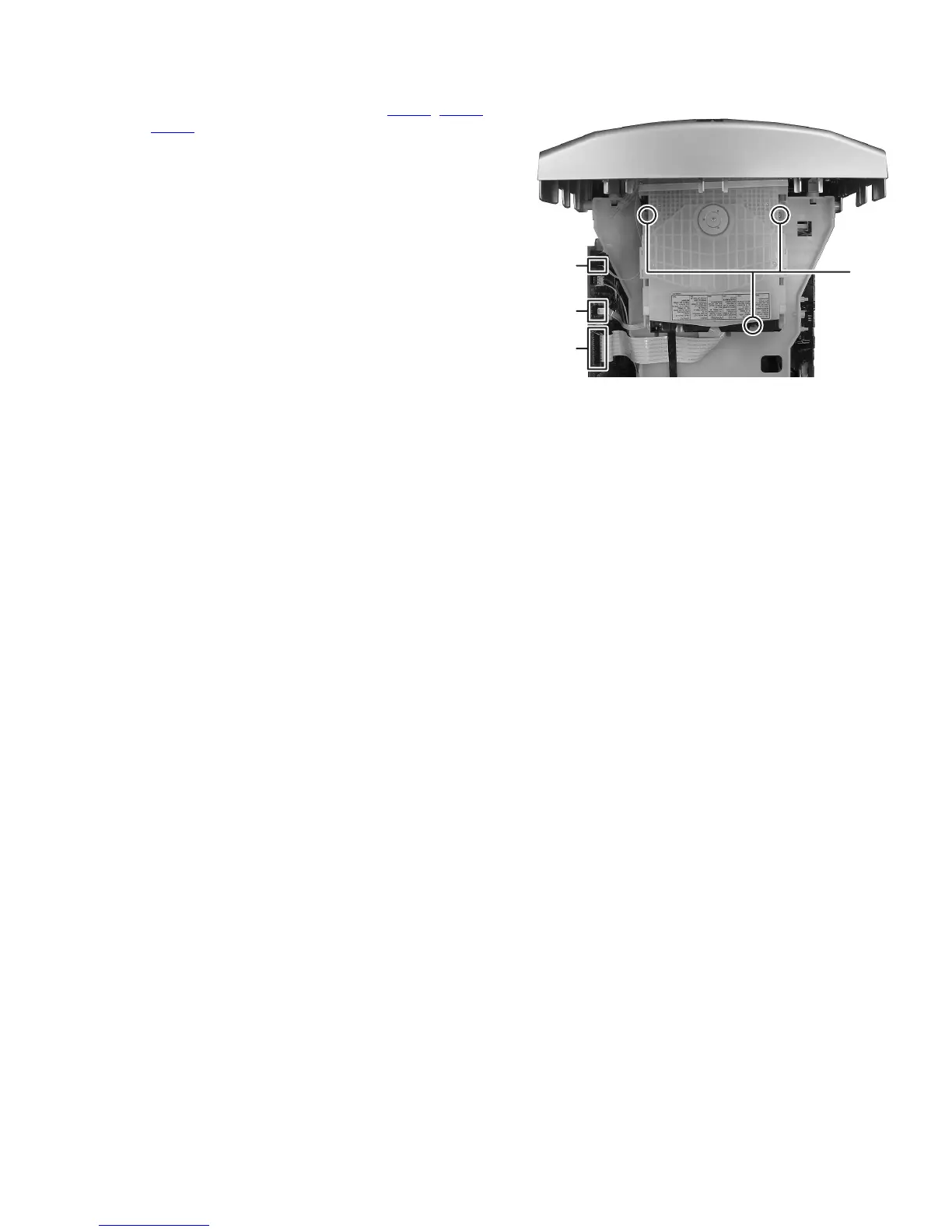

Removing the DVD mechanism assembly
(See Fig.3)
(1)
Disconnect the card wires from connector
CN3
00
,
CN301
and
CN303
of the main board.
(2)
Remove the three screws
C
attaching the DVD mecha-
nism assembly.
Fig.3
C
CN300
CN301
CN302
8
10
Table of Contents
Service Manual
1
Table of Contents
1
Precaution
4
Specific Service Instructions
7
Disassembly
8
See Fig.
9
See Fig.
12
See Fig.
13
See Fig.
14
No.mb515)1
18
Adjustment
19
Troubleshooting
21
Parts List
23
Exploded View of General Assembly and Parts List (Block No.m1)
24
DVD Mechanism Assembly and Parts List (Block No.mj)
28
DVD Loading Base Assembly and Parts List (Block No.mn)
30
Cassette Mechanism Assembly and Parts List (Block No.mp)
32
Electrical Parts List (Block No.01~06)
34
Packing Materials and Accessories Parts List (Block No.m3) (MX-DK1US,MX-DK1UW,MX-DK1UG,MX-DK1UN,MX-DK15UN)
46
Packing Materials and Accessories Parts List (Block No.m4) (MX-DK3US,MX-DK3UW,MX-DK3UG,MX-DK3UN)
48
No.mb515
50
Block Diagram
52
