JVC SP-MXDK3F Service Manual

1-12 (No.MB515)

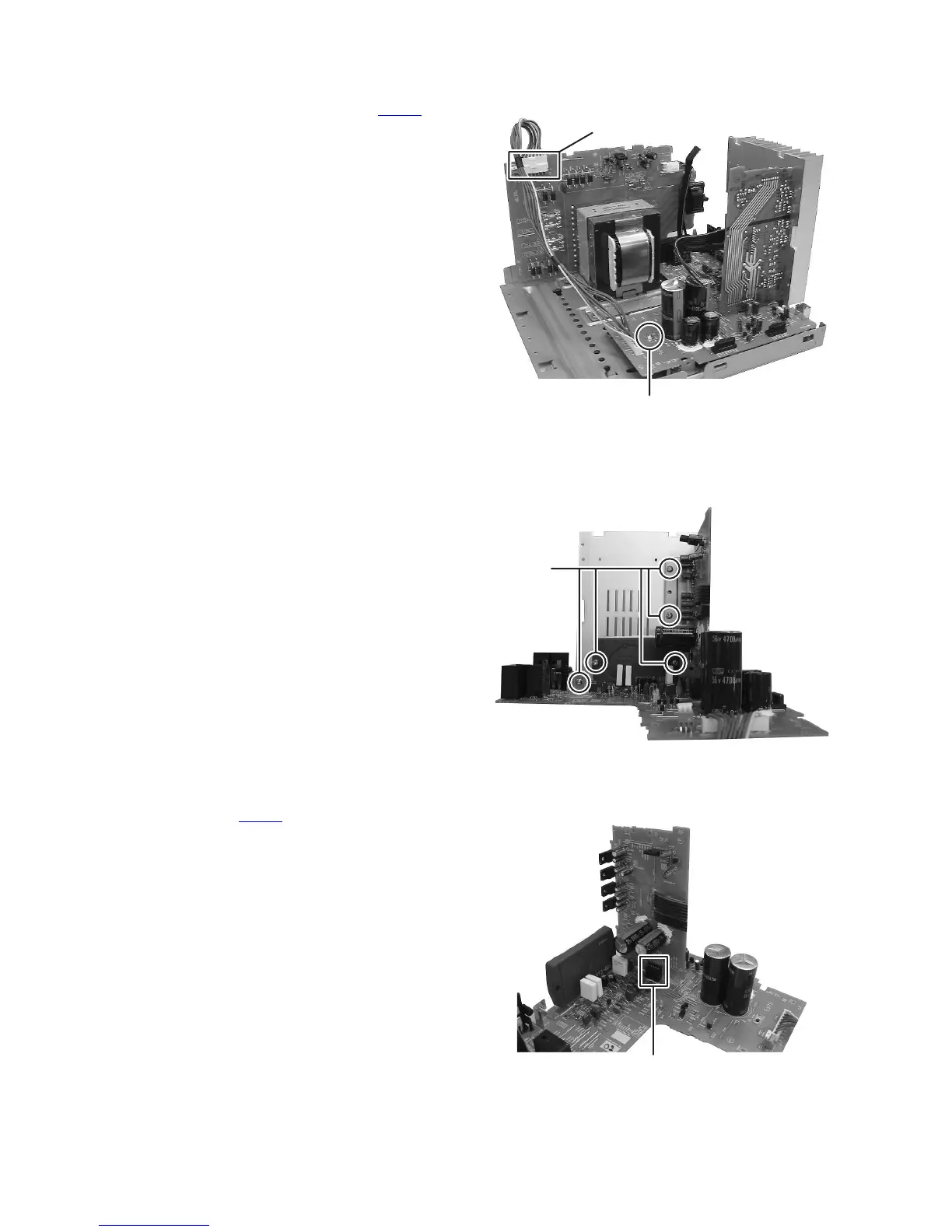

3.1.8 Removing the primary board
(See Fig. 10)
(1) Disconnect the connector wire from connector CN119
of
the transformer board.
(2) Remove the one screw N attaching the primary board.
Fig.10
3.1.9 Removing the heat sink
(See Fig. 11)
(1) Remove the five screws P attaching the heat sink.
Fig.11
3.1.10 Removing the regulator board
(See Fig. 12)
(1) Disconnect the connector CN160
connect to primary board
and regulator board.
Fig.12
N
CN119
P
CN160
