JVC SP-PW880 - Page 3

SP-PW880
1-3
Remove the saran board assembly from the cabinet
assembly while releasing the four corner joints
toward the front.
Remove the eight screws A attaching the speaker.
Disconnect the fasten connected to the speaker
terminal on the back of the speaker.
1.
2.
3.
Disassembly method
<Main body>
Removing the speaker (See Fig.1 and 2)
Remove the two screws B attaching the LED
indicator board assembly on the front side of the
speaker box.
Disconnect the harness from connector CN404 on
the LED indicator board assembly.
Remove the two screws C and the panel.
1.
2.
3.
Removing the LED indicator board
assembly (See Fig.3)
Removing the amplifier assembly
(See Fig.4)
Remove the eleven screws D attaching the amplifier
board on the back of the body.
Disconnect each relay harness connected to the
speaker and the LED indicator board.
1.
2.

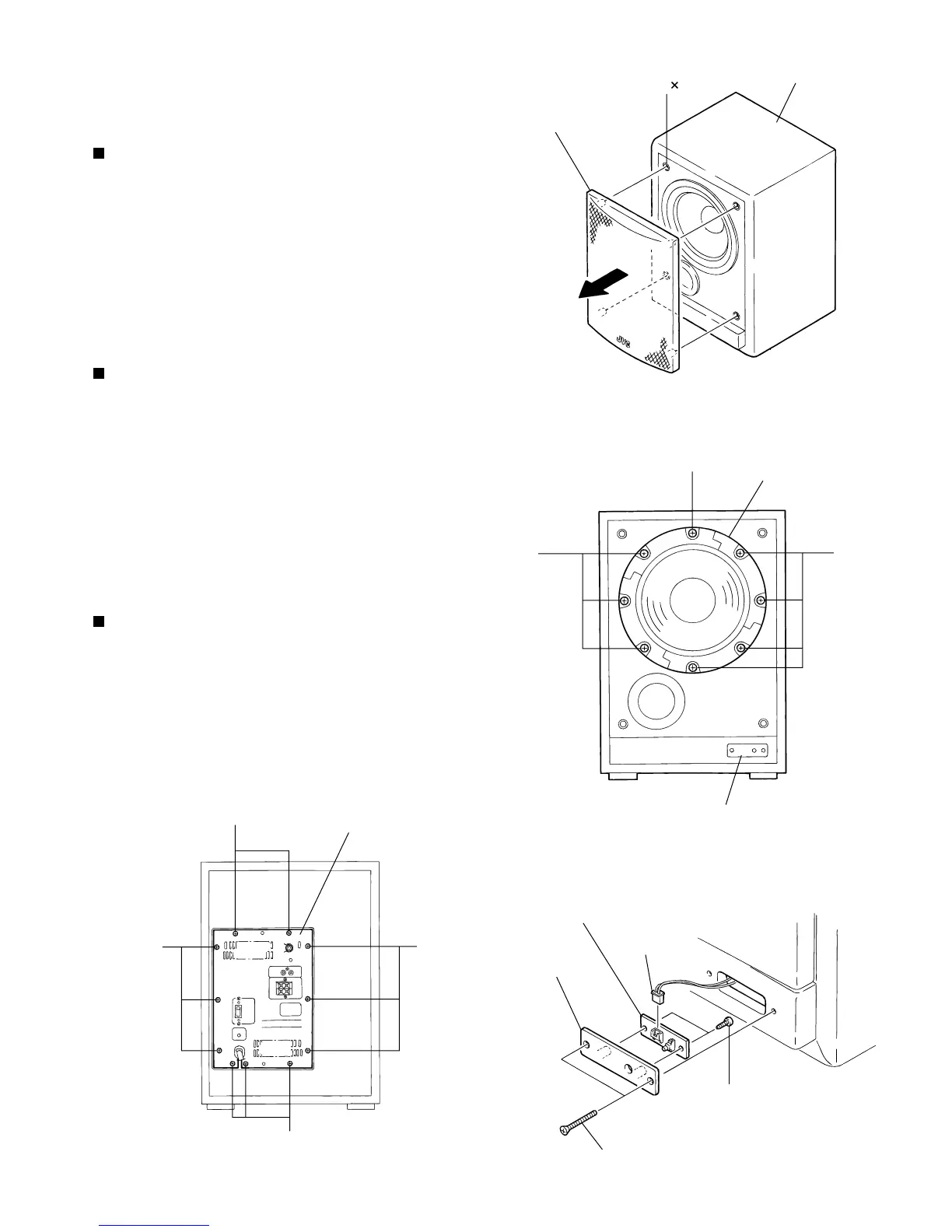

Fig.1
Fig.2
Fig.3Fig.4
Joint 4
Cabinet assembly
Saran board assembly
Speaker
A
A
A
LED indicator board assembly
Harness
LED indicator board assembly
Panel
B
C
Amplifier board
D
D
DD
