JVC SP-PW880 Service Manual

SP-PW880
1-5
Cut off the three bands fastening the harnesses
extending from the transformer assembly.
Disconnect the harness from connector CN891 on
the amplifier board assembly and from CN899 on the
power board assembly.
Remove the four screws K attaching the transformer
assembly.
1.
2.
3.

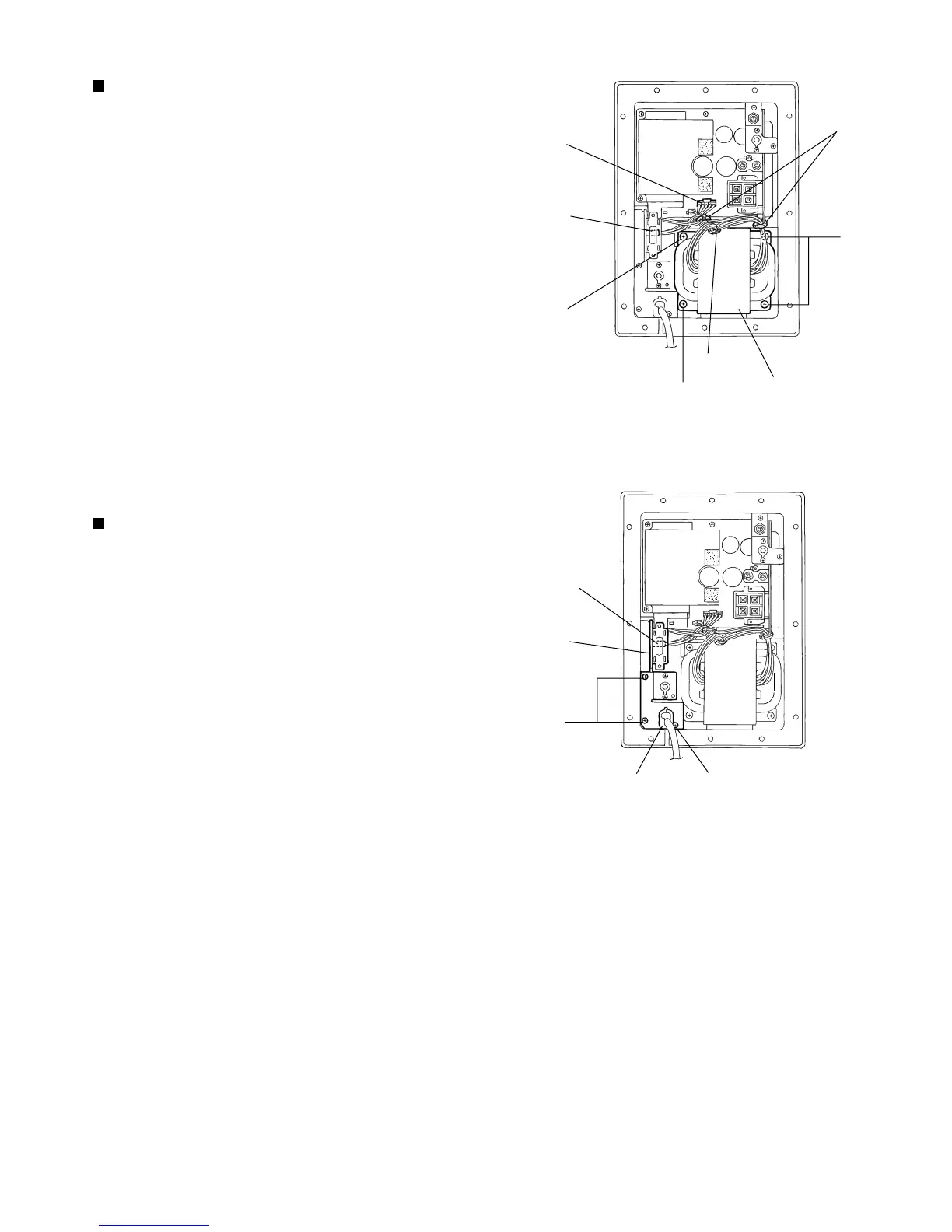

Removing the transformer assembly
(See Fig.9)
Disconnect the harness from connector CN899 on
the power board assembly.
Remove the three screws L assembly.
Remove the cord stopper.
1.
2.
3.
Removing the power board assembly
(See Fig.10)
Fig.9
Fig.10
Bands
Amplifier board
assembly
CN891
Band
Power board
assembly
CN899
K
Transformer assembly
K
K
CN899
Power board
assembly
Cord stopper
L
L
