3.3.15 Taking out the disc in the play mode

(See Fig.39 to 42)

Reference:

Refer to "Removing the tray assemblies".

(1) From the topside of the DVD changer mechanism assem-

bly, remove the top cover.

(2) Unlock the tray assemblies and draw out the tray assem-

blies toward the front.

(3) From the top side of the DVD changer mechanism assem-

bly, turn the gear 1 clockwise to move the lifter assembly

upward. (See Fig.39)

(4) Turn the gear 2 clockwise to move the sub tray remaining

inside the lifter assembly toward the front, then pull out.

(See Fig.39)

(5) Take out the disc on the sub tray. (See Fig.40)

(6) After clearing away the disc, insert the sub tray into the

main tray. (See Fig.41)

Caution:

When reattaching the sub tray, move the tray stopper on

the bottom of the main tray in the direction of the arrow

to lock the sub tray certainly. (See Figs.41 and 42)

(7) Push the tray assembly toward the body and reattach.

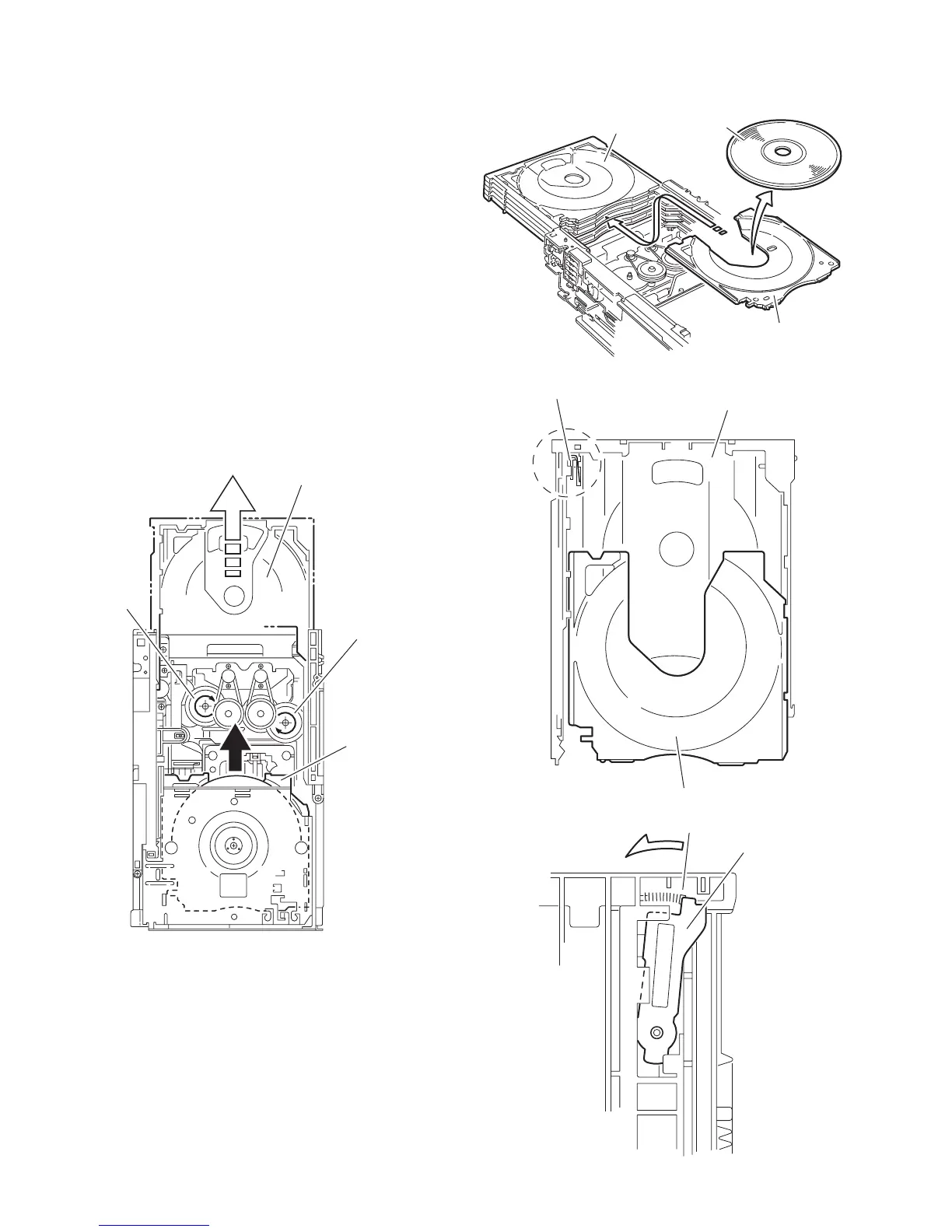

Fig.39

Fig.40

Fig.41

Fig.42

Sub tray

Gear 1

Tray assemblies

Gear 2

Tray assembly

Sub tray

Disc

Main tray

Sub tray

Tray stopper

Tray stoope
